Rockwell Automation 1785-Lx0E Ethernet PLC-5 Programmable Controllers Installation Instructions User Manual
Page 12
Publication 1785-IN063B-EN-P - January 2006
12 Ethernet PLC-5 Programmable Controllers
Enable/Disable HTTP Web Server

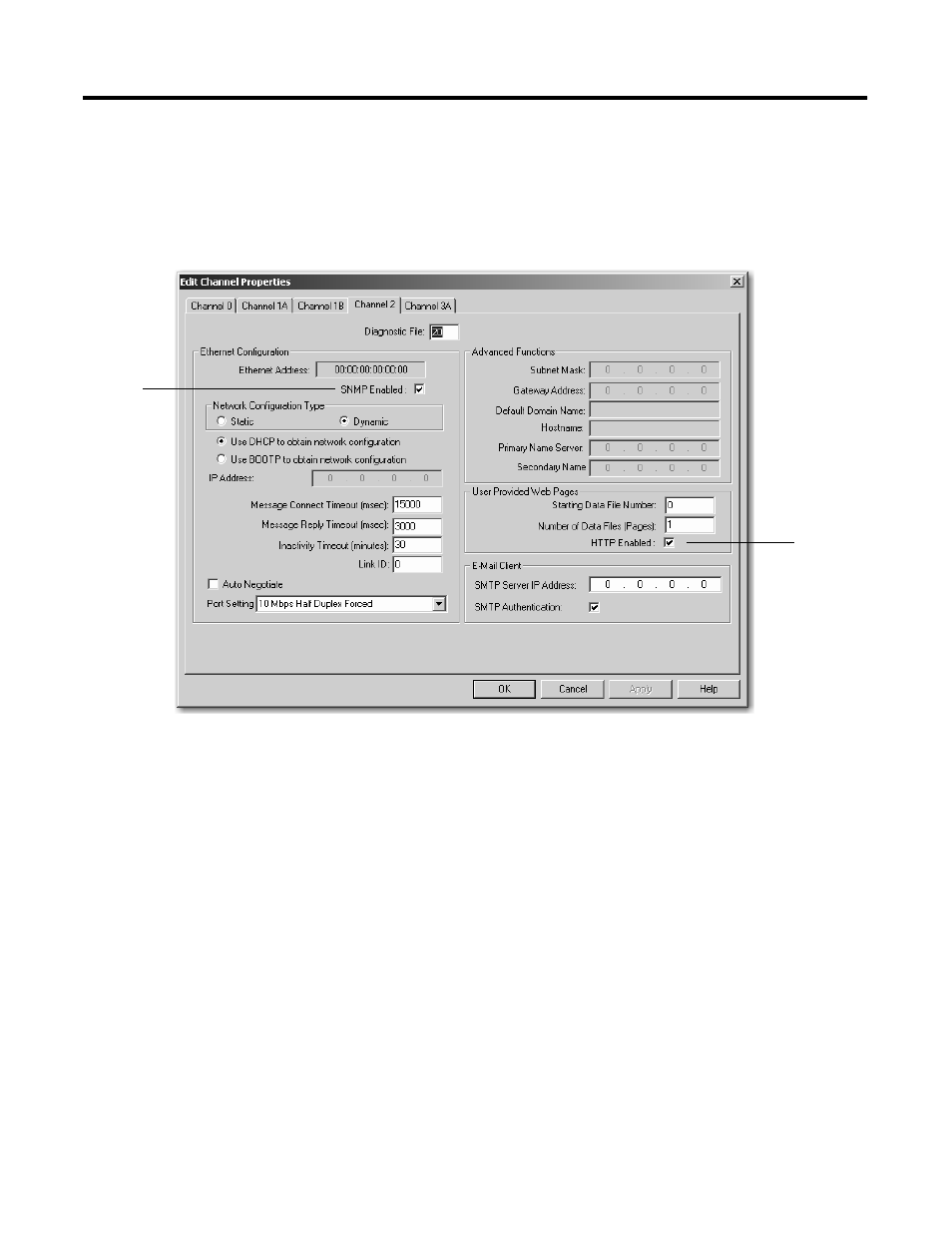

You can disable the HTTP web server functionality from within the Channel 2
Configuration by unchecking the HTTP Server Enable check box shown
below.
The default (checked box) lets you connect to the controller using a web
browser. Although this parameter can be downloaded to the controller as part
of a program download or changed and applied while online with the
controller, you must cycle power to the controller for the change to take affect.
Enable/Disable Simple Network Management Protocol (SNMP)
You can disable the controller’s SNMP functionality from within the Channel
2 Configuration by unchecking the SNMP Server Enable check box as shown
above.
The default (checked box) lets you connect to the controller using an SNMP
client. Although this parameter can be downloaded to the controller as part of
a program download or changed and applied while online with the controller,
you must cycle power to the controller for the change to take affect.
HTTP Server
Enabled
SNMP Server
Enabled
