24 Analog Encoder (AE) Servo Module
Publication 1756-IN047D-EN-P - March 2001
• field-side wiring of the RTB has been completed.
• the RTB housing is snapped into place on the RTB.
• the RTB housing door is closed.
• the locking tab at the top of the module is unlocked.
To install the removable terminal block onto the module:
1. Align the top, bottom, and left side guides of the RTB with the guides
on the module.

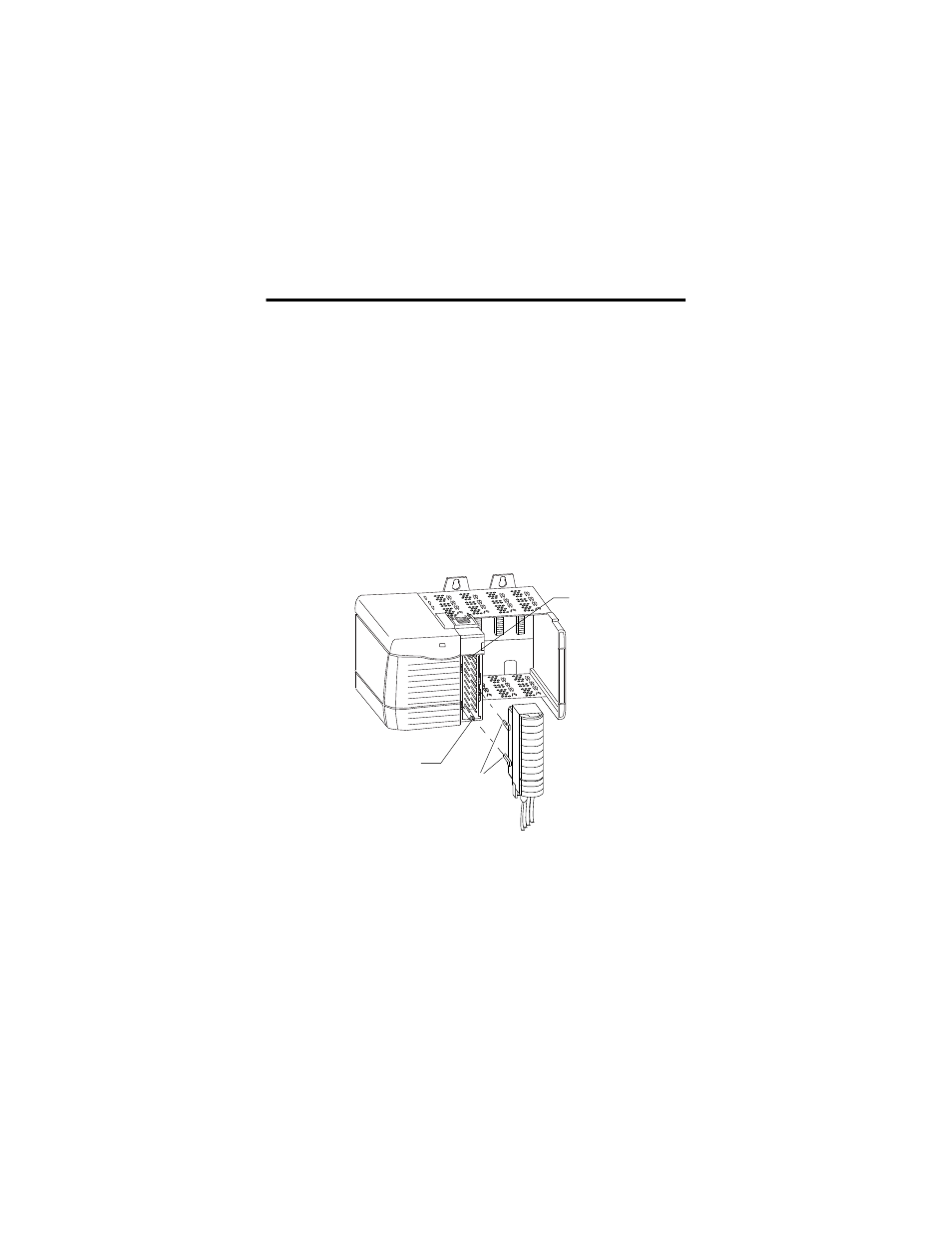

Figure 21 Aligning RTB
2. Press quickly and evenly to seat the RTB on the module until the
latches snap into place.
3. Slide the locking tab down to lock the RTB onto the module.
POWER
Top
guide
Bottom
guide Left side
guides
