22 analog encoder (ae) servo module – Rockwell Automation 1756-M02AE Analog Encoder (AE) Servo Module Installation Instructions User Manual
Page 22

22 Analog Encoder (AE) Servo Module
Publication 1756-IN047D-EN-P - March 2001

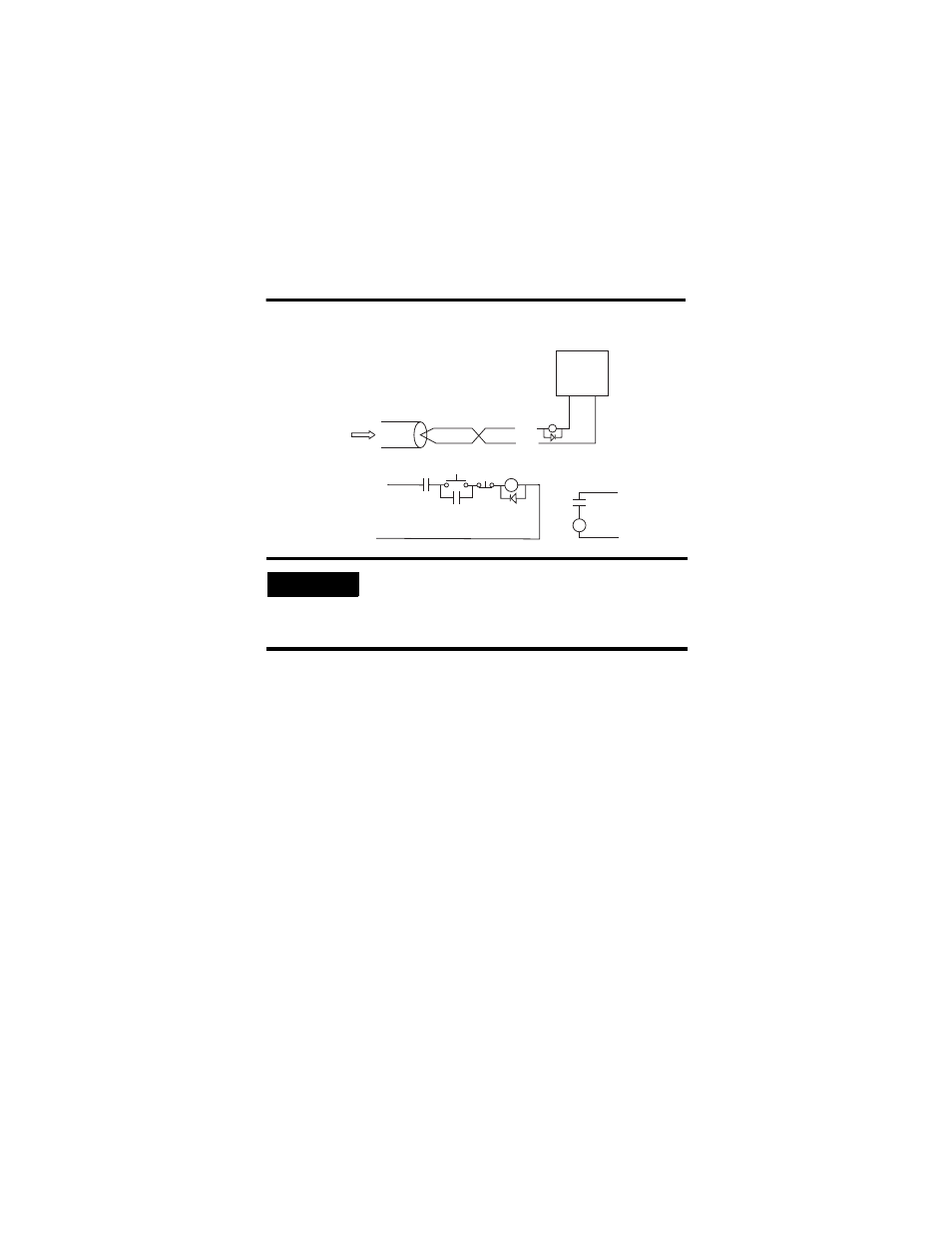

Figure 19 OK Relay Pilot Duty Application Wiring
Assembling the Removable Terminal Block and Housing
To assemble the removable terminal block and housing:
1. Align the grooves at the bottom of each side of the housing with the
side edges of the RTB.
2. Slide the RTB into the housing until it snaps into place
IMPORTANT
When the OK Relay is loaded with an inductive load,
use a counter-EMF suppression diode across the load.
The maximum rating of the OK relay contacts must not
exceed 60V DC.
24 VDC
Field Power
Supply
+OK
-OK
General Cable
C0720
From 1756-M02AE
+
-
OK Relay
OK Relay
Contacts
Start
CR1
Stop
CR1
CR1
M1
+
-
24 VDC
Field Power
Supply
To User's circuitry
+OK
-OK
