ControlNet Communication Interface Card

Publication 1784-5.33 – September 1997

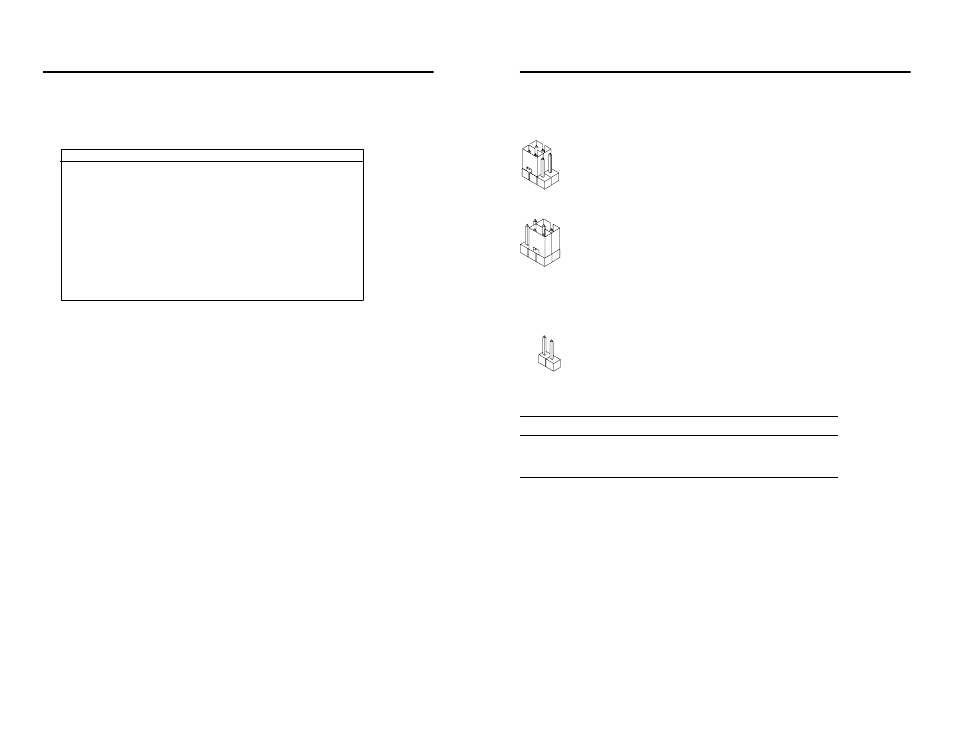

Figure 2
Series B Jumper Explanations

Use these jumper positions for:
– normal card operation
– field flash upgrade of the card’s main code

Use these jumper positions for field flash upgrade of the
card’s boot code.

IMPORTANT: All other E1 and E2 jumper combinations are illegal.
Unknown card operation will result.

When installed, use this jumper to latch certain address lines
that some 286 and older machines may not latch.

If you have this computer:

then:

286-based or older

you may need to install this jumper

386-based or newer

these address lines are usually latched
in the computer and, thus, the jumper is
not usually required

ControlNet Communication Interface Card

Publication 1784-5.33 – September 1997

5. Press any key.

You see a window similar to this one:

MSDOS a:\KTCINSTNT.EXE

Success... Hard resetting card
Success... Starting cards processor
Success... Attempting to locate DualPort address...

Found at 0Xd0000

Success... Searching for version mailbox

bootcode version: 2.1 3/17/97
Serial#: 2222 <8AE>
Main Code Version 99.60 4/29/97

Success... Testing Mail Boxes
Waiting... Soft Resetting the KTCX15 as network

address ID8. Press any key.

6. Press any key. You see a similar message:

Waiting... Setting KTCX to online. Press any key.

7. Press any key.

You see a similar message:

Success... Setting KTCX to online. KTCX LEDs should show flashing red.

Waiting... Setting KTCX to offline. Press any key.

Flashing red LEDs indicate that the card can communicate on a network, if
it’s connected to a network.

8. Press any key.

You see a similar message:

Success... Setting KTCX to offline. KTCX LEDs should show flashing green.

Waiting... Resetting KTCX. Press any key.

Alternate green and red LEDs indicate that your card reset successfully.

If this test fails, make certain that you are not connected to a network.
Contact your local Rockwell Automation sales representative or distributor,
or Rockwell Automation Technical Support at (440) 646-6800.
