10 ControlNet Communication Interface Card
Publication 1784-5.33 – September 1997

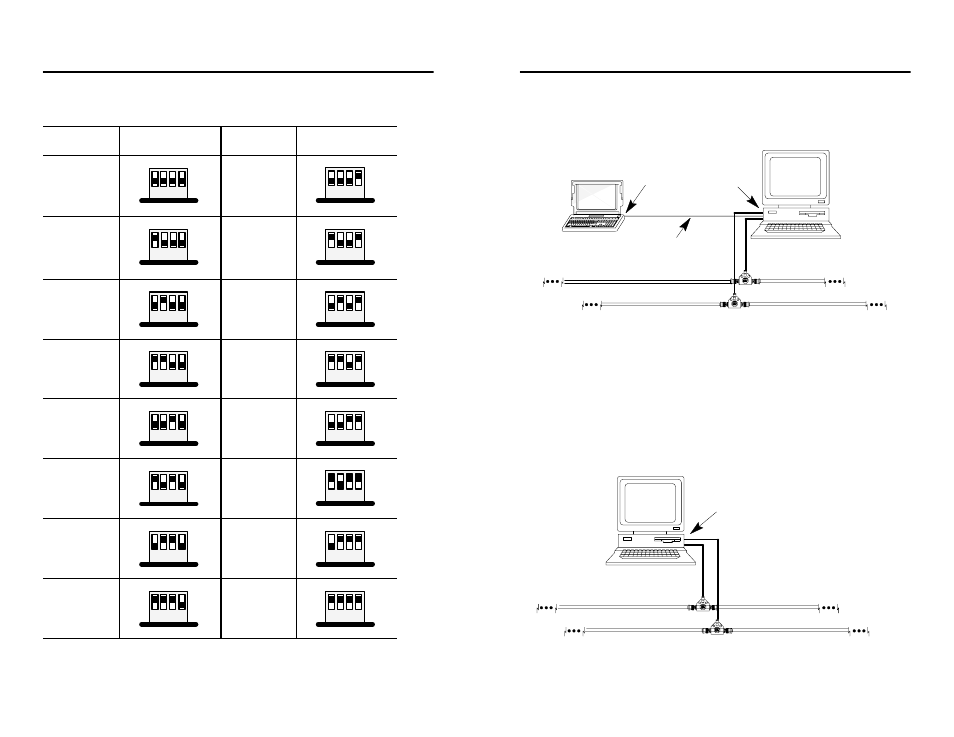

Worksheet D
KTCX15 switch settings
Base I/O Address
(hex)
Switch Settings Base I/O Address
(hex)
Switch Settings
200
potential device
conflict: game port
up (1)
down (0)
1 2 3 4
300
potential device
conflict:
prototype cards
up (1)
down (0)
1 2 3 4
220
factory-set default
address &
recommended setting
up (1)
down (0)
1 2 3 4
320
potential device
conflict: HDD
up (1)
down (0)
1 2 3 4
240 up (1)
down (0)
1 2 3 4
340 up (1)
down (0)
1 2 3 4
260 up (1)
down (0)
1 2 3 4
360 up (1)
down (0)
1 2 3 4
280 up (1)
down (0)
1 2 3 4
380
potential device
conflict: SDLC
up (1)
down (0)
1 2 3 4
2A0 up (1)
down (0)
1 2 3 4
3A0
potential device
conflict: SDLC
up (1)
down (0)
1 2 3 4
2C0
potential device
conflict: EGA
up (1)
down (0)
1 2 3 4
3C0
potential device
conflict: EGA
up (1)
down (0)
1 2 3 4
2E0
potential device
conflict: GPIB
up (1)
down (0)
1 2 3 4
3E0 up (1)
down (0)
1 2 3 4
ControlNet Communication Interface Card 27
Publication 1784-5.33 – September 1997
Figure 6
Connecting a portable host computer to ControlNet through a
desktop host computer
portable
host
computer
1784-KTCX15 1784-KTCX15
desktop
host
computer
ControlNet network
1786-CP cable
Connecting the Card Directly to the ControlNet Network
To connect the card directly to a ControlNet network as shown below, follow the
instructions in these publications:
•
ControlNet Tap Installation Instructions, publication 1786-5.7
•
ControlNet Cable Planning and Installation Manual, publication 1786-6.2.1
1784-KTCX15 desktop
host
computer
ControlNet network
1786-TPR, -TPS, -TPYR, or -TPYS tap
