Field service considerations – Rockwell Automation 1403-NSC Smart Communication Card Instruction Sheet User Manual
Page 7
7
Smart Communications Card
Publication 1403-5.1

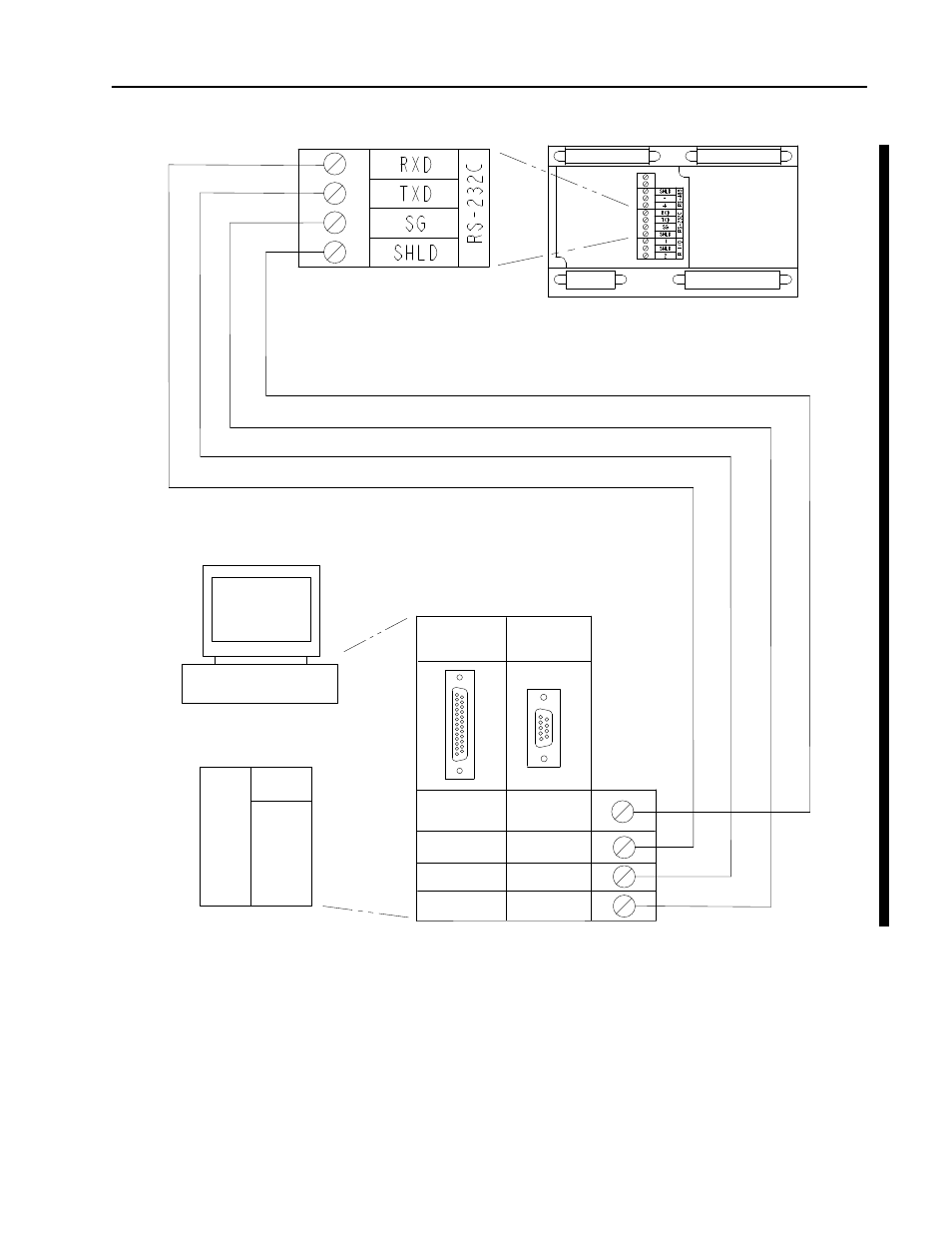

Figure 7. RS-232C Wiring
IBM PC
PLC PROCESSOR
1
3
2
7
CASE
GROUND
2
3
5
25 PIN
D–SHELL
9 PIN
D–SHELL
Powermonitor
II
Note:
For CE compliance, the communication cable shield must
be connected directly to the chassis ground terminal
located on the communication card cover plate. The
exposed shield wire should be as short as possible.
Field Service Considerations
If the Smart Communications Card requires service,
please contact your nearest Allen-Bradley Sales Office.
To minimize your inconvenience, the initial installation
should be performed in a manner which makes
removal easy.
