Installing Your 1394 Drive Interface Module 7
Publication 1394-5.12 — December 1999

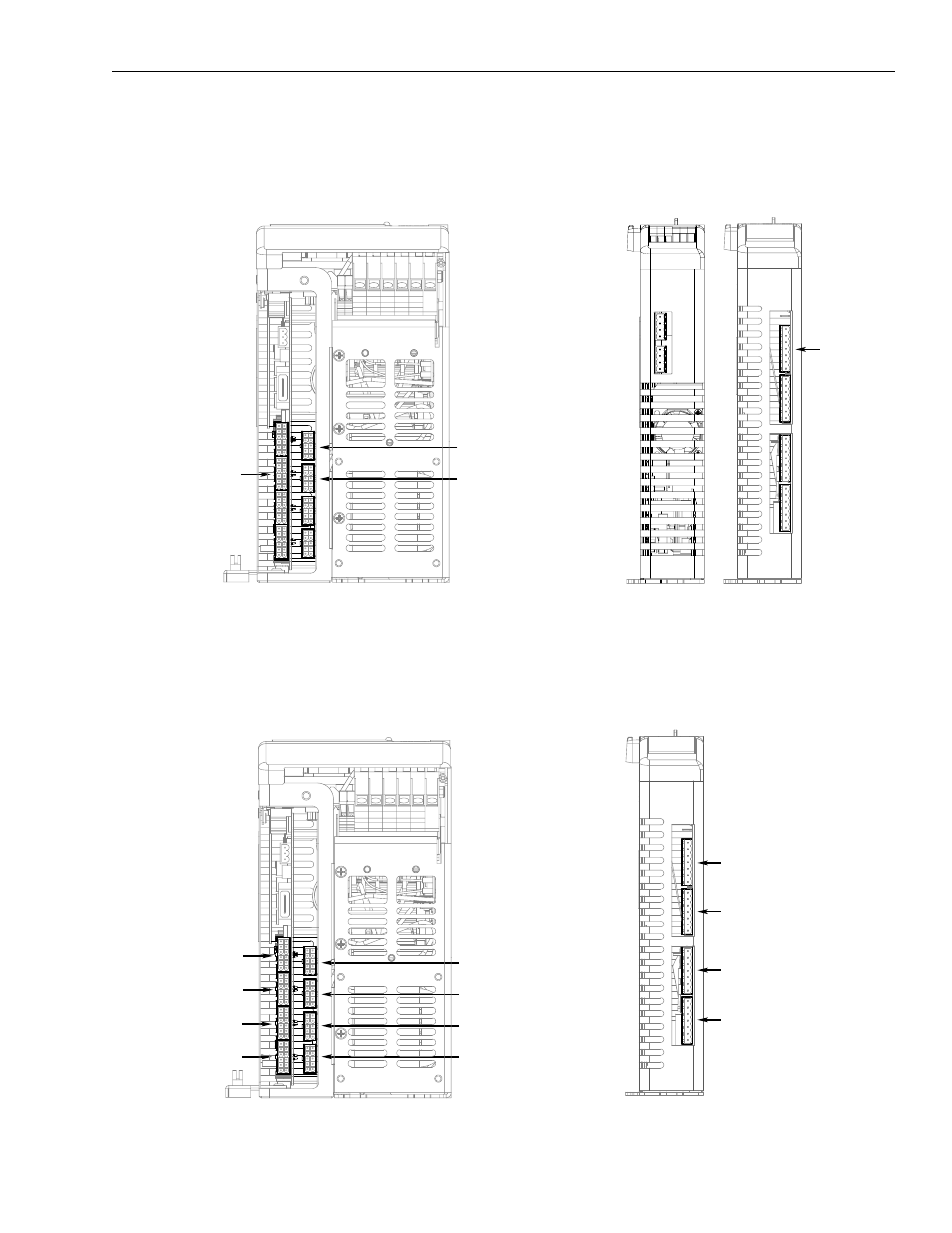

The example below shows one 1394 axis and one DIM output axis.
Figure 10
1394-DIM with Single Axis Module
The example below shows no 1394 axes and four DIM output axes.
Figure 11
1394-DIM Not Connected to Axis Module
Axis 1 (J4)
Auxillary Encoder Input
Axis 0 (J5)
Motor Resolver Feedback Input
Axis 1 (J6)
1394 DIM Plug
DIM Axis A
Axis 1 on 1394
Axis 0
1394 GMC or GMC Turbo System 1394x-AMxx 1394-DIM
1
7
Axis 2 (J5)
Auxillary Encoder Input
Axis 3 (J10)
Auxillary Encoder Input
Axis 0 (J5)
1394 DIM Plug
Axis 1 (J6)
1394 DIM Plug
Axis 2 (J7)
1394 DIM Plug
Axis 3 (10)
1394 DIM Plug
DIM Axis A
Axis 0 on 1394
DIM Axis B
Axis 1 on 1394
Axis 0 (J3)
Auxillary Encoder Input
Axis 1 (J4)
Auxillary Encoder Input
DIM Axis C
Axis 2 on 1394
DIM Axis D
Axis 3 on 1394
1394 GMC Turbo System 1394-DIM
1
7
1
7
1
7
1
7
