4 Installing Your 1394 Drive Interface Module
Publication 1394-5.12 — December 1999
Mounting Your 1394-DIM
To mount your 1394-DIM hardware:
1. Install the top mounting fastener on the system panel. The head of
the fastener must be at least 0.25 inches from the panel.
2. Hang the 1394-DIM on the top mounting fastener.
Important: The 1394-DIM must be the last (or right-most)
module in the 1394 system.
3. Engage the alignment tabs, as shown in the figure below.

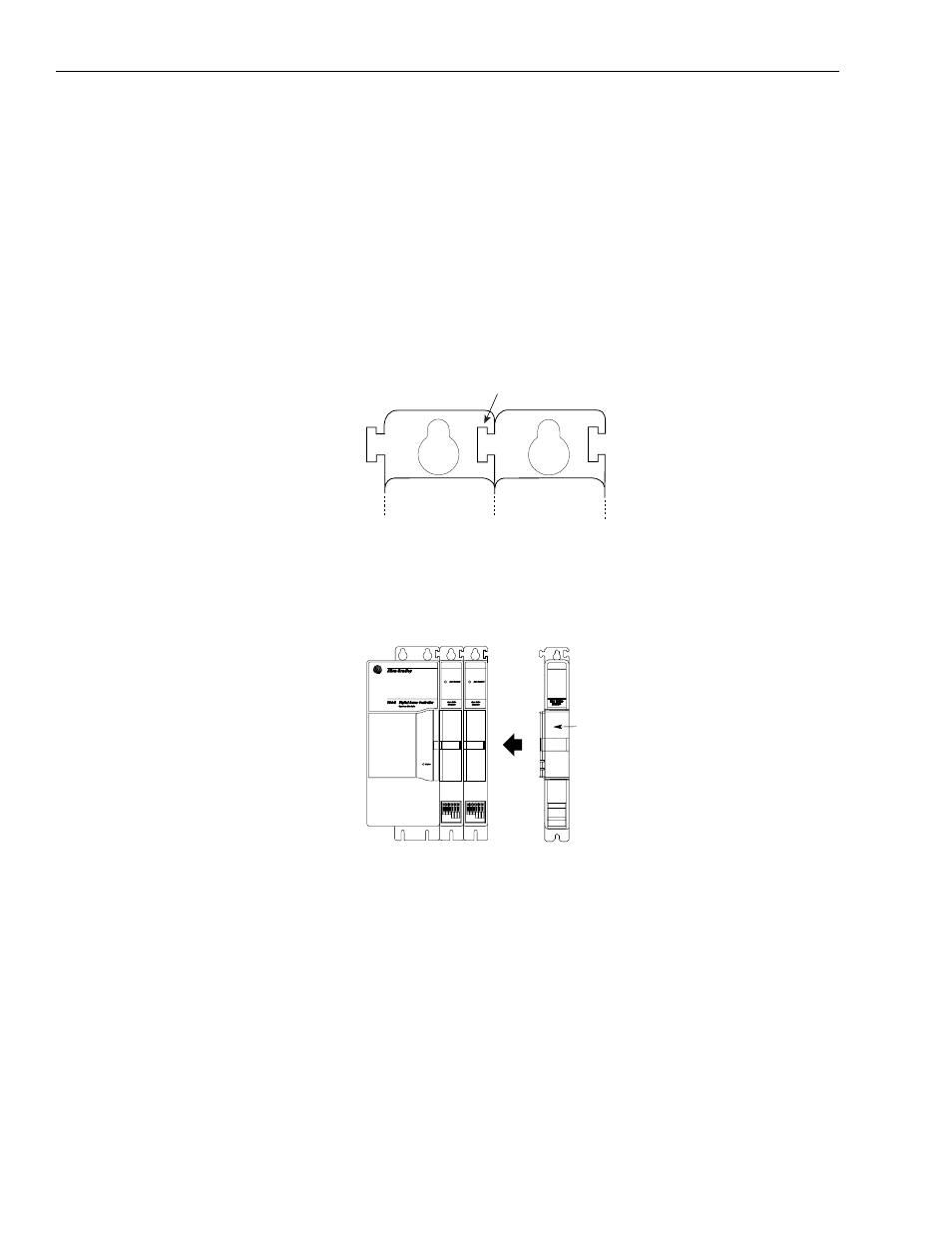

Figure 5
Engaging the Alignment Tab
4. Slide the slide-and-lock mechanism on the 1394-DIM to the left
until it locks into place, as shown in the figure below.
Figure 6
Attaching the Slide-and-Lock Mechanism
Engaged alignment tab
Slide-and-lock
mechanism
