6 Installing Your 1394 Drive Interface Module
Publication 1394-5.12 — December 1999
For example, if your 1394 system includes three 1394 axis modules,
the 1394-DIM can control only one external drive and axis. Refer to
the table below for configuration combinations.
Important: You can add only one 1394-DIM to a 1394 system.
Important: The system requires 360/480V AC three-phase input
power to run, even if the 1394-DIM is configured for
four external drives.
Configuration Examples
The following examples show a variety of ways to incorporate the
1394-DIM into a 1394 GMC/GMC Turbo System. The examples
show the input connections located on the bottom of a typical 1394
system and a 1394-DIM.
The example below shows two 1394 axes and two DIM output axes.

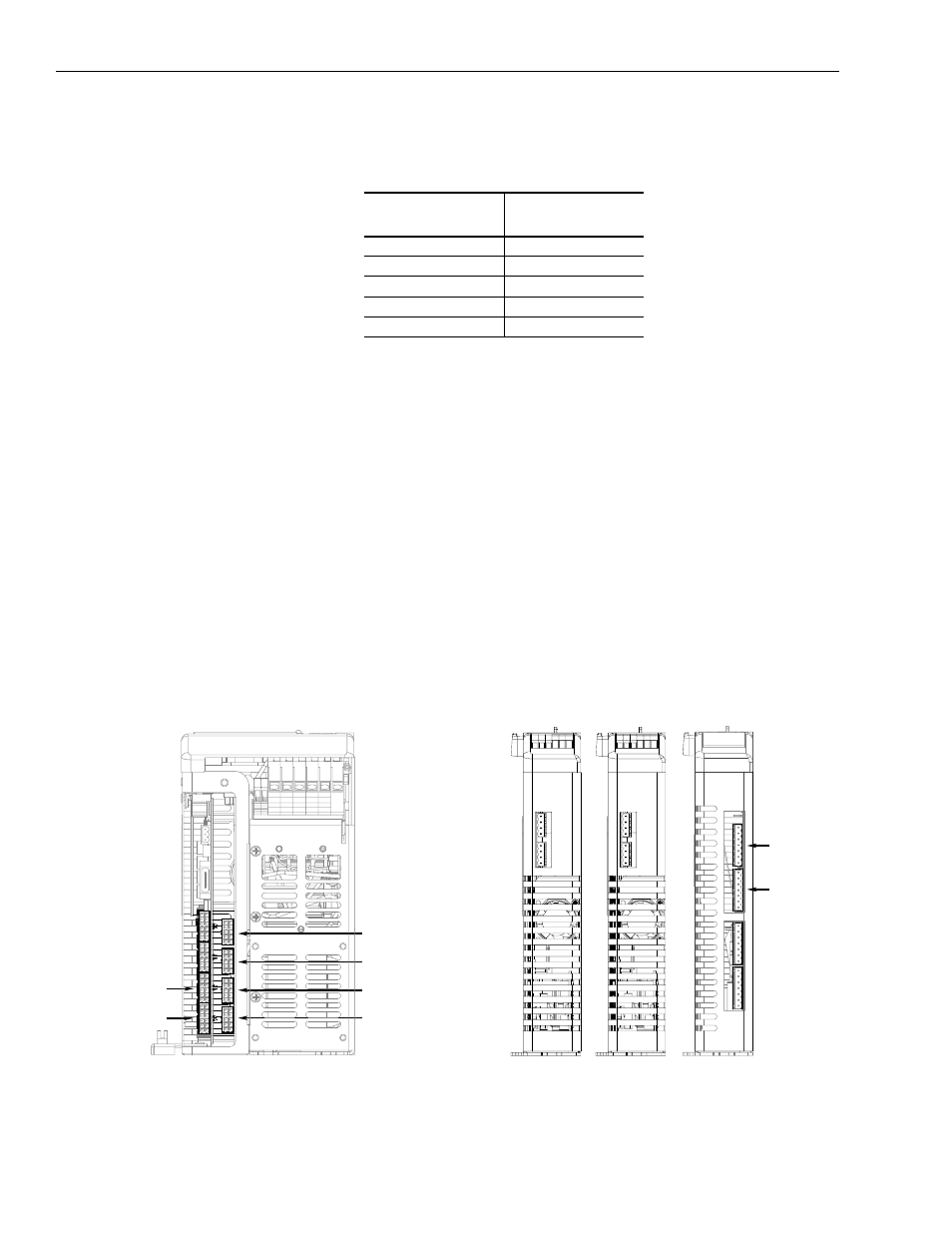

Figure 9
1394-DIM with Multiple Axis Modules
Number of 1394 axes:
Maximum number of
DIM-controlled axes:
4 0
3 1
2 2
1 3
0 4
Axis 2 (J5)
Auxillary Encoder Input
Axis 3 (J10)
Auxillary Encoder Input
Axis 0 (J5)
Motor Resolver Feedback Input
Axis 1 (J6)
Motor Resolver Feedback Input
Axis 2 (J7)
1394 DIM Plug
Axis 3 (J10)
1394 DIM Plug
DIM Axis A
Axis 2 on 1394
DIM Axis B
Axis 3 on 1394
Axis 0 Axis 1
1394 GMC or GMC Turbo System 1394x-AMxx 1394x-AMxx 1394-DIM
1
7
1
7
