Connections to drive – Rockwell Automation 1395 Discrete Adapter, Rev 3.XX-8.XX User Manual
Page 16

Chapter 4
Installation
4-3

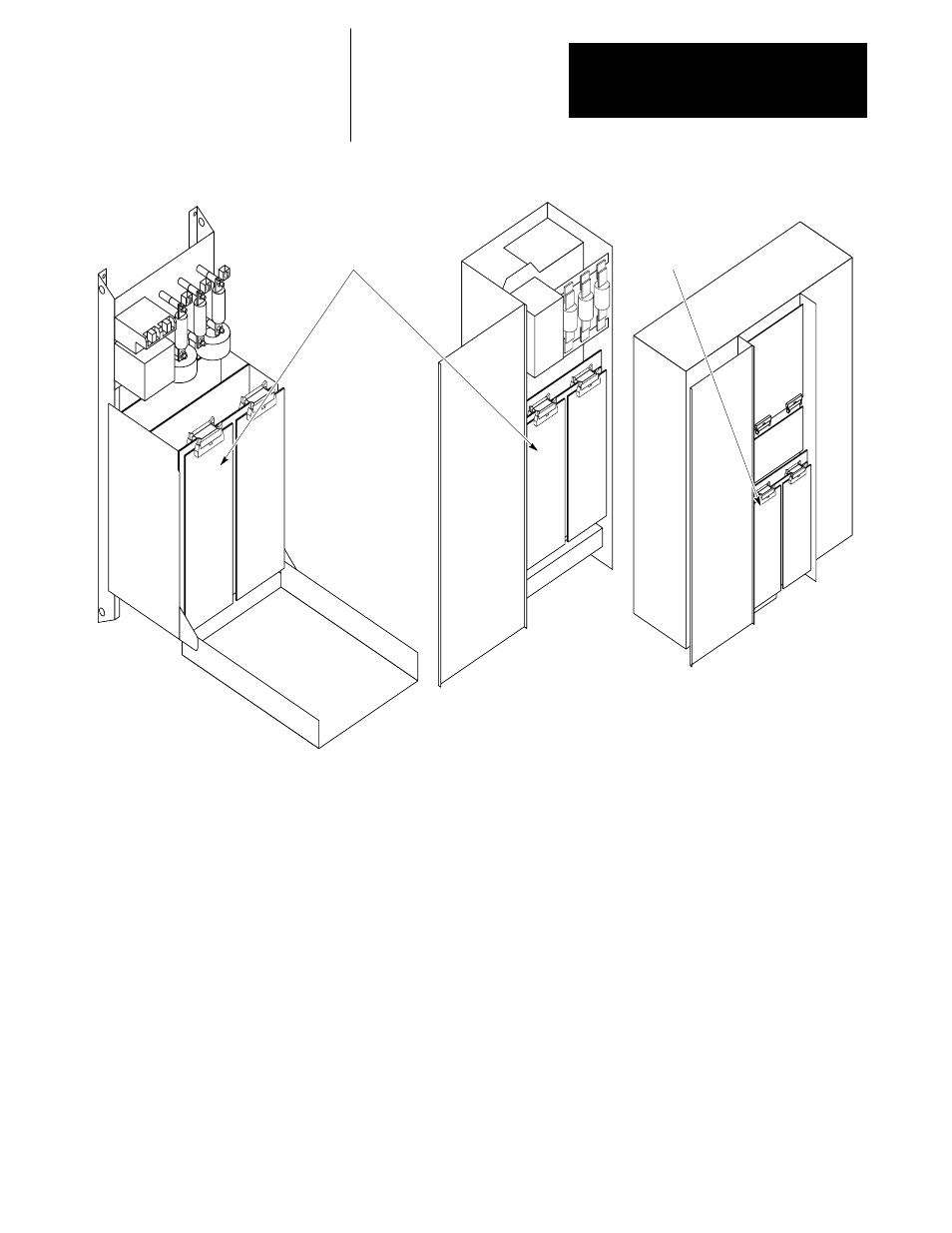

Figure 4.1
Discrete Adapter Board Location
AB0727A
Discrete
Adapter Board
Discrete
Adapter Board
1Ć30 HP, 230VAC
2Ć60 HP, 460VAC
40Ć100 HP, 230VAC
75Ć200 HP, 460VAC
125Ć300 HP, 230VAC
250Ć600 HP, 460VAC
Connections to Drive
The Discrete Adapter Board can be connected to either Microbus Port A or
B on the Drive through a ribbon cable connector J1 located at the top of the
board. Connection to TB3 is made through two connectors, J3 and J4.
Looking into the Drive, Port A is located on the left side, and Port B is
located on the right as seen in
Figure 4.2
. The parameters used to configure
the Drive depend upon which port is utilized.
