All parameters are specified at an input voltage of 24V, 10A output load, 25°C ambient and after a 5 minutes run-in time unless noted otherwise.
It is assumed that the input power source can deliver a sufficient output current.
2
Rockwell Automation Publication 1606-RM013A-EN-P — March 2014
Bulletin 1606 Switched Mode Power Supplies

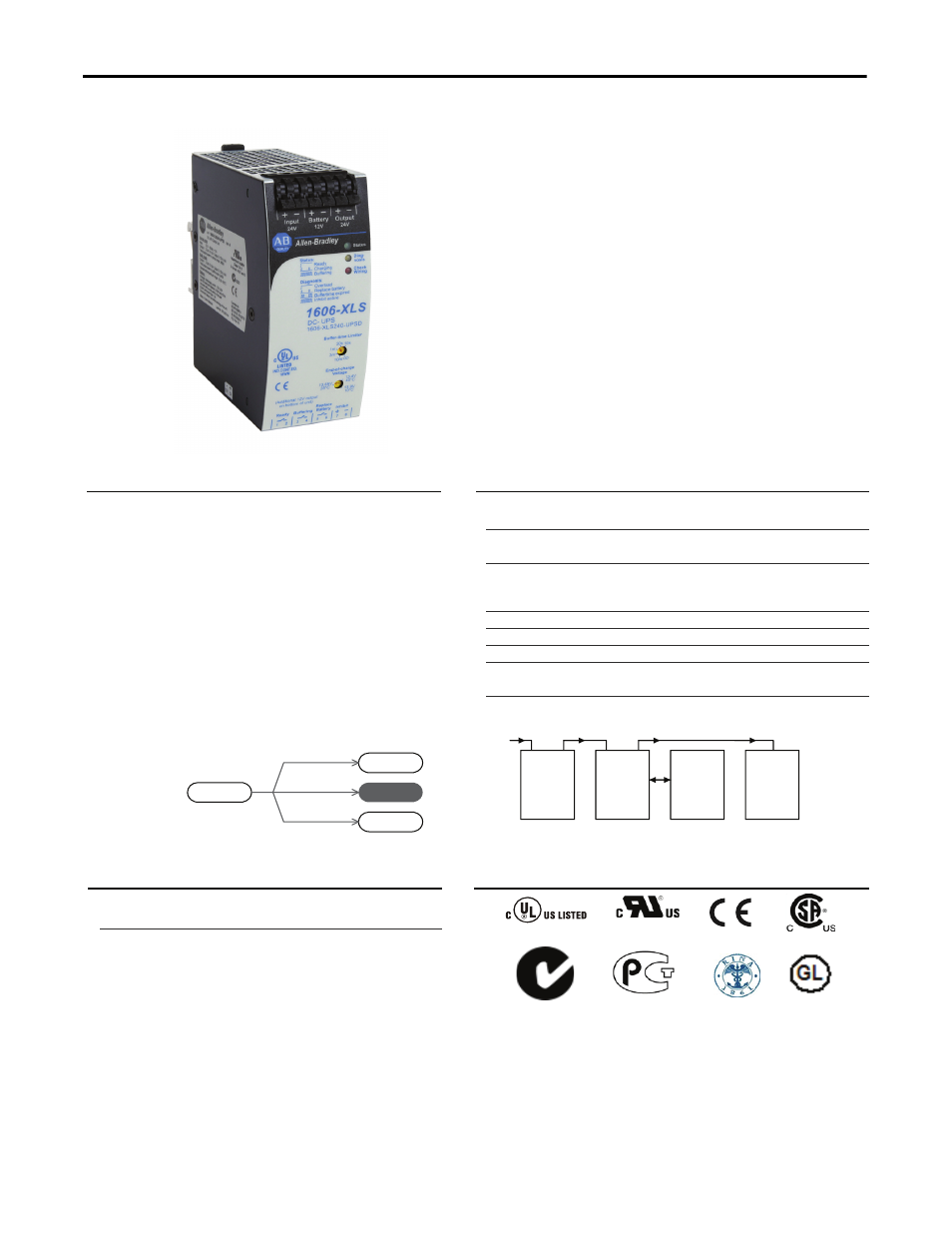

DC-UPS Control Unit
■
Requires Only One 12V Battery for a 24V Output
■
Allows Batteries Between 17Ah and 130Ah
■
Battery Charging with Temperature Tracking
■
Stable Output Voltage in Buffer Mode
■
Superior Battery Management for Longest Battery Life
■
Comprehensive Diagnostic and Monitoring Functions
■
Replace Battery Signal Included
■
Electronically Overload and Short Circuit Protected
■
50% Power Reserves
■
3 Year Warranty
1. Description
2. Specification Quick Reference
Input voltage
nom. 24Vdc
range
22.5-30Vdc
Output current
min.15A
Normal mode
min. 10A
Buffer mode
Output voltage
typ. 0.23V lower
as input voltage
Normal mode
22.25V
Buffer mode, 10A
Allowed batteries
17Ah to 130Ah
VRLA lead acid
Temperature range
-25 to +50°C
Dimensions 49x124x117mm
WxHxD
Buffer time (at 10A)
typ. 55 minutes
26Ah battery
typ. 4 hours
100Ah battery
This uninterruptible power supply (UPS) controller
1606-XLS240-UPSE is an addition to standard 24V
power supplies to bridge power failures or
emergency systems which must be kept fully in
operation for e.g. 72 hours.
The DC-UPS includes an internal temperature sensor
and a professional battery management system
which charges and monitors the battery to achieve
the longest battery service life as well as many
diagnostic functions that ensure a reliable operation
of the entire system.
A unique feature of the 1606-XLS240-UPSE is that only
one 12V battery is required to buffer the 24V
output.
This makes matching batteries unnecessary
and allows a precise battery charging and testing.
1606-XLS240-UPS
1606-XLS240-UPSD
1606-XLS240-UPSC
1606-XLS240-UPSE
battery
included
1606-XLS240-UPS Series
Related products
larger
battery sizes
additional
12V output
Typical setup of a DC-UPS system:
24V
Power
Supply
12V
Battery
24V
DC-UPS
24V
Load
AC
e.g.:
DC
e.g.: PLC
3. Catalog Numbers
4. Certification Marks
DC UPS
1606-XLS240-UPSE
Controller
Accessories 1606-XLSBAT2
Battery module 12V 26Ah
1606-XLSBATBR23
Mounting kit w/o battery
IND. CONT. EQ.
UL 508
UL 60950-1
EMC, LVD
1606-XLB
Panel/Wall mount bracket
UL 508
Marine
Marine RINA
GOST R
C-Tick
