All parameters are specified at an input voltage of 24V, 10A output load, 25°C ambient and after a 5 minutes run-in time unless noted otherwise.
It is assumed that the input power source can deliver a sufficient output current.
Rockwell Automation Publication 1606-RM013A-EN-P — March 2014 19
Bulletin 1606 Switched Mode Power Supplies
26. Accessories
Battery Modules
One pre-assembled battery module with a single 12V battery is available. As an option, the mounting bracket is also
available without battery. This option offers more flexibility in selecting an approriate battery or can save shipping and
logistics costs. See individual datasheets for detailed information.
1606-XLSBATASSY2
Battery type High current version12V, 26Ah VRLA lead-acid maintenance free battery
Service life 10 to 12years According to EUROBAT guideline
Dimensions 214x179x158mm Width x height x depth
Weight 9.9kg
DIN Rail mountable no
Order number 1606-XLSBATASSY2 Battery module
1606-XLSBATBR2 Mounting bracket without battery
1606-XLSBAT2 Replacement battery only

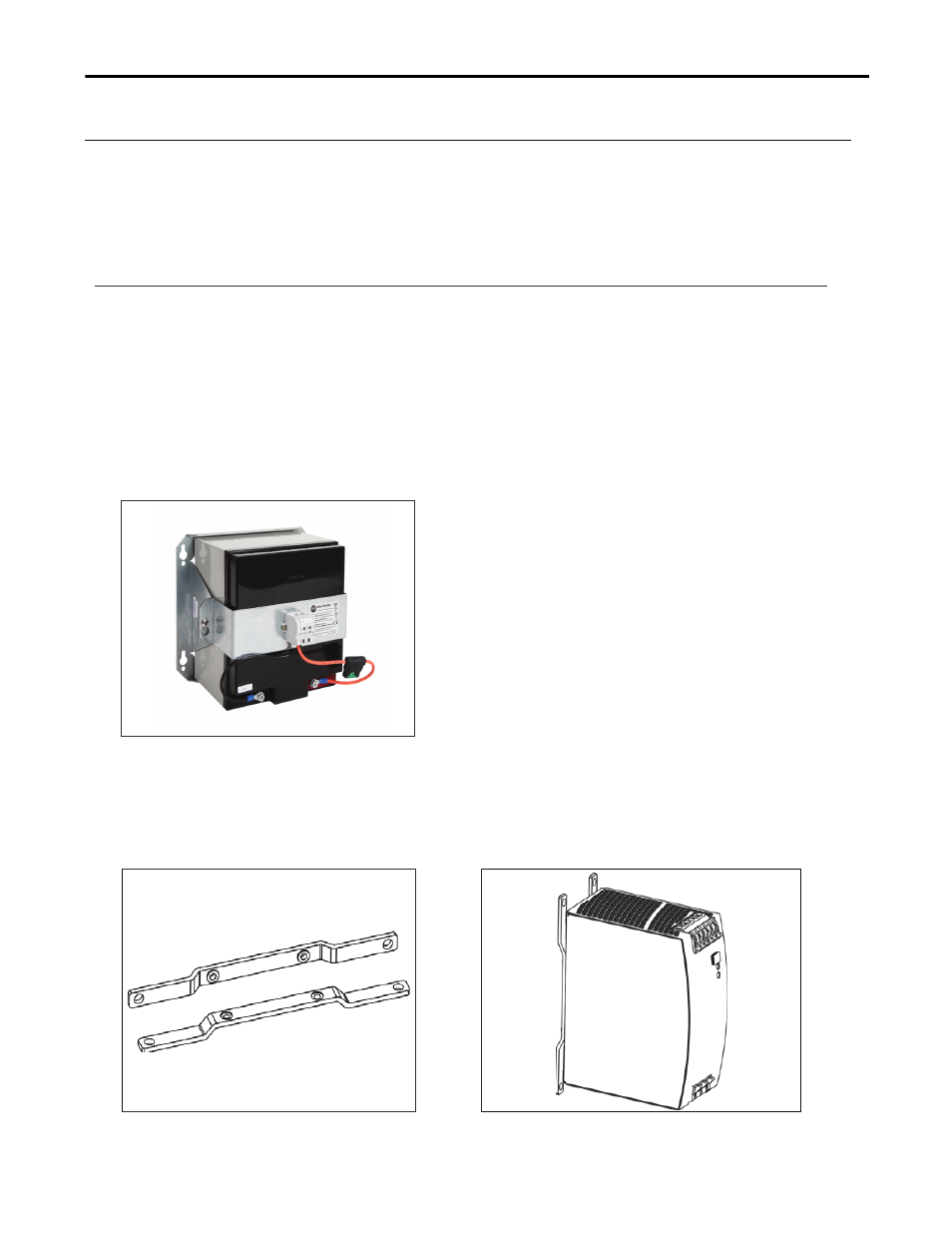

Fig. 27-1
1606-XLSBATASSY2
1606-XLB Wall / Panel mounting bracket
Use this bracket to mount the DC UPS units onto a flat surface without using a DIN rail. Both the aluminium brackets and the
black plastic slider of the DC UPS must be removed so that the two surface brackets may be mounted.
Fig. 26-2 1606-XLB Wall / Panel Mounting Bracket Fig 26-3 Assembled Wall / Panel Mounting Bracket
