Original instructions mounting stand – Rockwell Automation 445L Installation and Operating Instructions User Manual
Page 19
Muting Controller Box Installation and Operating Instructions
19
R
Original instructions

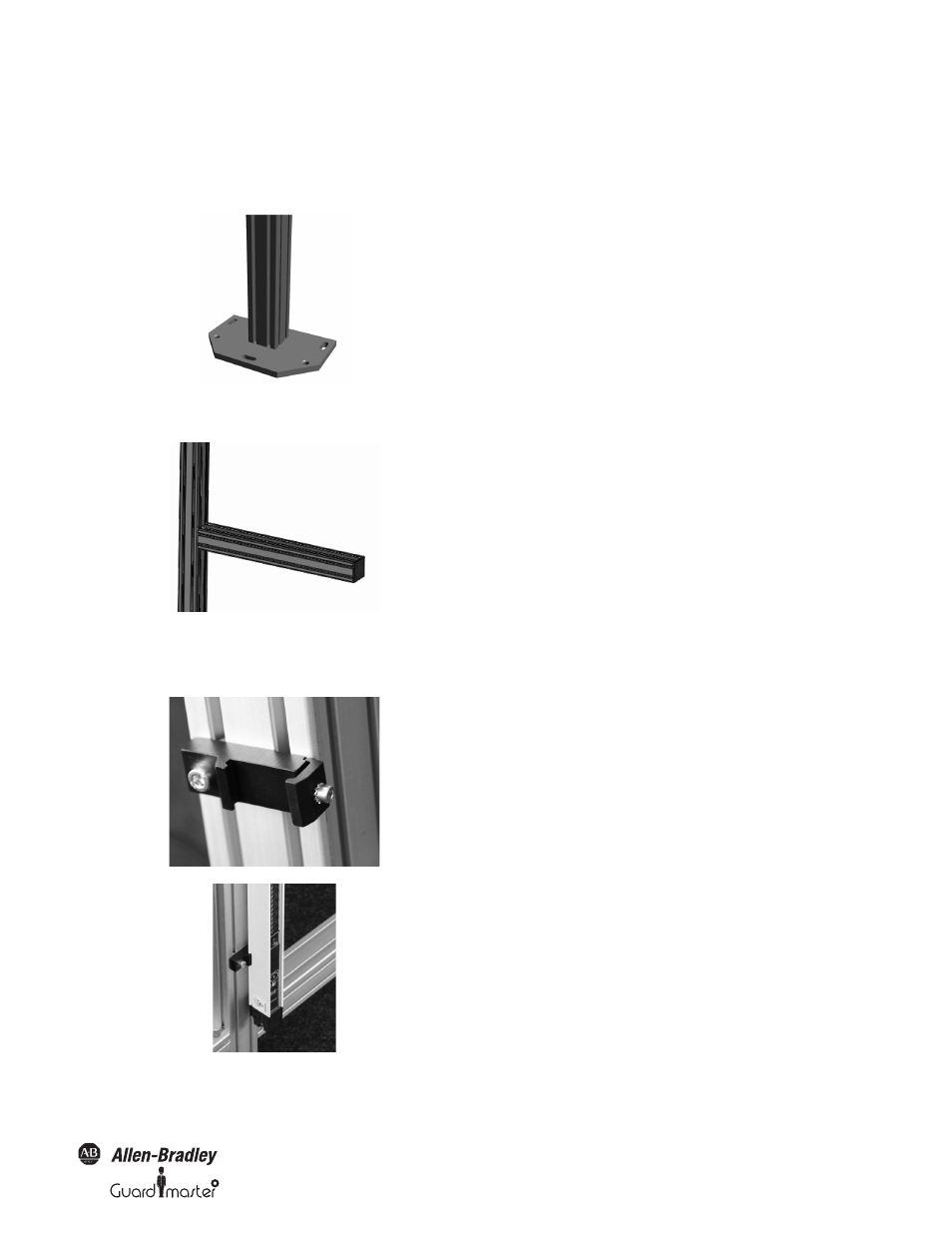

Mounting Stand
Mounting Column (basic instructions, see installation instructions supplied with 445L-AMSTD2M kit)
Step 1: Assemble floor plate to two meter post.
Step 2: Attach muting sensor post(s) according to desired muting type
Step 3: Attaching light curtain brackets
GuardShield Safe 2/Safe 4
Mount the mounting column onto the floor plate.
See mounting stand installation instruction
Check for front side positioning of the column (see picture). Check
the sliding nuts position for light curtain, sensor bar, and controller
box.
Attach bars (e.g., two sensor muting)
T-slot nut and screws are included with the floor mounting column.
The mounting brackets are included with the safety light curtain.
Premount the mounting kits on the T-slot
Before mounting the light curtain, check for height position and
cable exit (bottom or top).
