GuardShield™ Micro 400 Safety Light Curtain User Manual
29
Original instructions

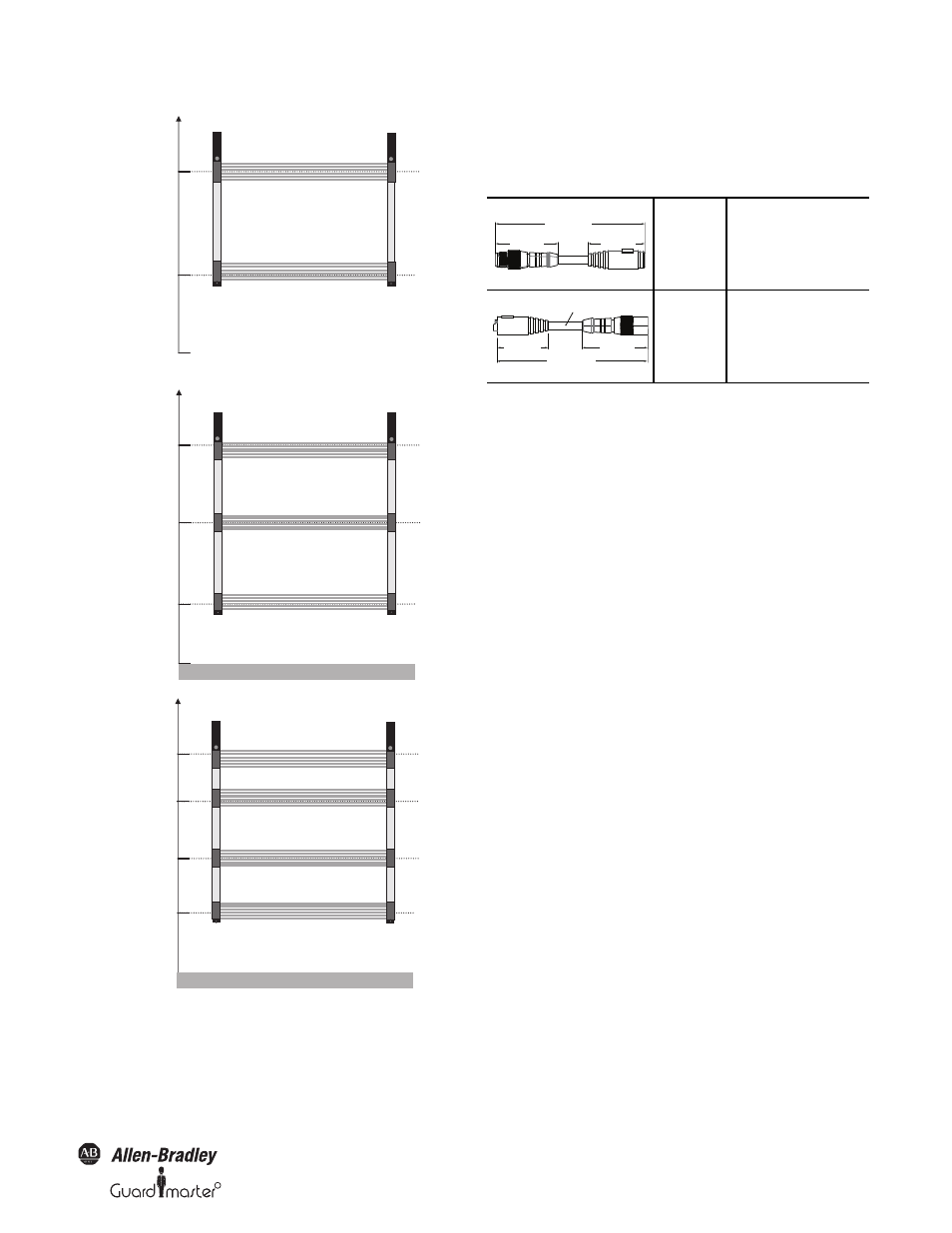

Figure 25: Perimeter systems (2-, 3-, and 4-beams), according to EN ISO 13855 [2010]
Special Patchcords
All GuardShield Micro 400 light curtains have actually M12/8-pin
connector. Special patchcords might be necessary to replace
older connector versions:
Table 11:
Special Systems
Besides the standard lengths given in “Technical Specifications”
on page 20 Rockwell Automation also offers some special lengths
and configurations. For those systems, longer lead time might be
expected.
The mentioned response times (*) are maximum values. The times
depend on the controller type and the configuration. The real
response time may be faster. Please obtain the exact response
time from the MSR42 "Configuration software."
400
900
Reference plane (e.g. ground)
0
300
1100
Reference plane (e.g. ground)
0
700
300
1200
Reference plane (e.g. ground)
0
600
900
Distance to reference plane [mm]
Distance to reference plane [mm]
Distance to reference plane [mm]
445L-ACDN9M12
Patchcord, 8 Pin, Din9/female to M12/
male
445L-109296
Patchcord, 8 Pin, Din9/male to M12/
female
120 (4.72) ±10
45.5 (1.79)
50.2 (1.98)
120 (4.72) ±10
40.5 (1.59)
52.1 (2.05)
Cable
