Rockwell Automation 20B Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10 User Manual
Page 8

8
Rockwell Automation Publication 20B-IN028B-EN-P - August 2014
Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10

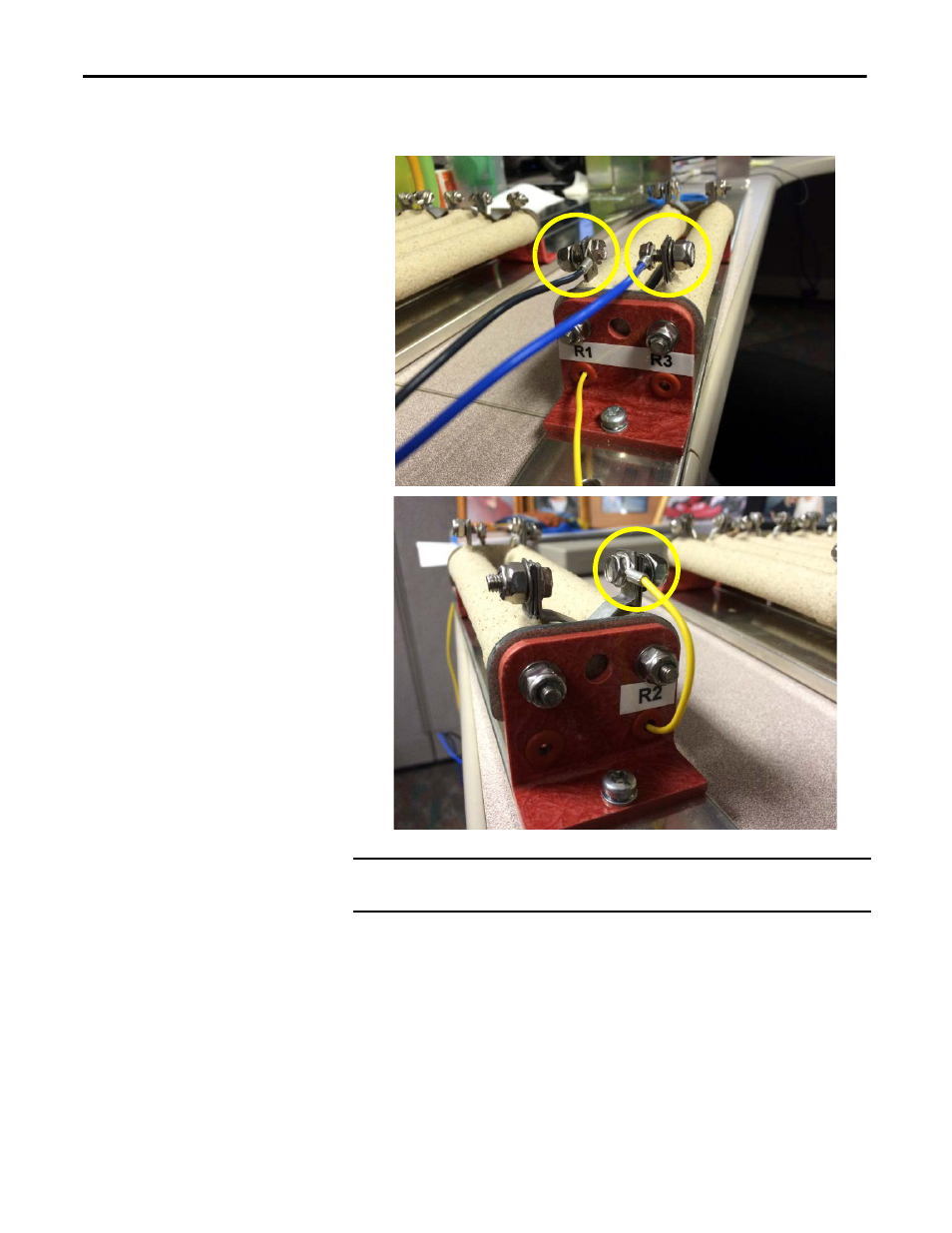

2. Verify the rating of the resistors to be sure there was no damaged during
shipment (R1 to R2 = R2 to R3 = 6.8 k
Ω ±5%).
3. Remove the shield from the drive.
IMPORTANT
Do not install the resistor if the measurement is not within the recommended
range.
This manual is related to the following products:
- SK-G1-CBRB1-F910 Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10 SK-G1-RB1-F910 Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10 SK-G1-CBRB1-F8 Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10 SK-G1-RB1-F8 Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10
