Rockwell Automation Publication 20B-IN028B-EN-P - August 2014 5
Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10

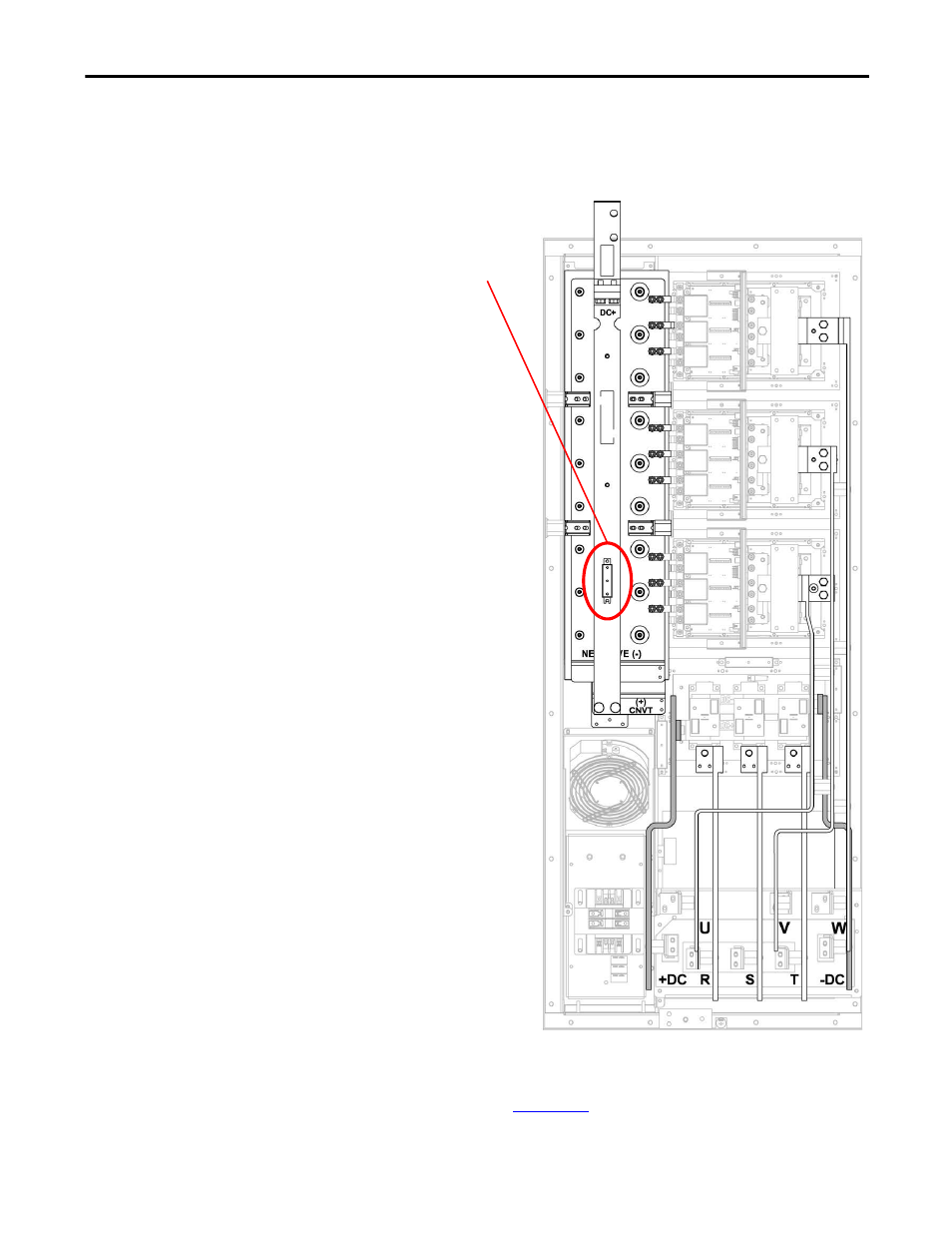

Locating the Balancing Resistor on a Frame 9 PowerFlex 700 Drive
This illustration shows the location of the balancing resistor on a frame 9 AC
input drive. The location of the resistor is the same on a frame 9 DC input drive.
For more information about replacing components on frame 9 PowerFlex 700
drive, see PowerFlex 700 Drive - Frame 9 Components Replacement Installation
Instructions, publication
20B-IN025 .
Balancing Resistor
