Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10
Locating the Balancing Resistor on a Frame 10 PowerFlex 700 Drive

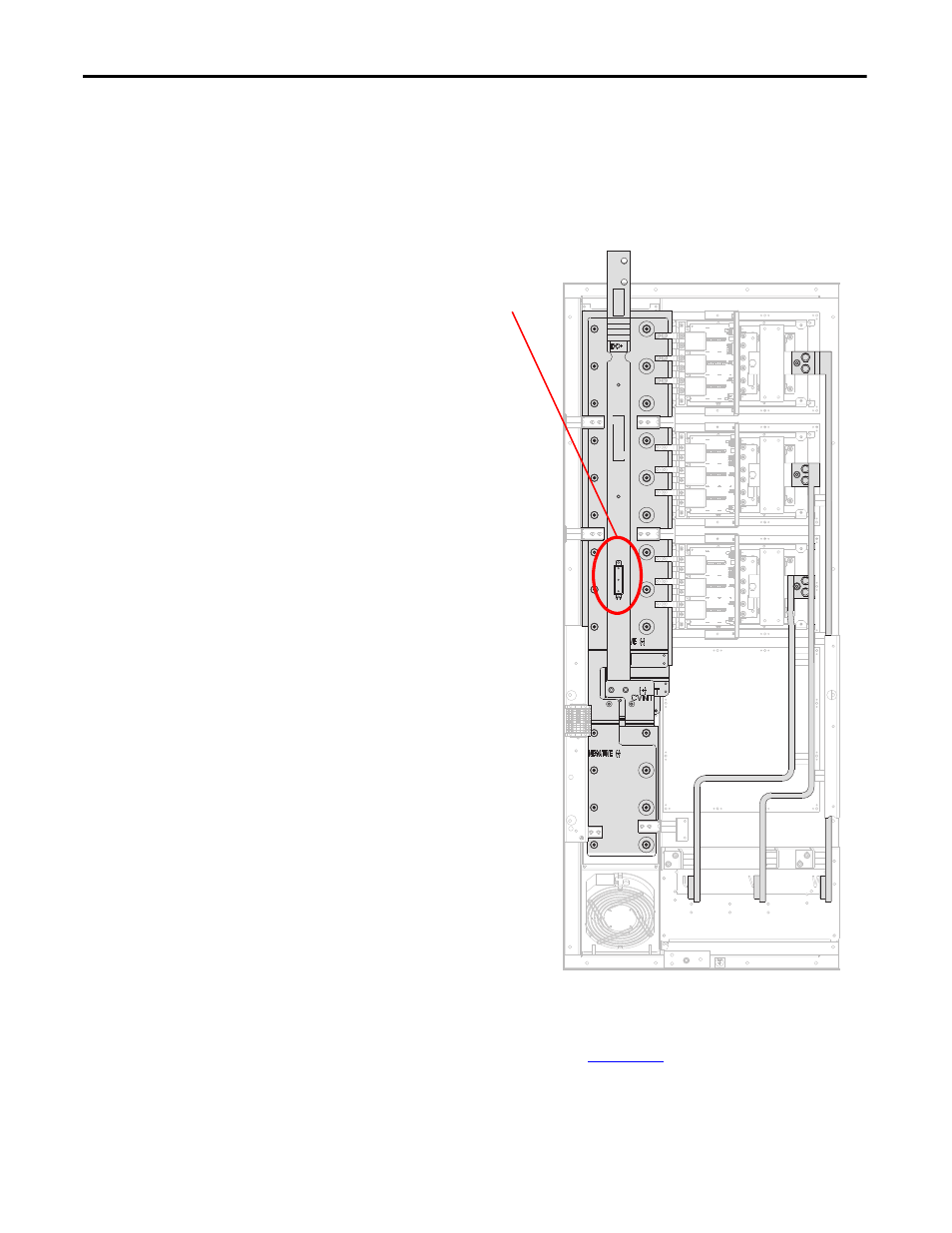

This illustration shows the location of the balancing resistor on both the AC and
DC input versions of a frame 10 drive. The inverter is common to both the AC
and DC input drives.
For more information about replacing components on a frame 10 PowerFlex 700
drive, see PowerFlex 700 Drives - Frame 10 Components Replacement
Installation Instructions, publication
20B-IN026 .
Inverter Assembly
Balancing Resistor
