Rockwell Automation 20B Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10 - Manual (Page 16)

16 Rockwell Automation Publication 20B-IN028B-EN-P - August 2014
Replacing a Balancing Resistor on a PowerFlex 700 Drive, Frames 8, 9, and 10

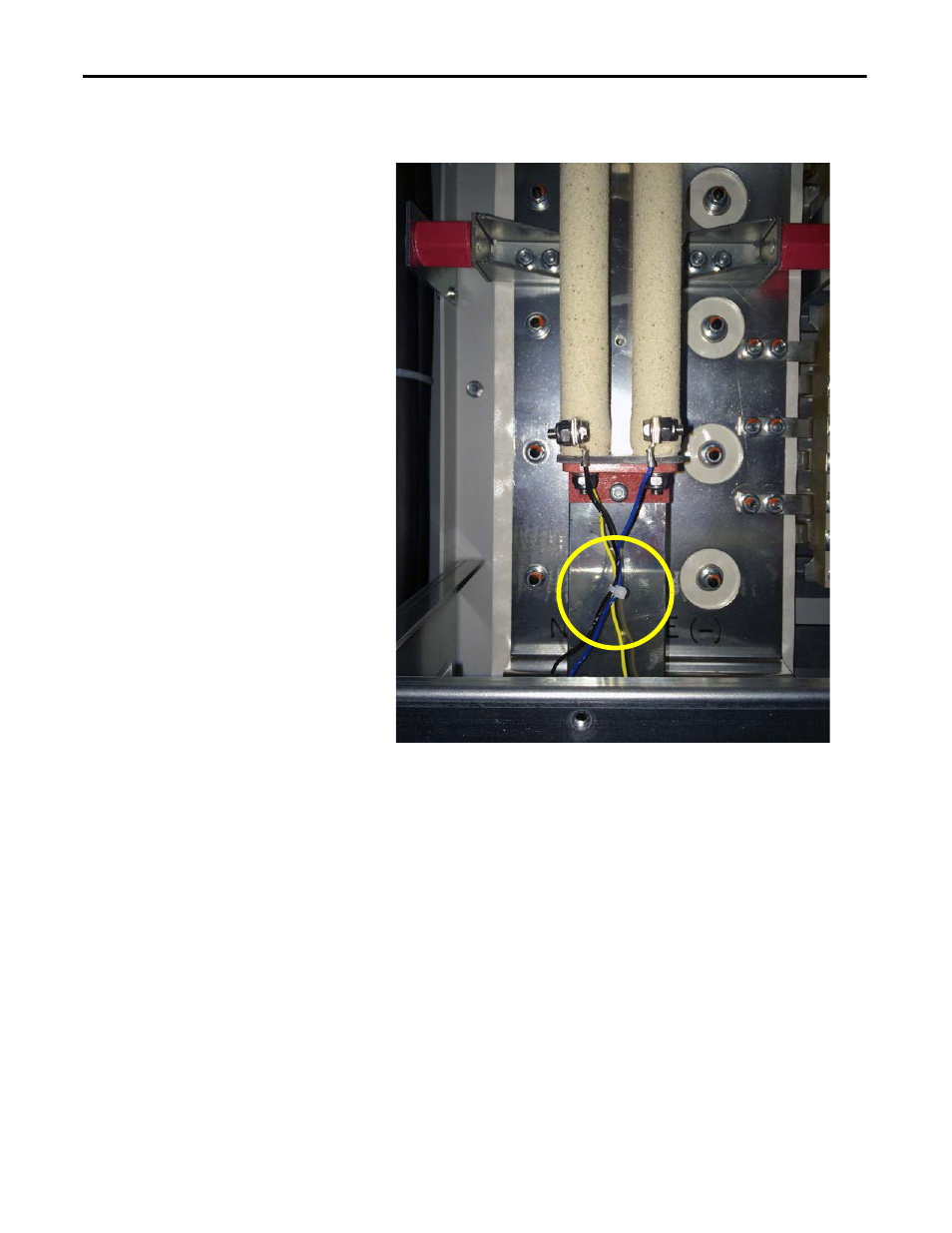

14. Secure the resistor wire bundle below the assembly using tie-wraps (as
shown in the following image).
15. Re-install the shield on the drive.
