USG C2 Paired Compasso Channels User Manual
Page 7

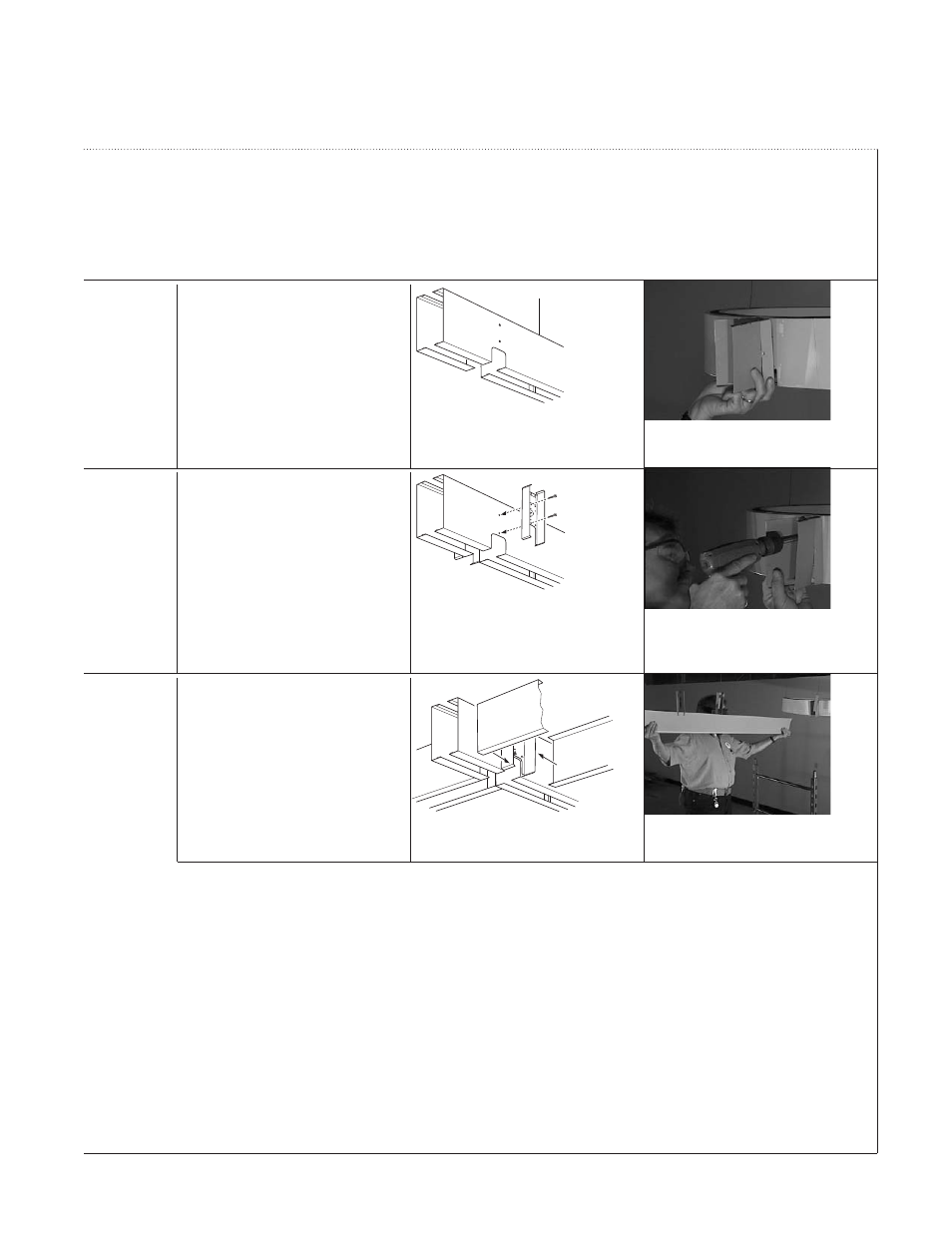

Intersection
Installation
Step 1
Align intersection notches as the paired
channels are snapped onto the hanger
brackets.
Step 2
Attach a hanger bracket to the face of the
notched C
OMPÄSSO
channel using number-10
by one-half-inch metal screws.
For a through-intersection, attach a hanger
bracket on each channel.
Step 3
Snap the intersecting channels onto the
hanger brackets and secure the channels
to maintain a good connection throughout
installation.
Page 7 of 12
