Wall termination – USG C2 Paired Compasso Channels User Manual
Page 11

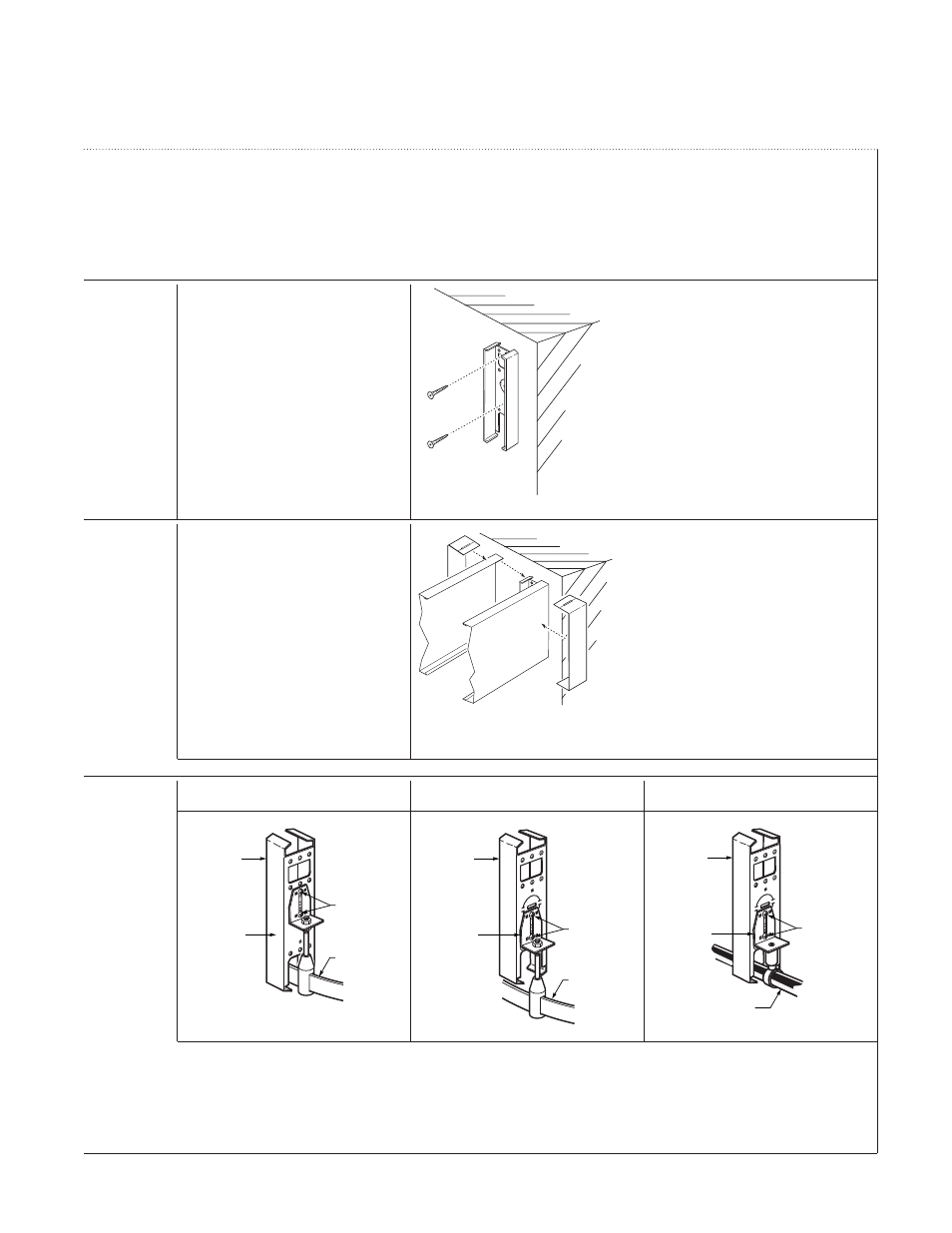

Step 1
Attach a hanger bracket to the wall face
with appropriate fasteners.
Step 2
Snap the C
OMPÄSSO
Channels onto the
hanger bracket. Splice covers can be
used to cover any slight gaps or uneven
field cuts.
Special
Accessory angle used to install flexible
Accessory angle used to install flexible
Accessory angle used to install neon lighting
Installations
rail lighting with a concealed rail
rail lighting with an exposed rail
Page 11 of 12
Wall Termination
neon lighting
(not a USG product)
hanger bracket
accessory angle
screws
hanger bracket
accessory angle
screws
rail lighting
(not a USG product)
hanger bracket
accessory angle
screws
rail lighting
(not a USG product)
