INTRODUCTION
HG7 I, O, & M Manual
19

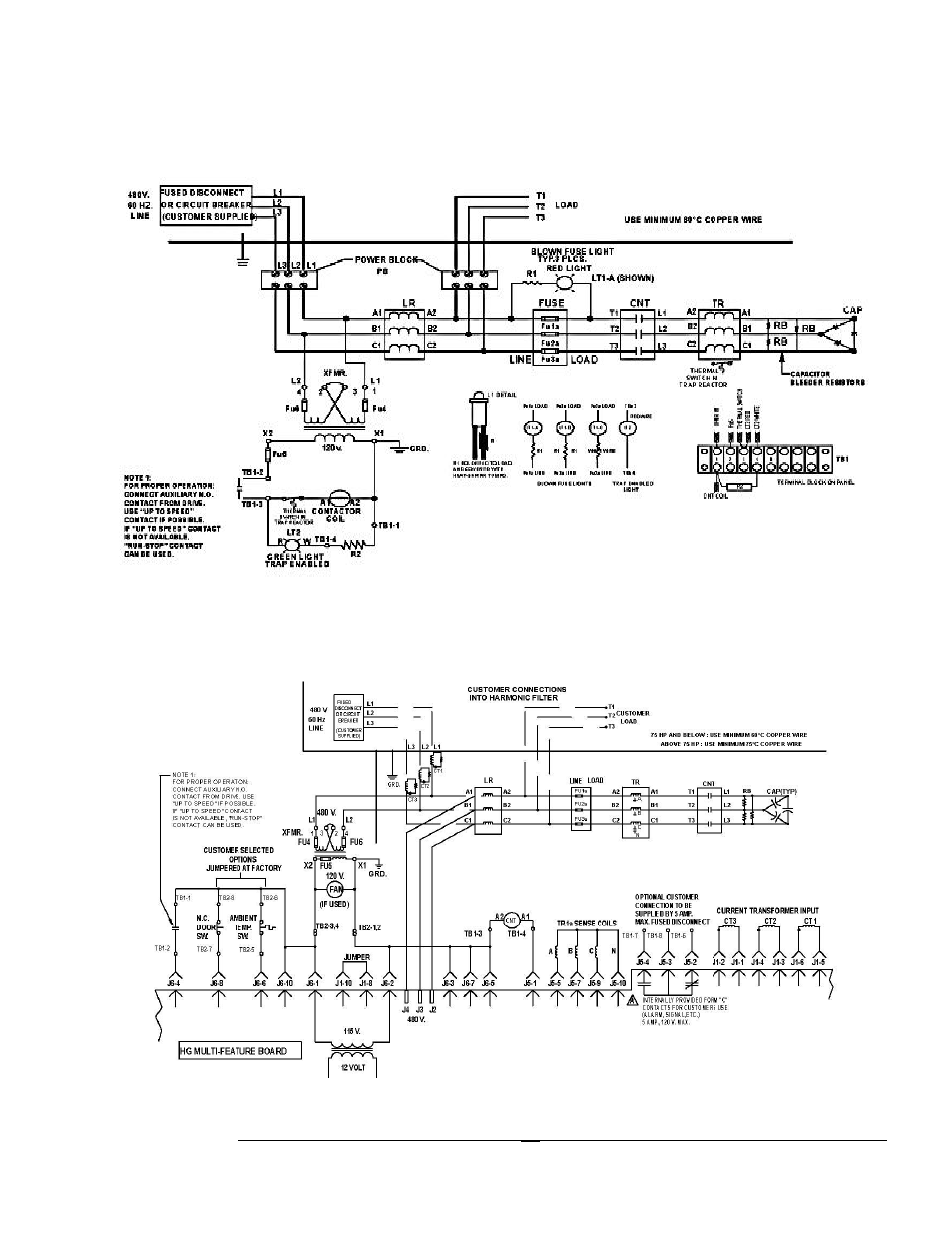

HG7 XM Schematic: 7.5 – 60 HP based on 480V
When possible, the “Up to Speed” Auxiliary Contacts should be used instead of the “Run-Stop” Auxiliary
Contacts on the VFD. Detailed note below.
HG7 XM Schematic: 200 – 400 HP based on 480V
When possible, the “Up to Speed” Auxiliary Contacts should be used instead of the “Run-Stop” Auxiliary
Contacts on the VFD. Detailed note below.
