HG7 I, O, & M Manual
18

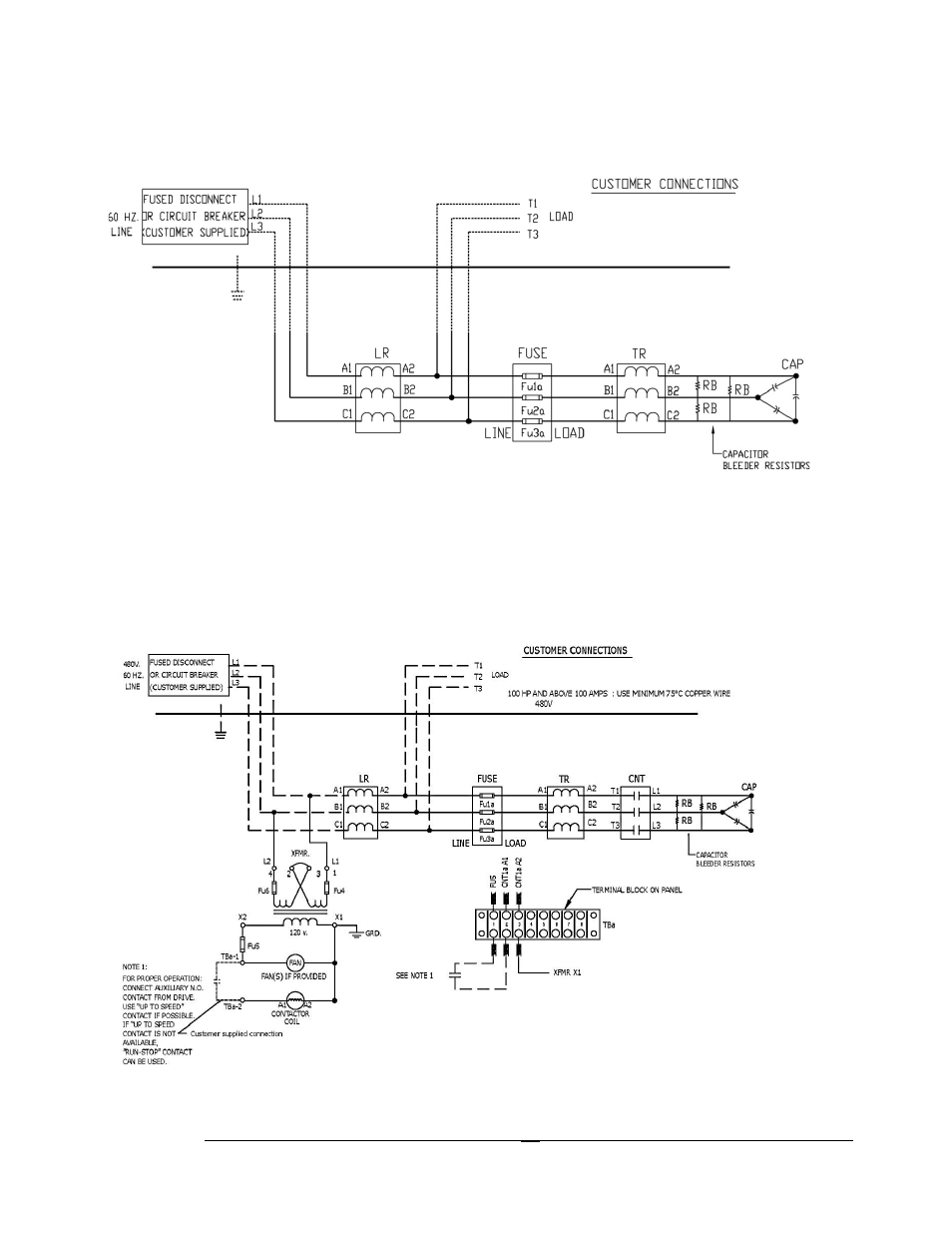

HG7 ST Typical Schematic based on 480V
HG7 STC Typical Schematic based on 480V
When possible, the “Up to Speed” Auxiliary Contacts should be used instead of the “Run-Stop” Auxiliary
Contacts on the VFD. Detailed note below.
