E18 Gas Fireplace Insert
INSTALLATION

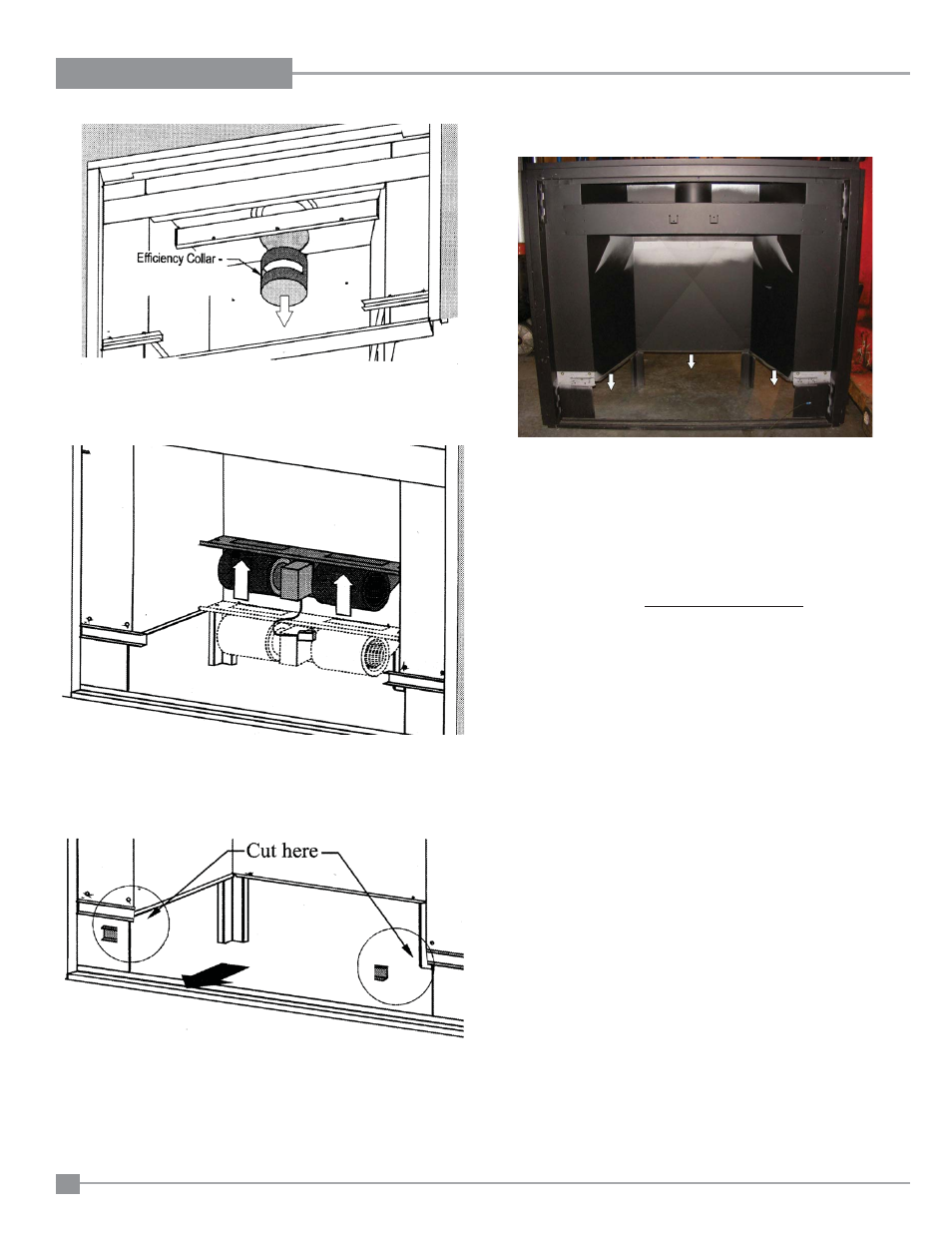

11. Bend Down the Three Flanges at the Bottom of the Firebox or Cut them
Off (see Diagram 6.9).
8. Remove Effi ciency Collar (See Diagram 6.6).
Diagram 6.6
Diagram 6.7
Diagram 6.8
Diagram 6.9
Edges must be fl ush to allow proper seating of the E18 outerbox.
9. Remove Fan (See Diagram 6.7).
10. Remove the leftover ends of the front bar on the Left and Right sides so
that they are fl ush with the sides of the fi rebox. (See Diagram 6.8)
E18 INSTALL SPECIFICATIONS
See Installation of E18 into Existing Units for General Installation Guidance.
This install of the E18 uses
Vent Connection Type A
.
The Length of 4" Flex needed is approximately 4-1/8" semi-expanded.
From this point installation is the same as the EP28-5.
