Skyjacker 9110 - Manual (Page 2)

Bracket “A”
Bracket “B”
Note: Skyjacker steering stabilizer Part # 7110 / 9110 is designed to fit several makes of vehicles
covering several years. Configuration of the front end of your vehicle will determine where you
mount the stabilizer. Differential cases are located either on left or right side depending on the
vehicle. This stabilizer can be installed on either side.
installation:
1. Park the vehicle on a level concrete or asphalt surface with the front tires / wheels pointing
straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Install the new Skyjacker bracket “A” to the axle housing tube using the supplied u-bolts,
washers, & nuts. (See Photo # 1) Install the new Skyjacker steering stabilizer onto the new brack-
et “A” using the supplied bushings, washers, & nut. (See Photo # 2)
4. Install the shaft end of the new Skyjacker steering stabilizer to the new Skyjacker bracket “B”
using the supplied bushings, washers, & nut. (See Photo # 2)
5. Extend the new Skyjacker steering stabilizer shaft out 4.44”(exactly half way) & mount to the tie
rod using the supplied u-bolts, washers, & nuts. Rotate the tie rod bracket as needed to obtain
the best position. (See Photo # 1)
I-7110 Pg 2

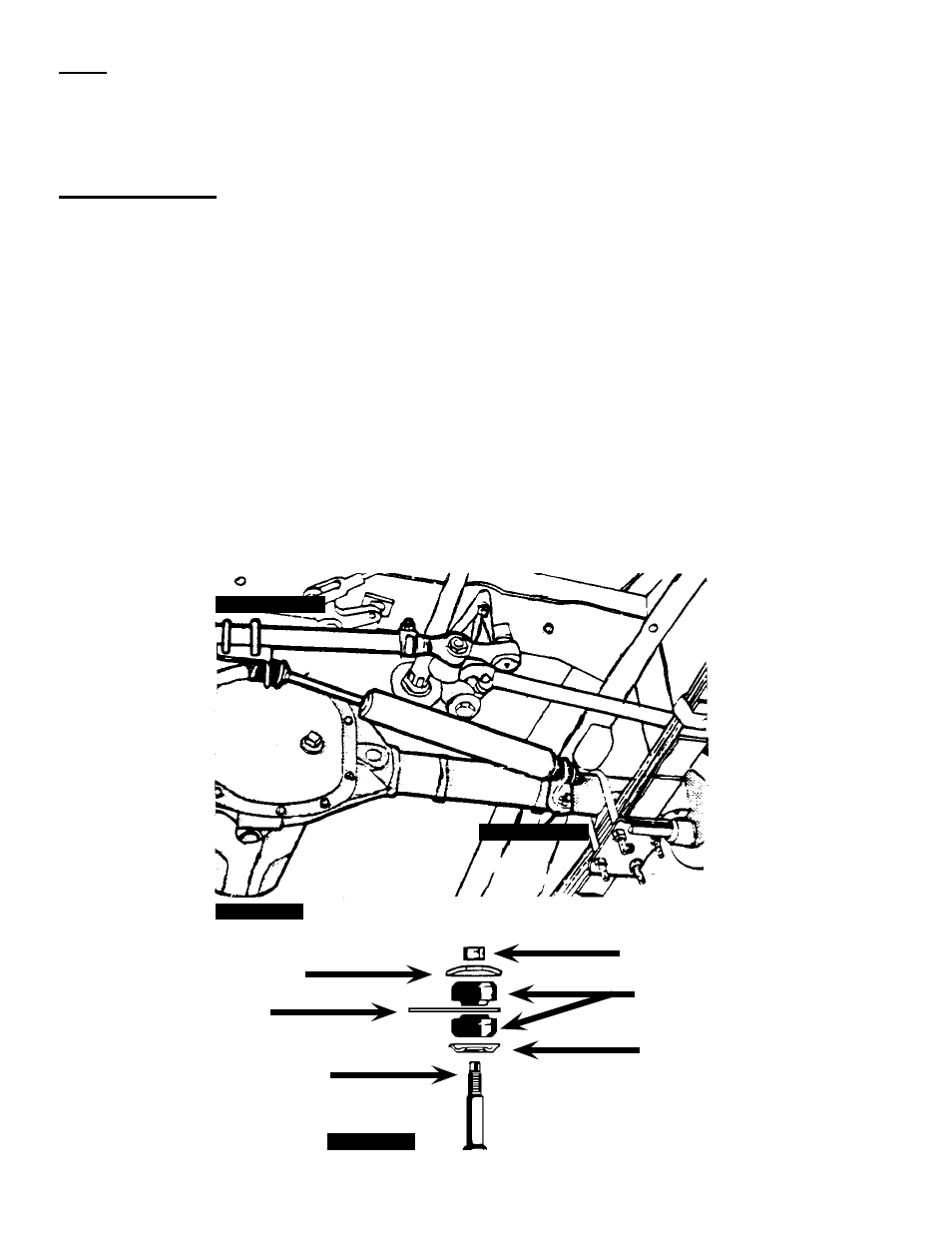

Photo # 1
Shock Stud
Stem Bushings
Retaining Washer
Retaining Washer
Bracket
Retaining Nut
Photo # 2
