installation:
1. Park the vehicle on a level concrete or asphalt surface with the
front tires / wheels pointing straight forward.
2. Set the emergency brake & block the rear tires / wheels.
3. Remove the OEM steering stabilizer & install the new Skyjacker
steering stabilizer using the supplied bushings & washer
packets. (Photo # 1)
4. Attach the new Skyjacker track bar mounting bracket to the OEM
track bar using the bent (15 degree angled) bracket. The OEM
track bar runs from the passenger side axle to the driver side
frame. Attach using the supplied 5/16” u-bolts, washers, & nuts.
(Photo # 2)
5. Attach the main end of the new Skyjacker steering stabilizer to
the new track bar bracket & install the new Skyjacker tie rod
bracket to the OEM tie rod assembly using the supplied 5/16”
u-bolts, washers, & nuts. (Photo # 3)
6. Attach the shaft end of the new Skyjacker steering stabilizer to
the new tie rod bracket. Note: Be sure that half
of the shaft (4.44") is pulled out so the new
steering stabilizer does not top or bottom out on
full turn. This bracket should be loose & may
need to be rotated to obtain maximum clearance.
8. Tighten all hardware securely at this time.
Final Notes:
• After the installation is complete, double check that all nuts & bolts are tight. Refer to the following
chart for the proper torque specifications. (Do not retighten the nuts & bolts where thread lock
compound was used.)
• Cycle the steering of the vehicle left to right & check all parts for adequate clearance.
• After the first 100 miles, check all of the hardware for the proper torque & periodically thereafter.

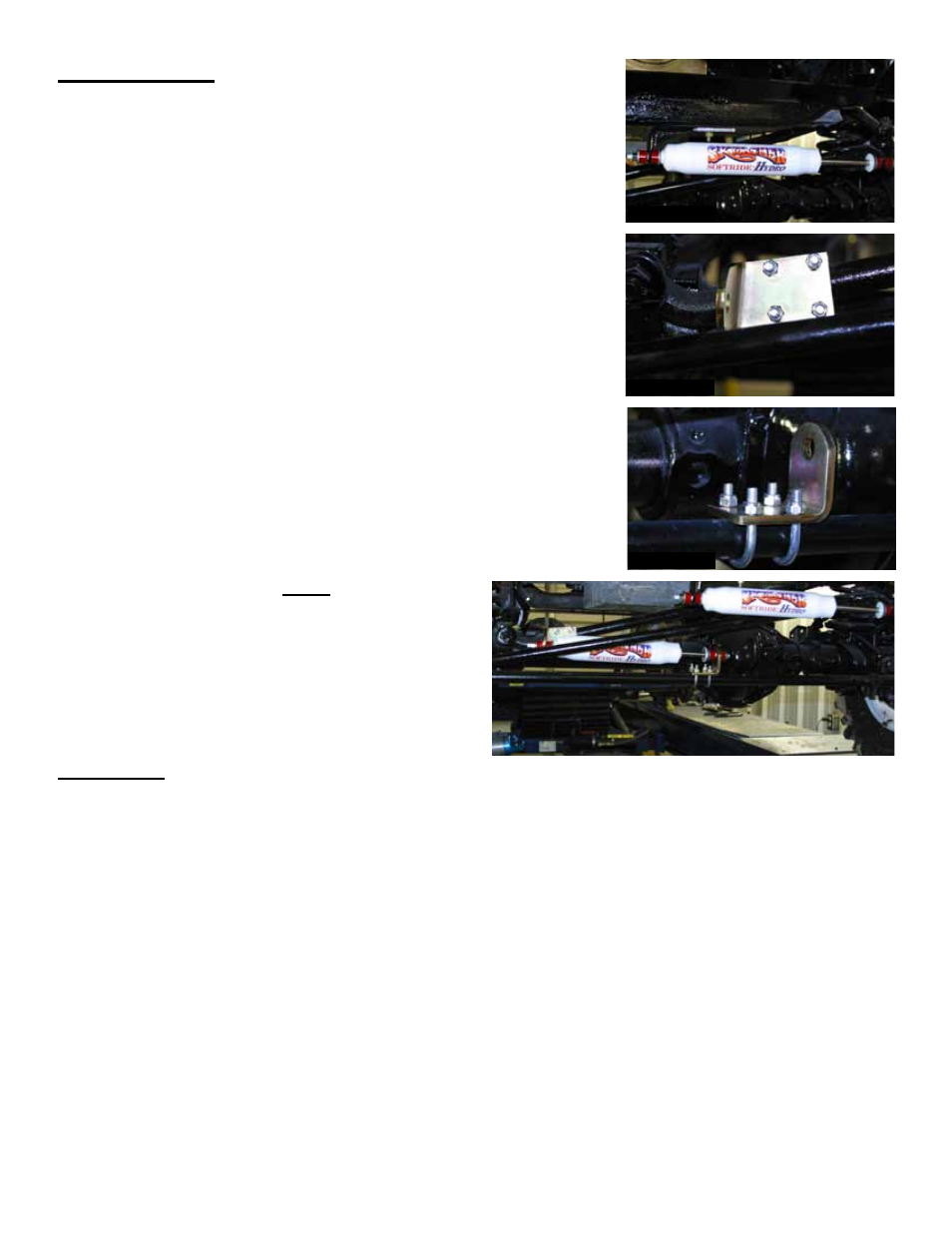

Photo # 1
Photo # 2
Photo # 3
