Opticon PHL 5200 addendum User Manual
Page 6
6

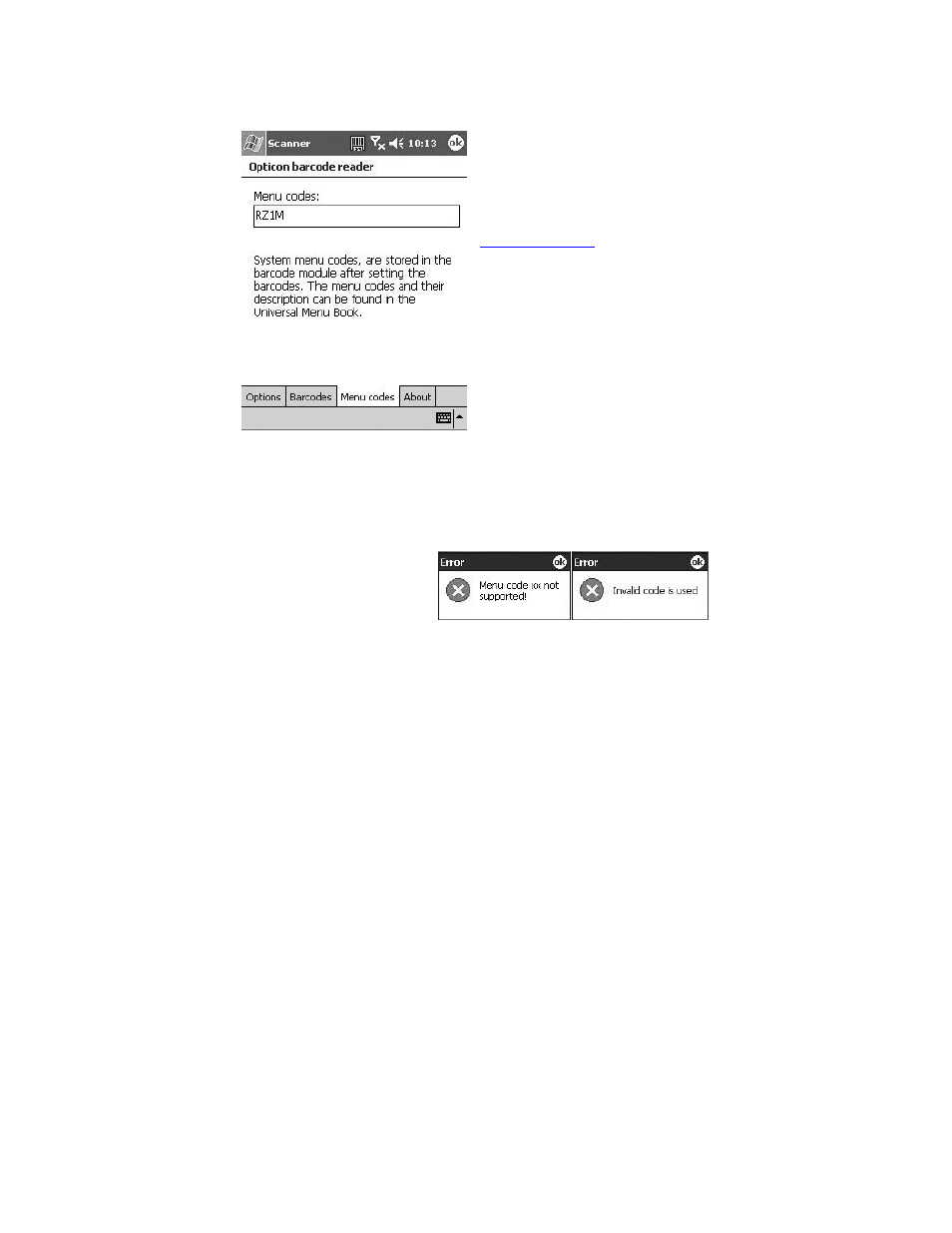

Tab Menu codes
Some specific configuration
possibilities can be inserted and stored
in the menu codes field. The menu
codes are taken from the Opticon
Universal Menubook (download on
www.opticon.com
).
All codes are stored together in one
line. For example menu code
and <1M> are stored as RZ1M.
NOTE: The menu codes field is meant
for typing AND for storage! When
deleting all codes in the field the
application will remove the custom
setting and return to factory default.
Insertion order
We advice to add menu codes one by one and check for acceptance.
Type the menu code behind the current text in the menu codes field.
Tap the OK button.
When the code is not
accepted an error box
appears:
When the code is accepted no message appears. You can proceed to enter
the next menu code behind the current text.
Totally 256 characters can be stored.
