MANAGEMENT SYSTEM
The GX/TM2 with integrated management provides
comprehensive remote configuration and performance
monitoring. iConverter management reduces operational
expenditures by keeping truck rolls to a minimum through
remote provisioning, unidirectional fault detection, trap
notification and loopback capabilities.
iConverter management is available out-of-band via IP-Less
protocol using the 802.3ah OAM channel or Omnitron’s Secure
OAM channel, or in-band using SNMP or Telnet.
Management is accessed via Omnitron’s NetOutlook® SNMP
Network Management Software with an intuitive Graphical User
Interface, or third party SNMP software. The Telnet and CLI
management interfaces are also supported, and utilize an easy
to use, menu-driven interface. The CLI interface is accessed via
a Serial Console Port or Telnet, that provides local configuration
and allows for firmware updates. Additionally, the port can be
connected to a serial modem to provide an alternative remote
management path.
IP-Based Management
The GX/TM2 can be managed through IP protocols, SNMPv1,
SNMPv2c, SNMPv3 and Telnet. The IP address of the GX/
TM2 can be user-defined or resolved through the DHCP host
on the network. The IP protocols for management access can
be enabled or disabled individually or as a group. Access to
the management is protected by password authentication.
SMNPv3 strengthens secure access to devices by a
combination of authenticating and encrypting packets over the
network. Management VLAN can also be defined to separate
management traffic from customer traffic.

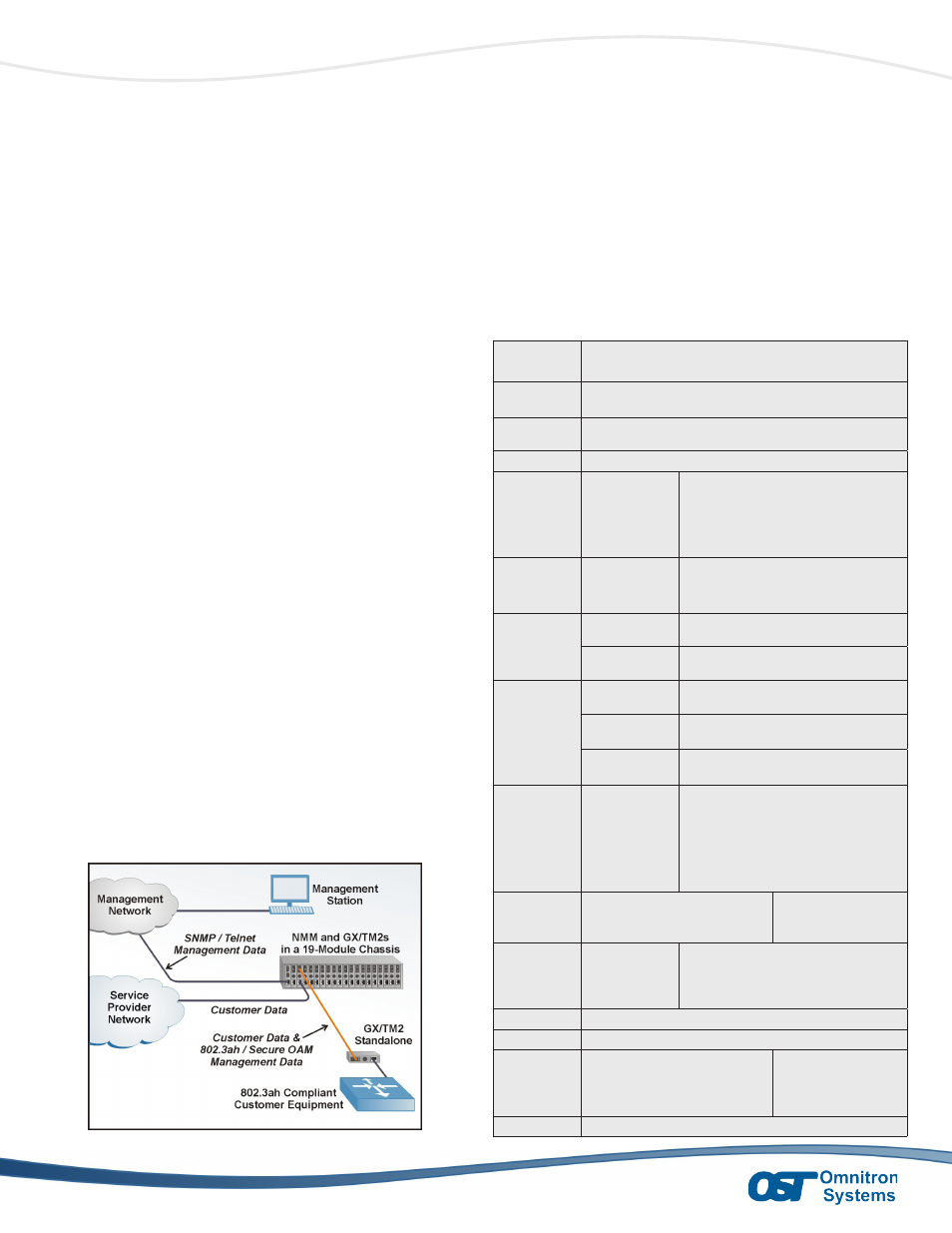

802.3ah and Secure OAM Management Channels
When utilizing a Remote OAM management channel (Secure
IP-less or 802.3ah), the NID at the Customer Premises is
securely managed by its fiber link partner located at the Central
Office or Point of Presence. The management network IP
address is not available to the customer network and is isolated
by the iConverter Network Management Module (NMM2) in the
19-Module Chassis at the Central Office.
A management processor on the GX/TM2 in the 19-Module
Chassis isolates the encrypted management data from the
customer data and communicates with the NMM2 via a separate
management backplane bus. Management traffic on the user
data lines is IP-less and carried on a securely encrypted data
channel to protect the management from unauthorized access.
The chassis at the Central Office requires only a single IP
address to manage itself and all of the connected remote
chassis managed by the Remote OAM channel. This is the ideal
configuration for networks that separate secure management
traffic from the service (customer) traffic on different networks,
or when management IP addresses are at a premium.
Page 3
SPECIFICATIONS
iConverter GX/TM2
Description
iConverter GX/TM2
10/100/1000BASE-T UTP to 1000BASE-X Fiber Media Converter
Standard
Compliances
IEEE 802.3, 802.1Q, 802.1p, 802.1ad
RFC 2819 (RMON)
Regulatory
Compliances
UL, CE, FCC Class A, RoHS2, WEEE
Frame Size Up to 10,240 bytes
Port Type
Copper:
Fiber:
10/100/1000BASE-T (RJ-45)
1000BASE-SX (ST, SC, SFP)
1000BASE-LX (ST, SC, SFP)
1000BASE-ZX (SC, SFP)
1000BASE-BX (SC, SFP)
Cable Types
Copper:
Fiber:
EIA/TIA 568A/B, Cat 5 UTP and higher
Multimode: 50/125µm, 62.5/125µm
Single-mode: 9/125µm
AC Power
Requirements
US AC Adapter: 100 - 120VAC/60Hz
0.08A @ 120VAC (typical)
Universal AC
Adapter:
100 - 240VAC/50 - 60Hz
0.08A @ 120VAC (typical)
DC Power
Requirements
DC Input
(backplane):
3.3VDC, 1.1A @ 3.3VDC
DC Input
(Terminal Block):
8 - 15VDC, 0.6A @ 9VDC max
2-Pin Terminal (non-isolated)
DC Input
(AC Adapter):
8 - 15VDC, 0.6A @ 9VDC max
2.5mm Barrel Connector
Dimensions
Plugin:
Standalone:
Standalone:
(Wall-Mount)
W: 0.85” x D: 4.5” x H: 2.8”
L: 21.6 mm x B: 114.3 mm x H: 71.1 mm
W: 3.1” x D: 4.8” x H: 1.0”
L: 78.7 mm x B: 121.9 mm x H: 25.4 mm
W: 3.8” x D: 4.8” x H: 1.0”
L: 96.5 mm x B: 121.9 mm x H: 25.4 mm
Weight
Plug-in:
Standalone w/o Adapter:
Standalone w Adapter:
8 oz.; 226.8 grams
1.0 lb.; 453.6 grams
1.5 lbs.; 680.4 grams
Temperature
Commercial:
Wide:
Extended:
Storage:
0 to 50°C
-40 to 60°C
-40 to 75°C
-50 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4000m
MTBF (hrs)
Plugin:
Standalone w/o Adapter:
Standalone w/ US Adapter:
Standalone w/ Universal Adapter:
450,000
450,000
250,000
100,000
Warranty Lifetime warranty with 24/7/365 free Technical Support
