page 14 — dca70ssJu4i 60 hz generator • operation and parts manual — rev. #2 (04/09/14)
traiLer DiMeNsiONs/speCiFiCatiONs

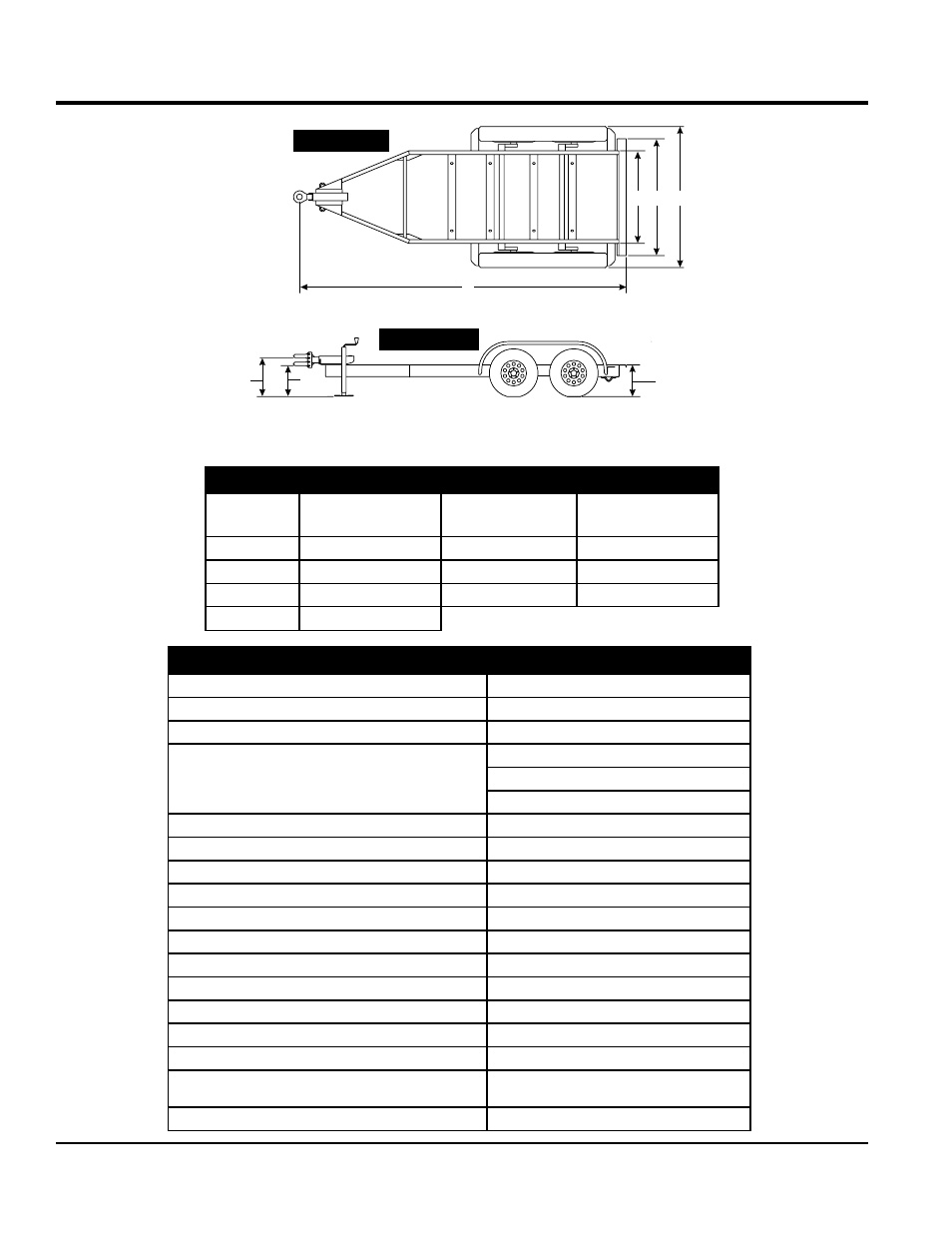

Figure 2. Trailer Dimensions
D C B
A
G F E
TOP VIEW
SIDE VIEW
table 4. Trailer dimensions
Reference
letter
dimension in. (mm) reference letter dimension in. (mm)
A 169.4 (4,938) E 24.2 (615)
B 47.5 (1,207) F 20.2 (513)
C 60 (1,524) G 20.35 (517)
D 72.5 (1,842)
table 5. trlr70ush trailer specifications
Gross Vehicle Weight Rating (GVWR) 7,000 lbs. (3,175 kg)
Gross Axle Weight Rating (GAWR) Each 3,500 lbs. (1,588 kg)
Actuator Rating 8,000 lbs. (3,629 kg)
Coupler Types
Adjustable 2-inch Ball Coupler
Adjustable 2-5/16-inch Ball Couple
Adjustable 3-inch Pintle-eye Coupler
Tire Size ST205/75D15 LR-C
Tire Load Rating 1,820 lbs./825 kg (ea.)
Wheel Bolt Pattern 5 Lug on 4.5 in.
Hydraulic Brakes (Standard) Hydraulic-actuated Drum Brakes (all axles)
Electric Brakes (Option) Electric-actuated Drum Brakes (all axles)
Bolt-on Electric Brake Coupler Plate Option
Electric Breakaway Safety Device electric-actuated brakes) Option
Tongue Mounted Swivel Jack (Standard) 3,000 lbs. (1,361 kg)
Tongue Bolt-On Jack (Option) 8,000 lbs. (3,629 kg) Option
Axle Tandem
Suspension Torsion
Lights
D.O.T. Approved Tail Lamps, Stop Lamps, Turn
Signal Lamps, Side Marker Lamps
Weight (Approximate) 960 lbs. (435 kg)
