dca70SSJU4i 60 hz generator• operation manual — rev. #2 (04/09/14) — page 13

GeNeratOr DiMeNsiONs

table 3. generator dimensions

Reference

letter

dimension in. (mm)

reference letter

dimension in. (mm)

A

39.25 (997)

E

39.25 (997)

B

32.80 (883)

F

105.12 (2,670)

C

39.25 (997)

G

68.30 (1,735)

D

32.28 (820)

H

37.40 (950)

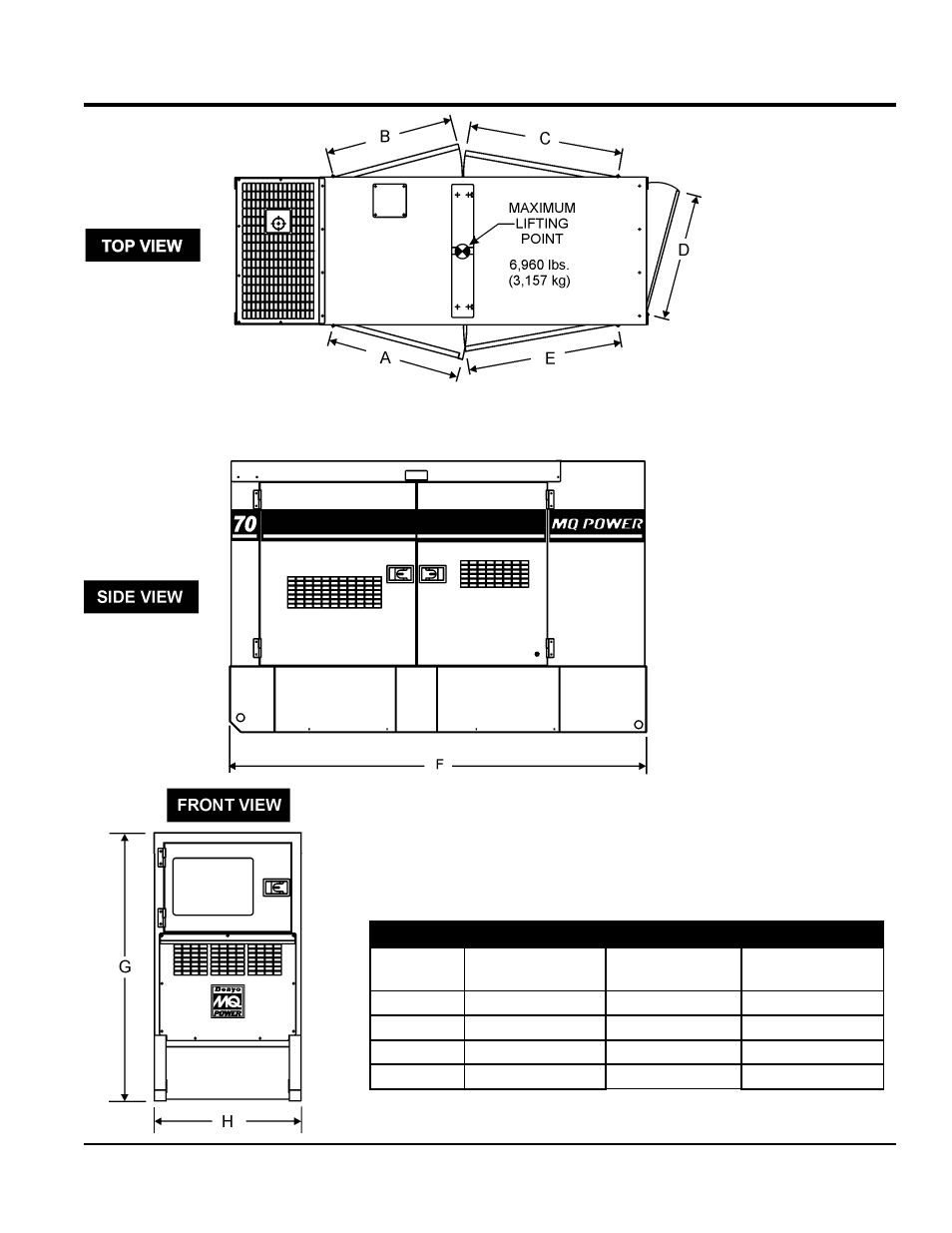

Figure 1. Dimensions
