Description
Controls
Section
release control from the frame-mounted control
to MTS TestSuite software.

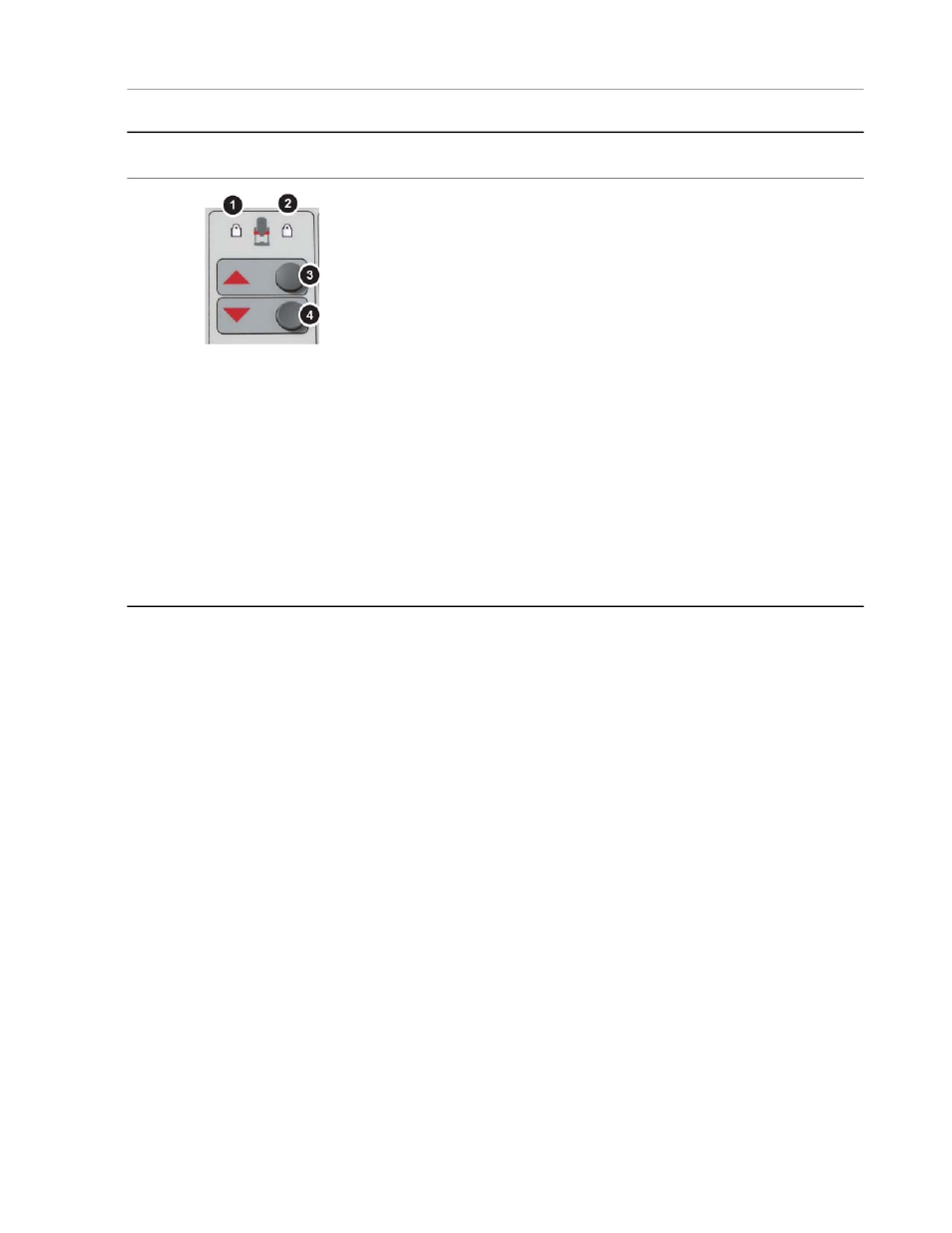

Crosshead manual lock indicators and
crosshead positioning buttons
G
1
Left crosshead manual lock icon. When
illuminated, the left crosshead manual lock handle
is in the fully locked position. When not
illuminated, the handle is in the fully unlocked
position. When blinking, the handle is in an
intermediate position.
2
Right crosshead manual lock icon. When
illuminated, the right crosshead manual lock
handle is in the fully locked position. When not
illuminated, the handle is in the fully unlocked
position. When blinking, the handle is in an
intermediate position.
3
Crosshead up button. Press to raise the
crosshead. Crosshead must be fully unlocked to
move the crosshead.
4
Crosshead down button. Press to lower the
crosshead. Crosshead must be fully unlocked to
move the crosshead.
60 MTS Acumen™ Electrodynamic Test System
Operation
