318 Load Unit 54 Installation
• If your load unit has airmounts, inflate each airmount in 5 mm (0.20 in)
increments to level the load unit.
– Check the airmounts’ pressures often to ensure that they do not exceed
0.55 MPa (80 psi).
– Check the airmounts’ inflated heights to ensure that they are all
between 83 and 88 mm (3.25 and 3.5 in).
– Adjust the air pressure to level the load unit.
Airmounts can be overinflated and then explode.
You can be seriously hurt if an airmount explodes, sending fragments flying.
Do not overinflate the airmounts.
6. Remove the chains.
318 Load Unit: Connect Cables
Your controller manual should have cabling information about the connections
described in this section. Most controller manuals provide the signal pinouts of
the connector, assembly numbers for standard MTS cables, and cable
specifications for cables you may build.
WARNING

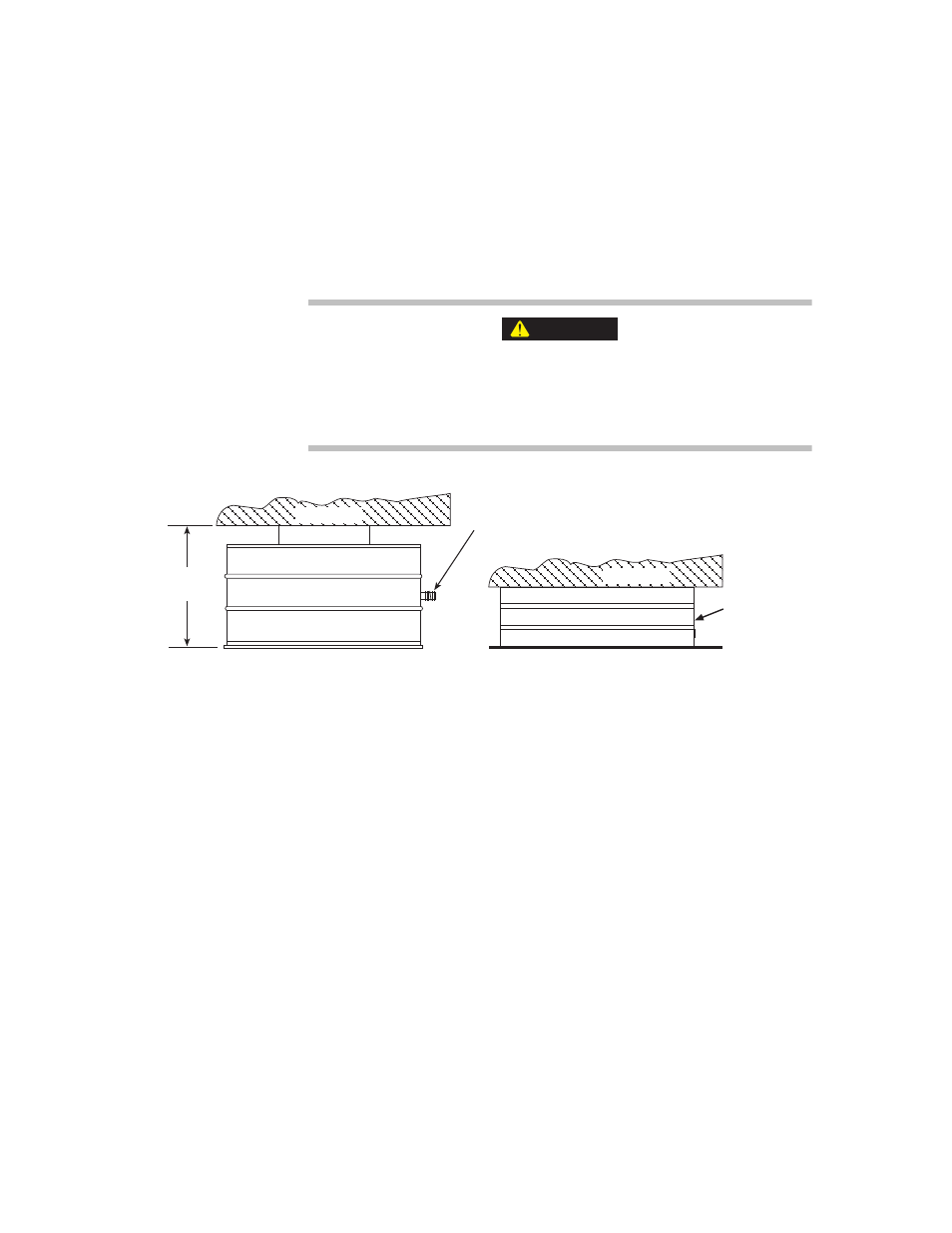

Load Unit
Load Unit
0.55 MPa (80 psi)
maximum pressure
83-86 mm
(3.25-3.5 in)
Install
shims
to level
Airmount Foot Support Isolation Pads
