318 Load Unit
26
Introduction

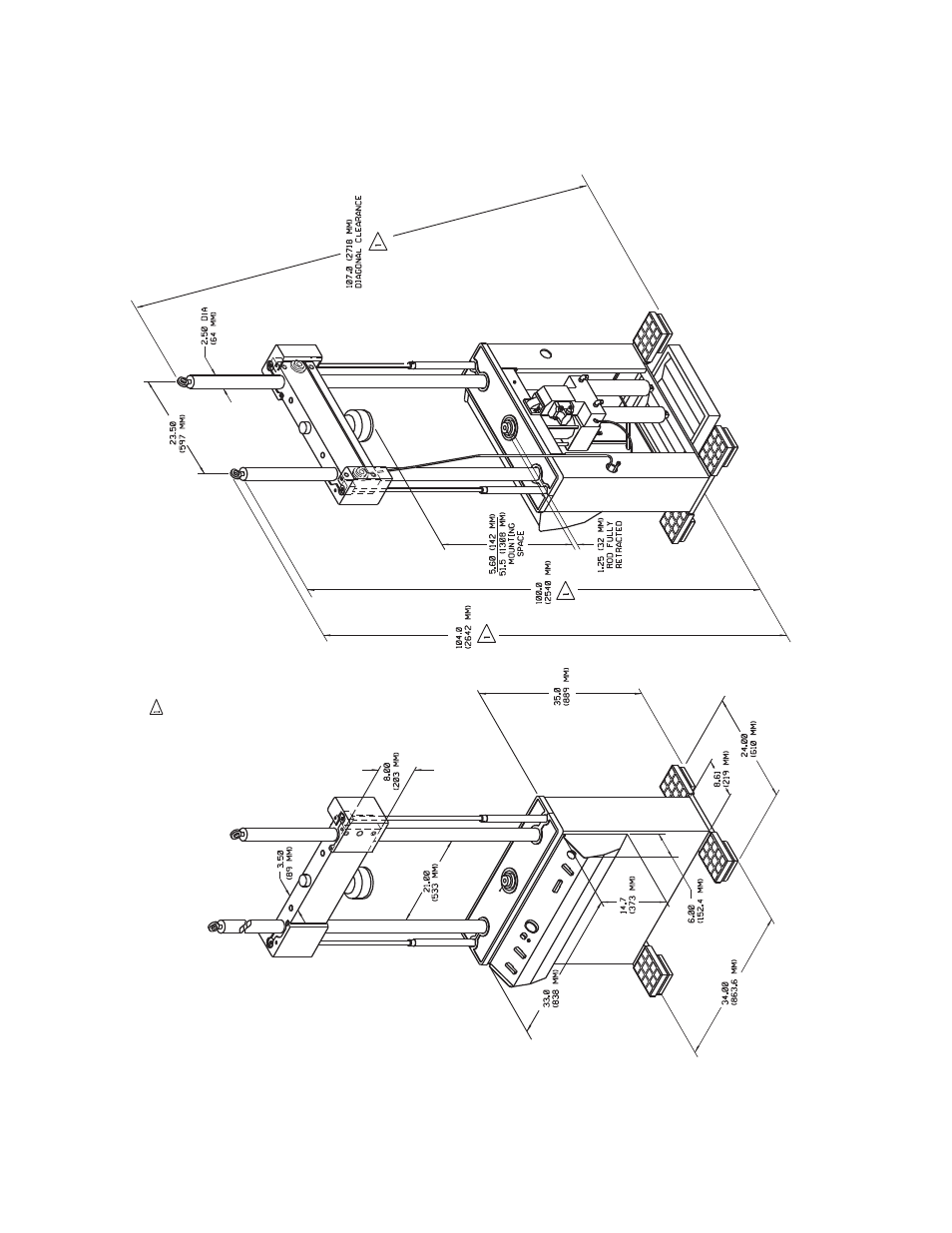

318 Load Unit: Dimensions
318.10B Load Unit Dimensions
Standard column lengths indicated
Note: Dimensions are inches
(mm)
W
eight: 1
100 lbs (500 kg) is normal maximum
weight.
Accessories and special fixtures
must be added.
This weight specification
is for lifting and moving purposes. Actual shipping weight must be determined by scale.
