Page 17
318 Load Unit
Introduction
17

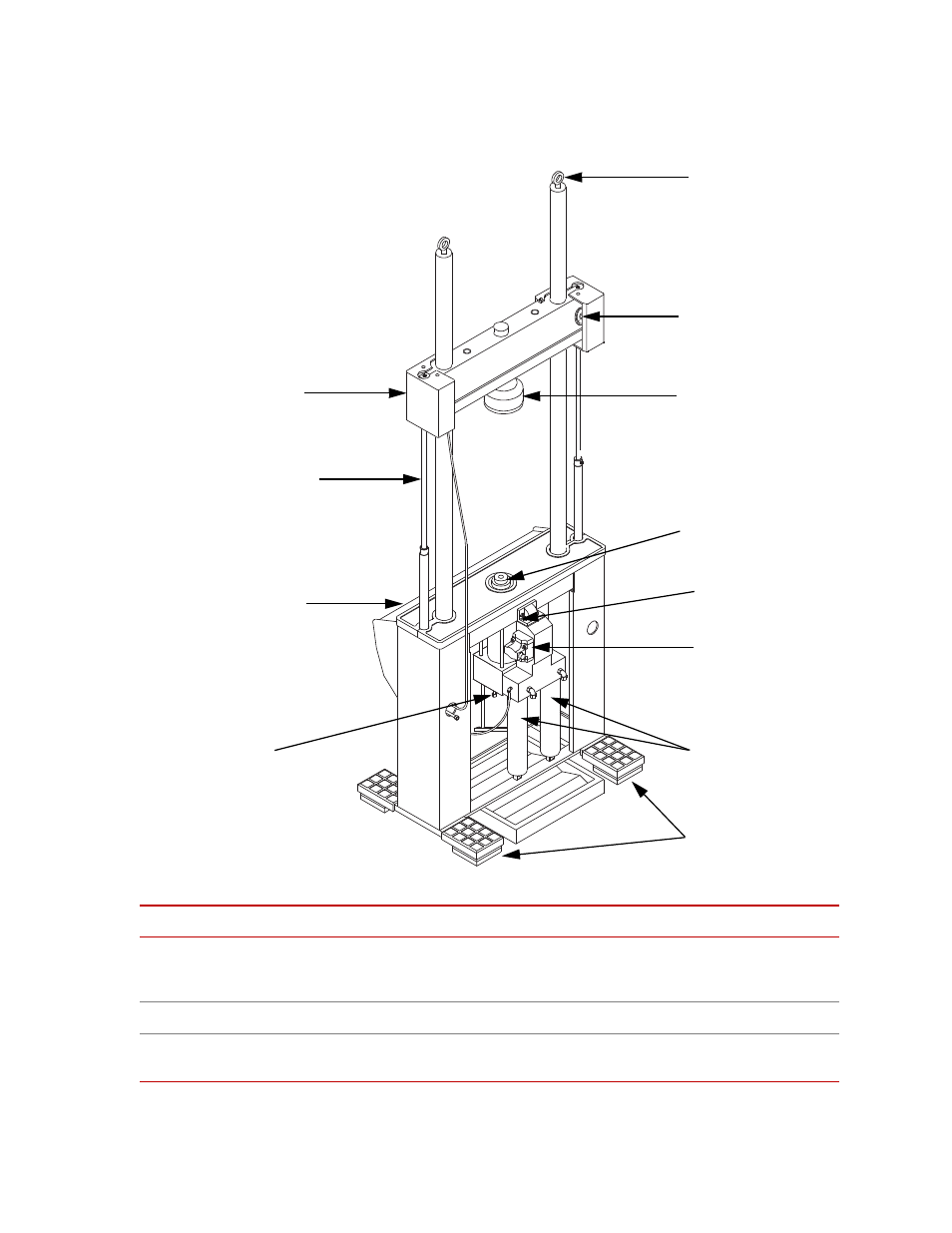

318 Load Unit: Component Identification
Component Descriptions
I
TEM
C
OMPONENT
D
ESCRIPTION
1
Crosshead
Moves the up and down the column to accommodate different sized
specimens and fixtures. The crosshead is stiff and light weight; it is one end of
the force train.
2
Crosshead locks
Clamps the crosshead to the columns. The locks are hydraulically powered.
3
Crosshead lifts
Raises and lowers the crosshead hydraulically to accommodate different
specimen sizes. The lifts are small hydraulic actuators.
11
1
12
2
8
5
7
9
10
3
6
4
