DO NOT work around the engine while hot.

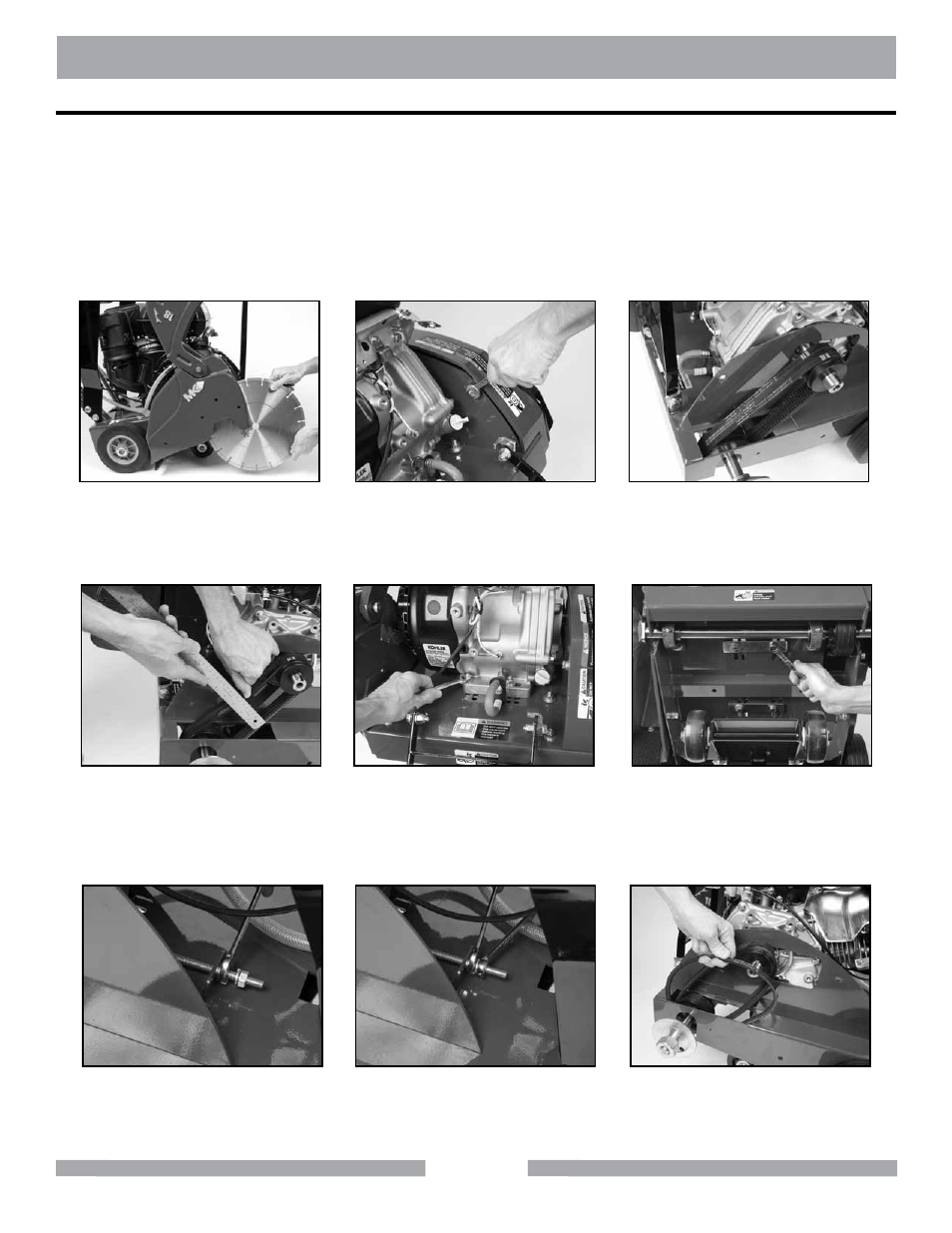

(A)
Remove the Blade
(See Blade Removal section).
(C)
Inspect the belt for excessive
wear, cracks and cuts – if worn,
proceed to Step E.
(B)
Locate and remove the Belt
Guard Retaining Bolts and then
remove the Belt Guard.
(D)
Check belt for proper tension if ten-
sion is correct, go to Step P (Proper
tension is approximately 1/8-inch
deflection of the belt).
(G)
Loosen Jam Nut on Engine
Tension Arm.
(F)
Locate the four lower Engine
Mounting Bolts on both ends of
the motor and loosen.
(I)
Remove the old belts from the
Engine and Blade Shaft Pulleys.
(E)
Locate the four upper Engine
Mounting Nuts on both ends of
the motor and loosen.
(H)
Loosen the Engine Tension Arm
adjusting nut. Push the Engine
forward to loosen the belt.
MK-1600 MAINTENANCE
Belt Adjustment and Replacement
In order to ensure the saw operates at peak efficiency, the power transmission belt should be inspected
monthly and changed if any signs of damage and/or excessive wear is observed.
NOTE: 1. When a new belt is installed, it should be inspected and retensioned after the first
forty-eight (48) hours of operation.
2. Do not over tension belts as damage to belts and bearings may occur. Belts that are
too loose may slip, resulting in short life of loss of power to the blade shaft. If any belts
are worn or damaged, replace complete set.
