TRANSPORT
MK-1600 TRANSPORT
CAUTION 1. The MK-1600 weighs approximately two hundred and thirty-five (235 pounds),
use care when transporting.
2. Two people are required to lift and transport the MK-1600.
3. A lifting bail is included on Premium models or available as an option.

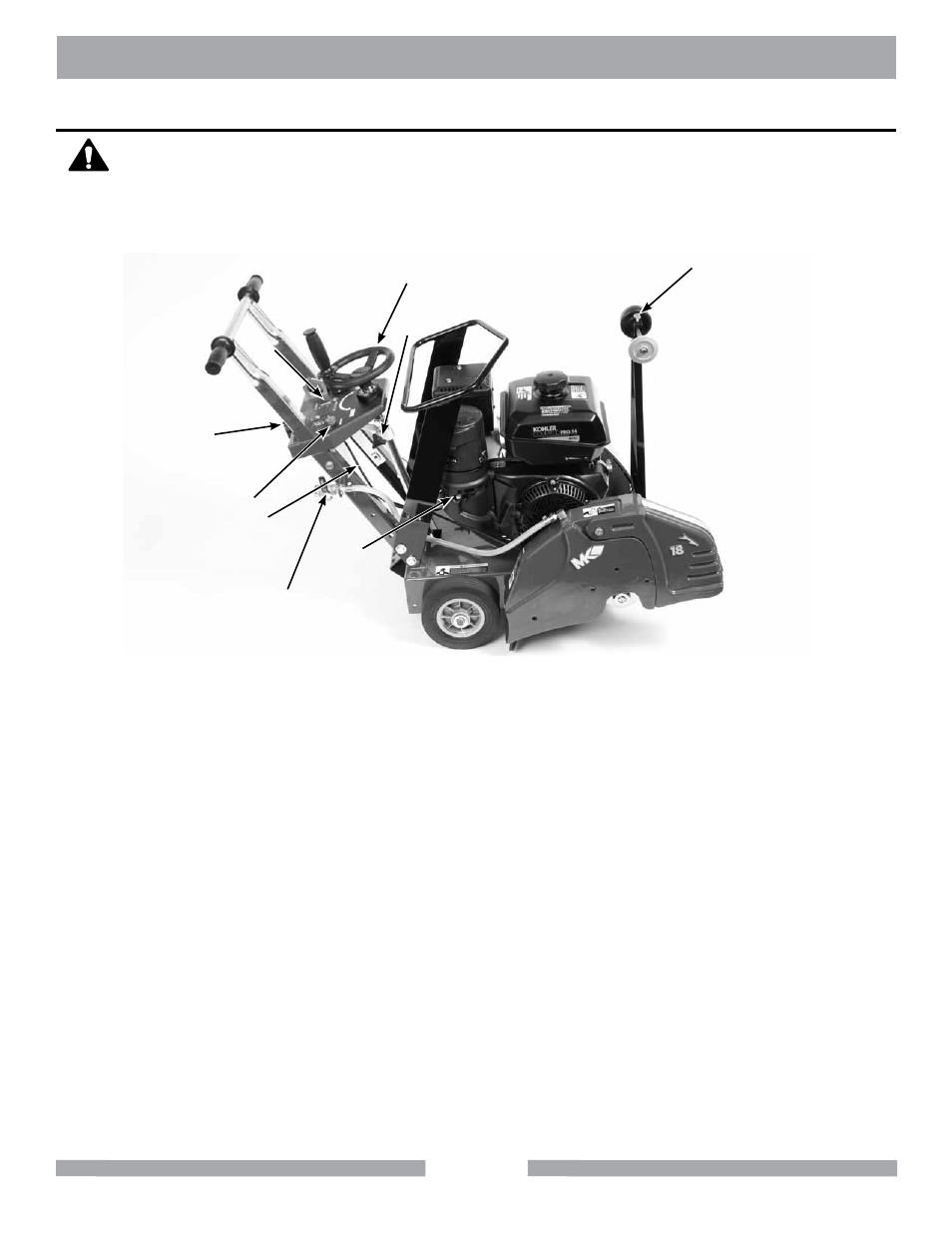

1. The raise lever wheel raises the blade when rotated clockwise, and lowers the blade
when rotated counterclockwise.
2. The raise/lower wheel lock is engaged when the knob is tightened.
3. The throttle control increases engine rpm from slow (idle) at the bottom, to fast (full rpm)
at the top.
4. The water control lever is off in the vertical position and fully on in the
horizontal position. It may be placed at in between settings to regulate the water flow.
5. The engine master switch is located on the console for quick engine shut-off.
6. The choke is located on the engine, by the pull starter, for convenient cold starting.
7. Depth control indicator should be adjusted to zero when setting up saw.
(Premium models only.)
8. Depth control clamp must be adjusted for desired depth of cut.
9. The pointer is set in line at the factory but should be checked for proper alignment with
the blade after every use.
7
2
1
8
9
3
5
4
6
