15
MK-1600 ASSEMBLY
1. When installing the blade retaining-bolt, ensure the threads of the bolt are
aligned with the threads of the drive shaft so as not to “cross-thread” the bolt.
2. When installing the blade ensure that the blade shaft and flanges are free from dirt
and all foreign material before mounting blade on the blade shaft. Tightening a blade
against an uneven surface can cause fracture or cause the blade to run out of alignment.
3. Blade shaft threads are left-handed on the right side of the saw and right-hand on the
left of the saw.

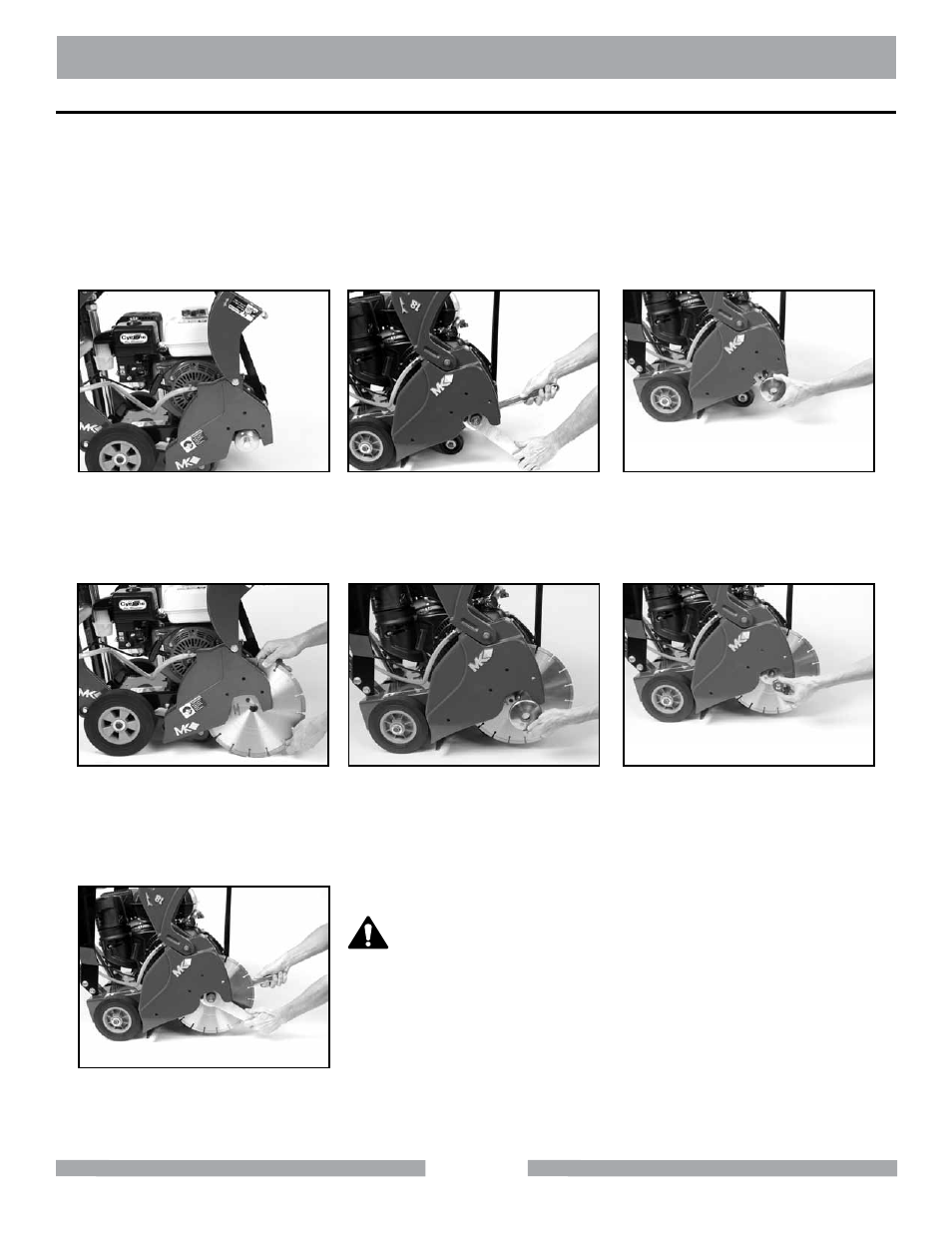

(A)
Open the Blade Guard Cover.
Locate the Blade Shaft Nut and
the Outer Flange.
NOTE:
Diamond Blade Installation
(B)
Loosen the Blade Shaft Nut while
holding the Shaft Wrench steady.
(F)
Install the Blade Shaft Nut.
(C)
Remove the Blade Nut and
Outer Flange.
(D)
Install the Diamond Blade onto
the Blade Shaft. Ensure direc-
tional arrow on the blade indi-
cates proper rotational direction.
(G)
Tighten Blade Shaft Nut holding
the Blade Shaft steady. Lower
and close Blade Guard.
(E)
Install the Outer Flange. Verify the
drive pin is seated; it must project
through the hole in the blade and
into the flange.
WARNING Do not operate the saw without the proper
Blade Guard covering. Ensure that the blade
exposure does not exceed 180 degrees during
operation.
