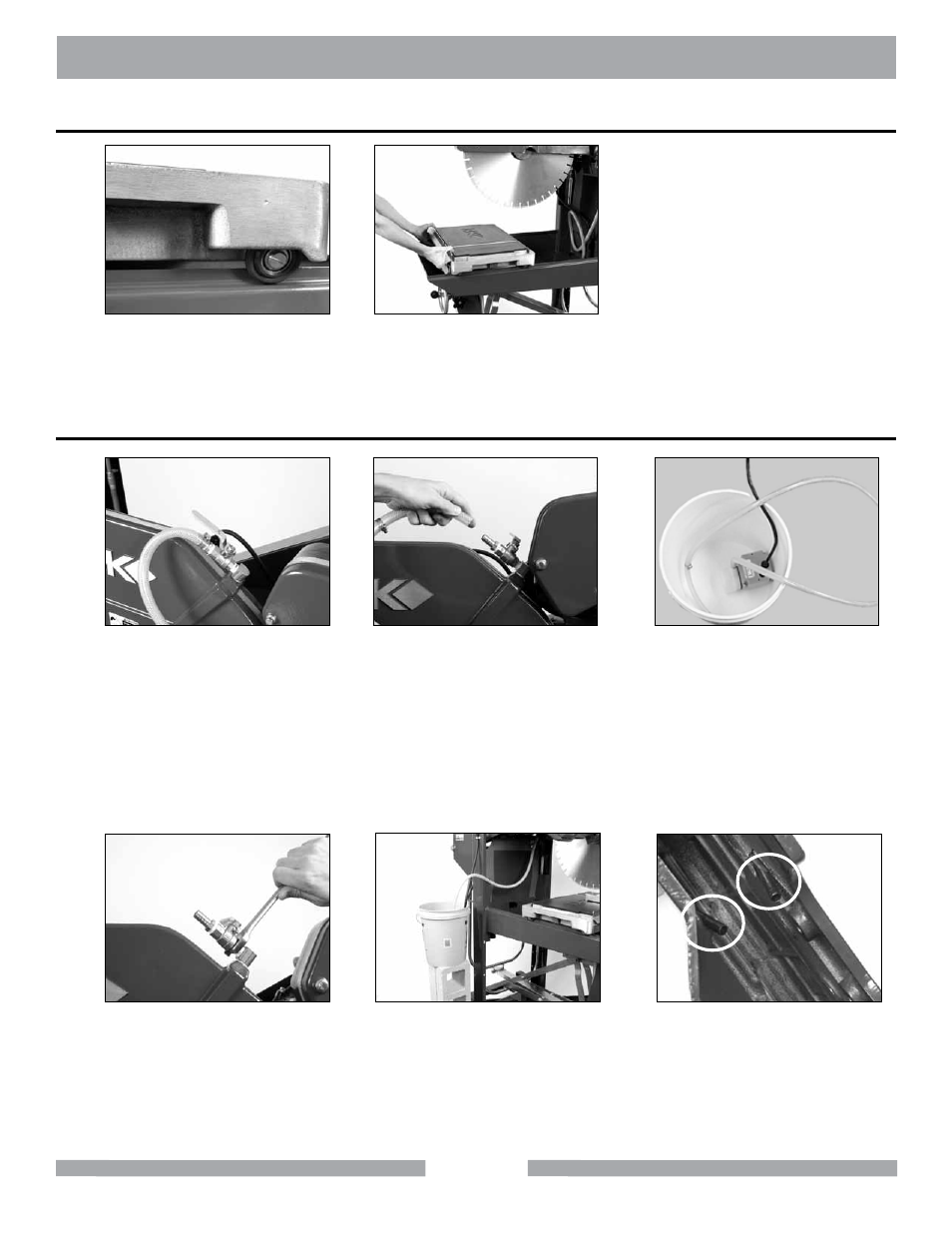

MK-5005S TRoUBlESHooTING
(F)
Locate Cooling Channels inside
Blade Guard
cooling Flow Stopped
(A)
Check Cooling Flow
Control Valve is open
(B)
Remove Transfer Tube from
Blade Guard
(C)
Place Water Pump in clean
water source and check for flow
(if no flow go to Step G)
“Rodding” Cooling Channels is performed by removing the Flow Control Valve and then inserting a small wire
rod through the cooling channel inlet, located on the underside of the Blade Guard. The Cooling Channels
should be “rodded” until each of the outlet ports are open and free of foreign debris.
NoTE:
(D)
Verify Cooling Valve operation
by removing the valve from the
Blade Guard
(E)
Attach the Cooling Valve to the
Transfer Tube to verify flow –
if no flow, replace valve
Movable cutting Table Does Not Move correctly
(A)
Check Guide Rails are clean
and check for Roller Wheel
damage
(B)
Verify ease and freedom of
movement
