MK-5005S

oPERaTIoN

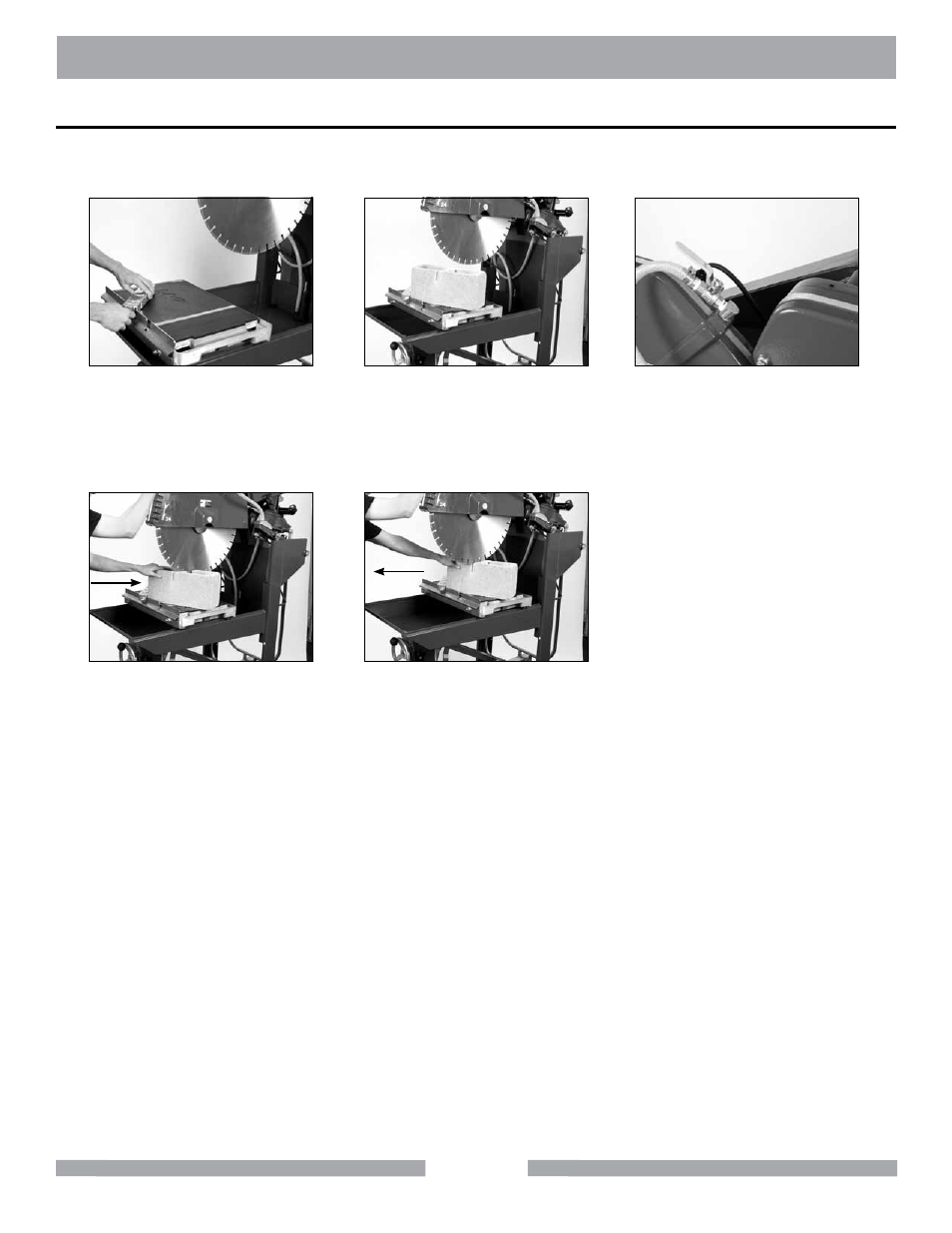

angle cuts
Angle Cuts may be performed using the Step Cut, Chop Cut, Cutting Head Positioned Down methods

or with the masonry piece positioned vertically. The following example utilizes the Step Cut method.

(A)

Reposition adjustable Cutting

Guide. Align 45° Slots to Ruler/

Stop

(C)

Open the Cooling Flow Control

Valve and adjust flow. Verify

proper cooling flow on

both sides of the blade

(B)

Position the masonry piece.

Adjust the height of the Cutting

Head as necessary, start motor

(D)

Lower Cutting Head 1/4" -1/2"

during “Push” Stroke

(E)

Lower Cutting Head 1/4" -1/2" dur-

ing “Pull” Stroke. Repeat Steps D

and E until cut is complete. Turn the

saw off when work is complete
