13

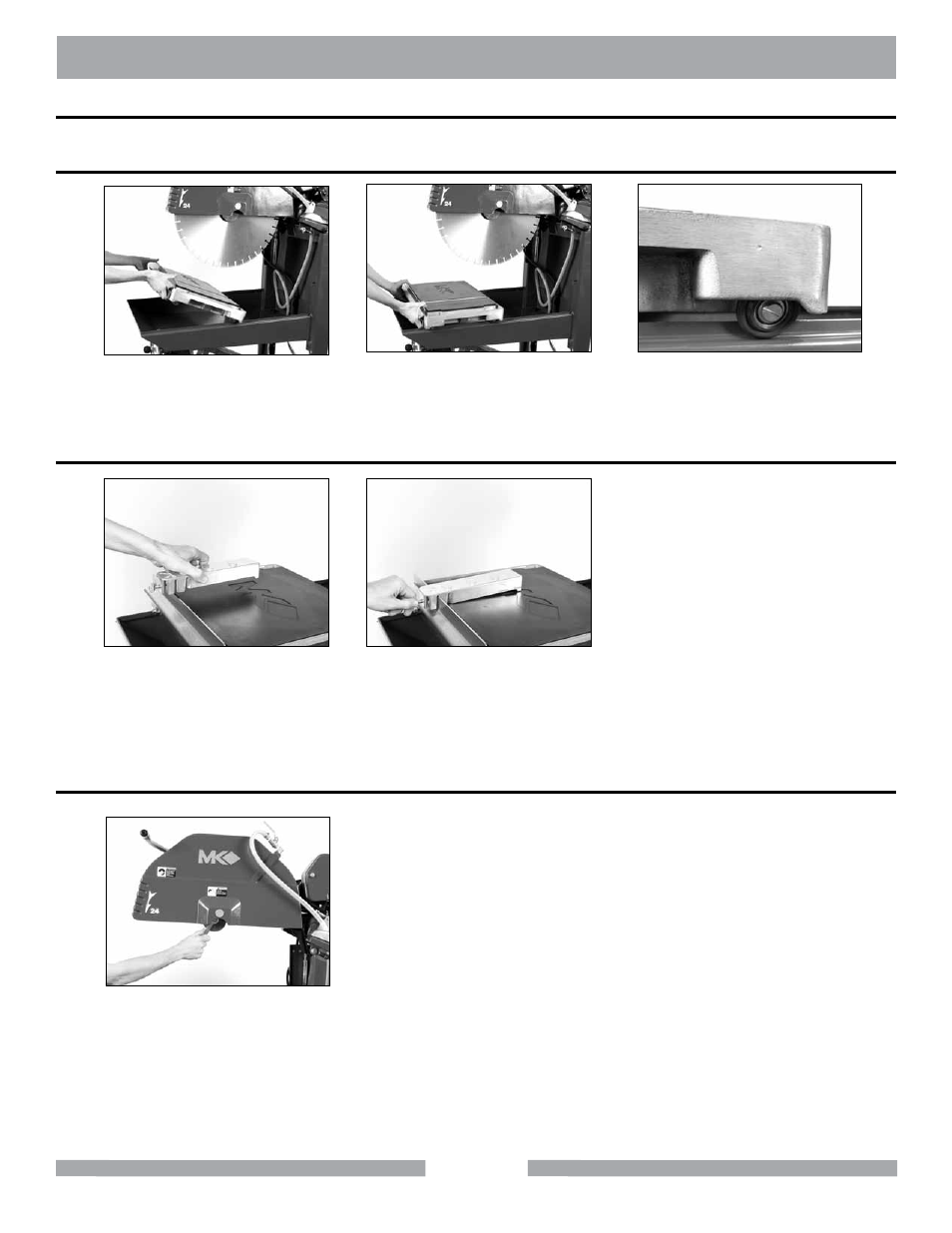

Follow the assembly instructions to prepare your MK-5005S for operation.
adjustable cutting Guide Installation
Diamond Blade Installation
MK-5005S aSSEMBlY
(A)
Position movable Cutting Table
(B)
Seat all four (4) Roller Wheels
on the Guide Rails
(C)
Verify correct seating of Roller
Wheels
(A)
Loosen the Thumbscrew. Align the
adjustable Cutting Guide above the
movable Cutting Table Ruler/Stop
(B)
Seat the adjustable Cutting
Guide and tighten the Thumb-
screw
(A)
Remove the Retaining Screw
and Outer Flange with the blade
wrench. Turn counter-clockwise
to loosen
aSSEMBlY
Movable cutting Table Installation
