Page 24

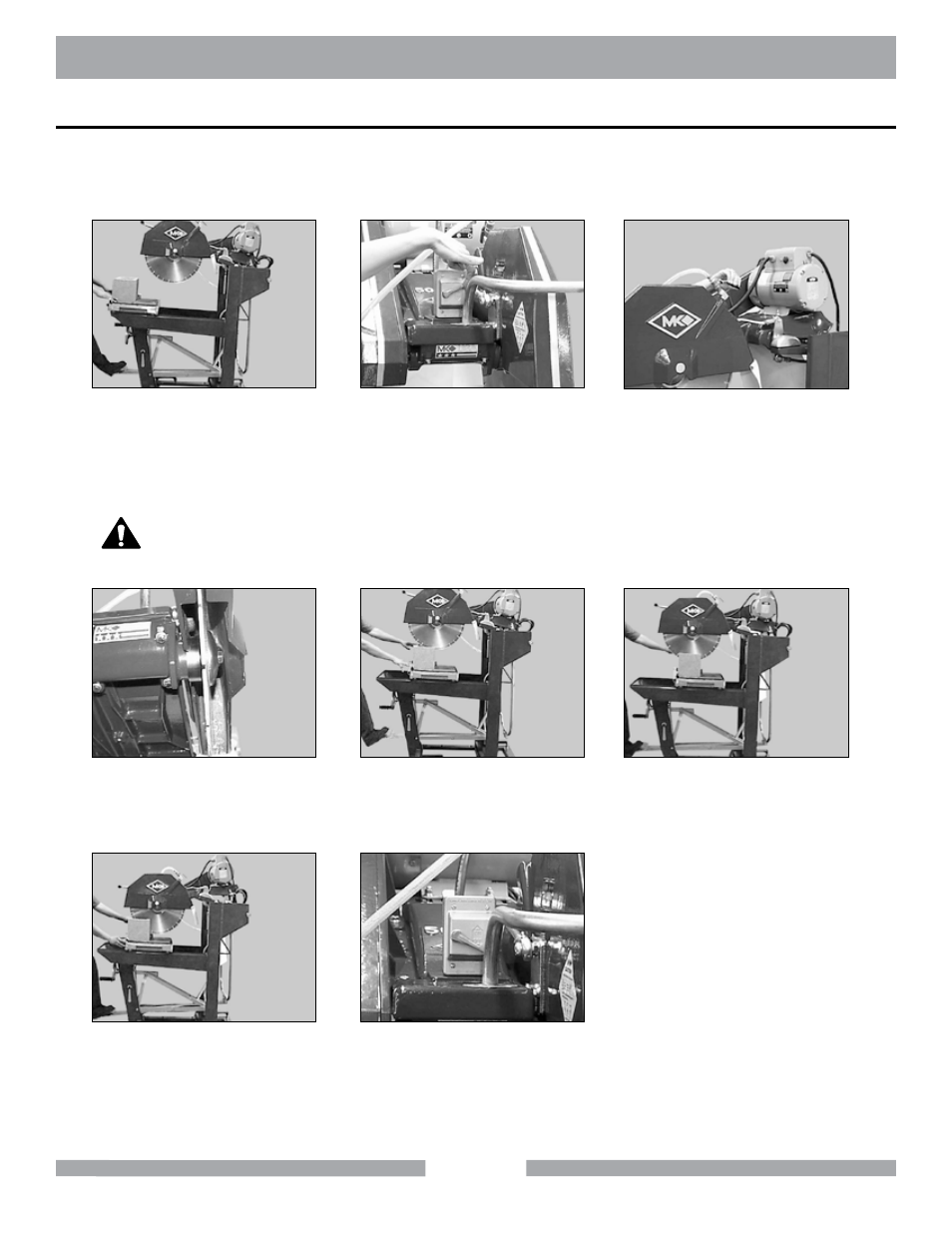

The Foot Peddle may be used to Step Cut, Chop Cut, cut with the Cutting Head Positioned Down,

or with the masonry piece positioned vertically. Using the Foot Peddle frees both of the operator’s

hands for holding the masonry piece. The following example utilizes the Step Cut method.

(H)

Turn the saw off when

work is complete

(D)

Verify proper cooling flow on

both sides of the blade

(A)

Position masonry piece

(Adjust the height of the Cutting

Head as necessary)

(C)

Open the Cooling Flow Con-

trol Valve and adjust flow

(B)

Turn the motor ON

(E)

Lower cutting head with Foot

Pedal 1/4” to 1/2”

(F)

Lower cutting head an ad-

ditional 1/4” to 1/2” with Foot

Pedal for “Pull” Stroke

(G)

Repeat Steps E and F

until cut is complete

cutting using the Foot Pedal

DO NOT FORCE TOOL, it will do the job better and safer at the rate for which

it was designed.

caUTIoN

MK-5005S

oPERaTIoN
