The protective Wooden Strip is to protect the movable Cutting Table from damage during operation.
Over time, the Wooden Strip will become grooved from use. A grooved Wooden Strip will not support
masonry during cutting causing the blade to “break through” the piece instead of performing a smooth
cut (MK Diamond Part No. – 157748).

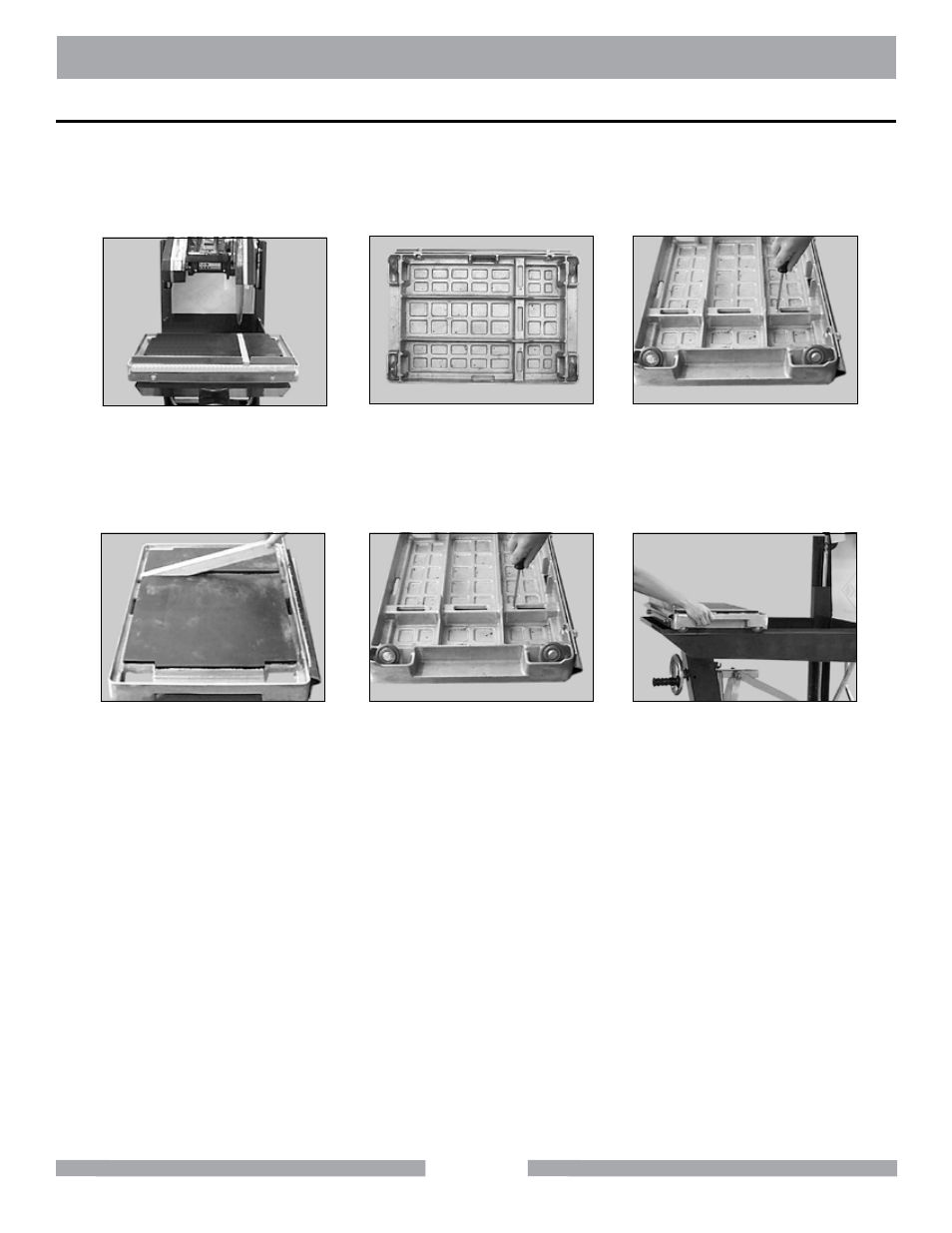

(A)
Inspect the Wooden Strip for
excessive wear and grooves
(B)
Place movable Cutting Table on
a work bench with the wheels up
(C)
Remove the two Protective
Wooden Strip retaining screws
(D)
Replace worn
Protective Wooden Strip
(E)
Place movable Cutting Table on
a work bench with the wheels
up, and reinstall retaining
screws
(F)
Install the movable Cutting Table
Protective wooden Strip Replacement
MK-5005S
TRoUBlESHooTING
