32

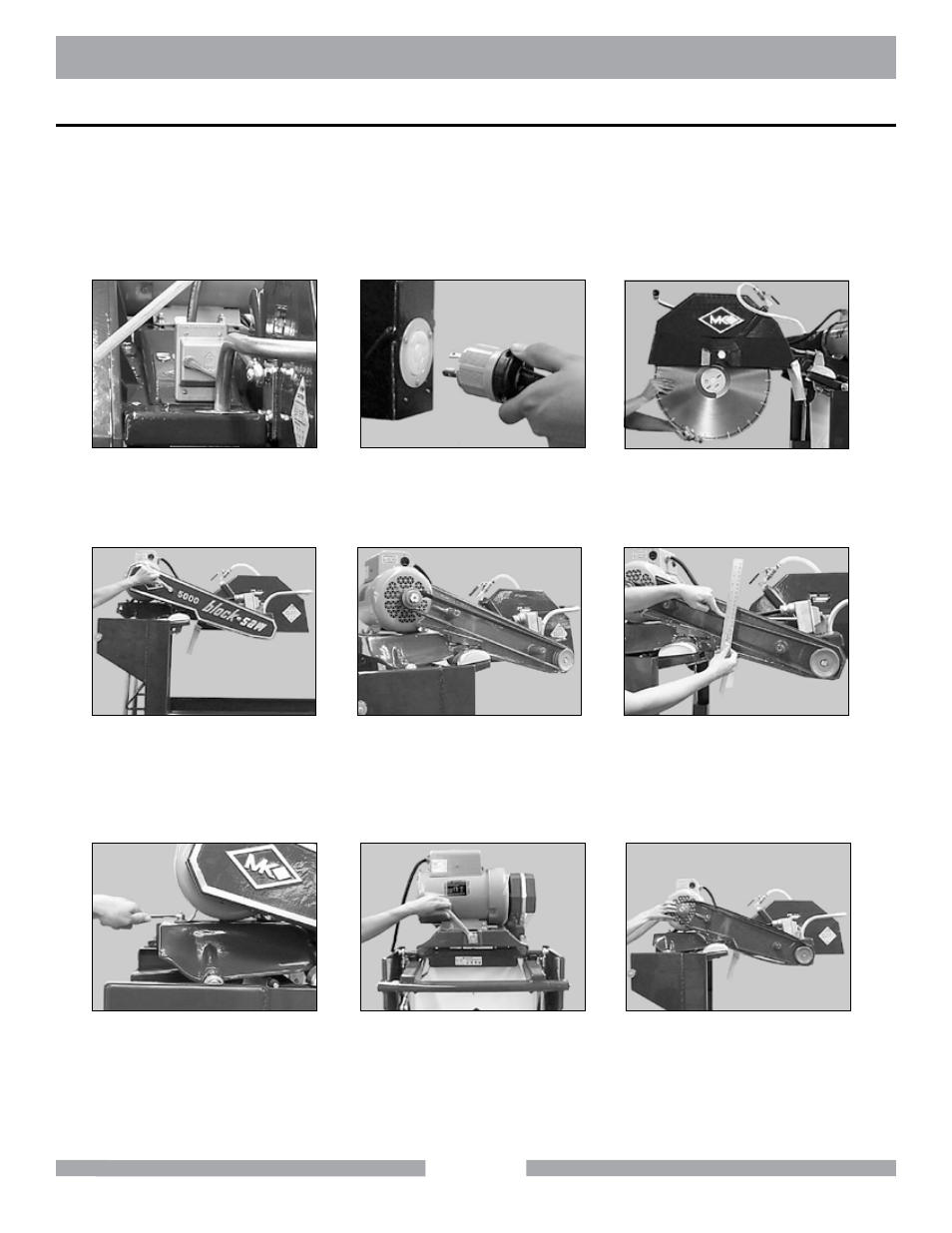

The MK-5005S is designed with a power transmission V-belt. In order to ensure the MK-5005S oper-
ates at peak efficiency, the V-belt should be inspected monthly, and changed if the V-belt shows dam-
age and/or excessive wear.
(A)
Ensure the ON/OFF switch
is in the OFF position
(B)
Unplug MK-5005S from the
power source
(C)
Remove the Diamond Blade
(D)
Remove the Belt Guard
(E)
Inspect the V-belt for cracks,
fraying, separation and wear. Go
to step G if replacement required
(F)
Check belt for proper tension
if tension is correct, go to Step R
(proper tension 1/4”)
(G)
Loosen motor mounting bolts
If re-tensioning only, go to Step
N
(H)
Loosen the Motor Adjustment
Strap
(I)
Push the motor toward the
front of the Cutting Head to
loosen the V-belt
V-Belt Inspection, adjustment and Replacement
When a new belt is installed, it should be inspected and re-tensioned after the first
forty-eight (48) hours of operation.
NoTE:
MK-5005S TRoUBlESHooTING
