Use standard grease when lubricating the MK-5005S. Clean the Zerk Fittinge when finished lubricat-
ing. Apply grease slowly; stop when grease is seen between joints.

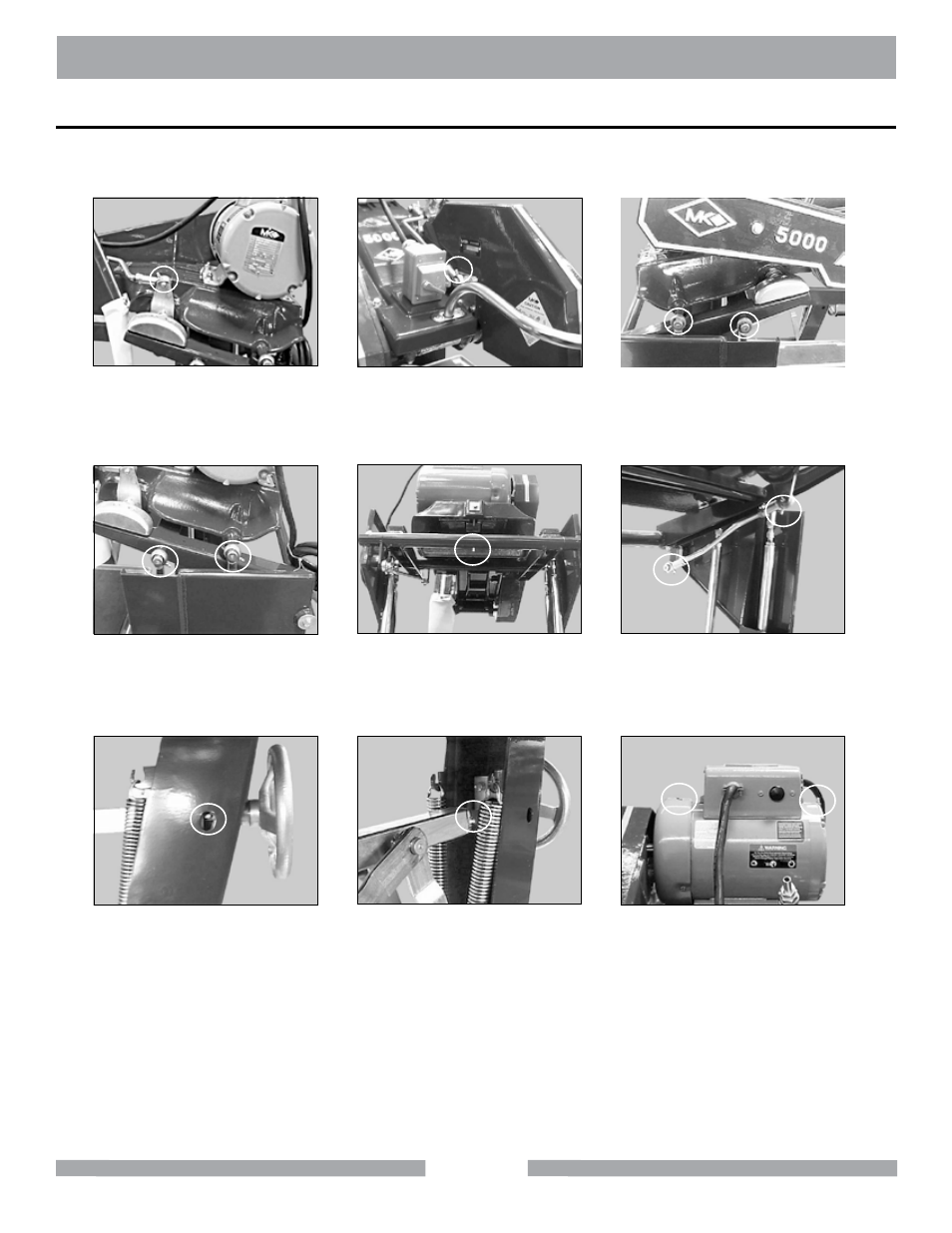

(A)
Rear Blade Guard Stay-level
pivot point, lubrication point
(B)
Front Blade Guard Stay-level
pivot point, lubrication point
(C)
Front and Rear Connecting
Arms, left side (from front), lubri-
cation points
(D)
Front and Rear Connecting
Arms, right side (from front),
lubrication points
(E)
Elevation Pivot Bracket, Pivot
Shaft Housing, lubrication point
(F)
Cutting Head Rear Connecting
Arm, lubrication point
(G)
Crank Wheel Assembly Bear-
ing, lubrication point
(H)
Depth Control Screw Housing,
lubrication point
(I)
Motor Bearing lubrication points
MK-5005S lubrication Points
