P
anel
o
verview

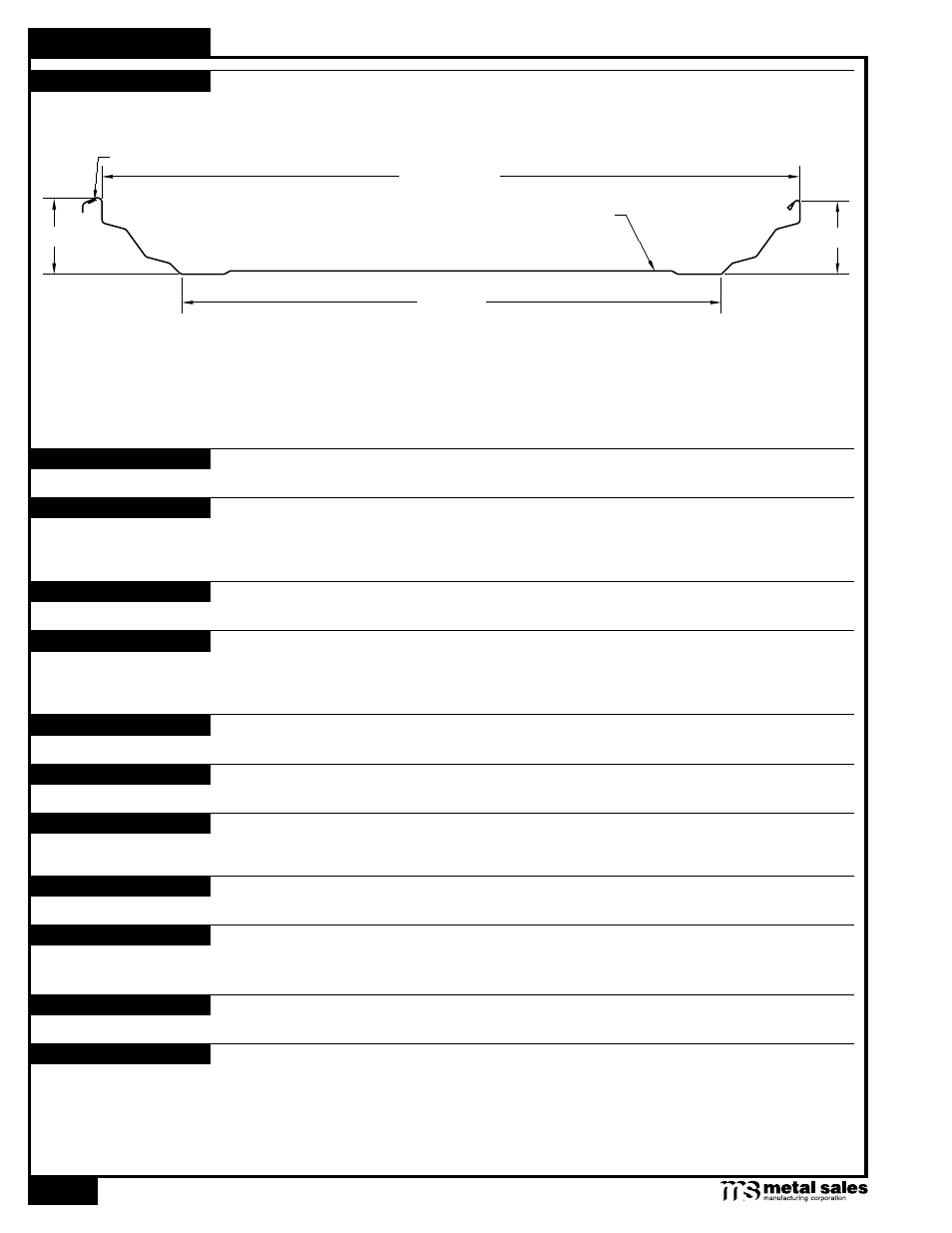

PANEL PROFILE
SLOPE
SUBSTRATE
COVERAGE
LENGTH
AVAILABILITY
APPLICATION
FASTENING SYSTEM
FASTENERS
MATERIALS
FINISH
The minimum recommended slope for any Seam-Loc 24 roofing panel is 1 /
4
:12.
Seam-Loc 24 is designed to be utilized over open structural framing, but can easily be used with a solid
substrate. The recommended solid substrate is 5 /
8
" plywood with a 30 pound felt moisture barrier. To avoid
panel distortion, use a properly aligned and uniform substructure.
Seam-Loc 24 panels are available in a 24" width with a 2 11 /
16
" rib height.
Lengths under 5'-0" are available with some cutting restrictions. Maximum recommended panel length is 45'-0".
Longer panels require additional consideration in packaging, shipping, and erection. Please consult your Metal
Sales branch for recommendations (see PGI-2 and PGI-3 for locations).
Seam-Loc 24 panels are available in 24 and 22 gauge. Minimum quantity may apply.
Commercial and Industrial panel.
Concealed Clip System.
The fastener selection guide should be consulted for choosing proper fasteners for specific applications.
Quantity and type of fastener must meet necessary loading and code requirements (see PGI-12-14).
Steel grade 50, per ASTM A-792
24" Coverage
Factory Applied Sealant
C
2 11 /
16
" 2 5 /
8
"
18 1 /
2
"
PERFORMANCE TEST
UL 580, ASTM E-1592, ASTM E-331, ASTM E-283, UL 2218, UL 790, UL 263, Texas Department of
Insurance.
 * Acrylic Coated Galvalume ® (ACG) / ASTM A-792 - AZ55
 Prepainted Galvalume / ASTM A-792 - AZ50
 ** Fluorocarbon (PVDF)
* Differential appearance of Acrylic Coated Galvalume roofing materials is not a cause for rejection.
** Meets both Kynar 500 and Hylar 5000 specifications.
