Mechancal installation
Connection of external lubricant unit
4
20 BA 33.0003 EN 1.0
4.3 Connection of external lubricant unit
A
C
B
MDXLSBS056-002/1.0/C

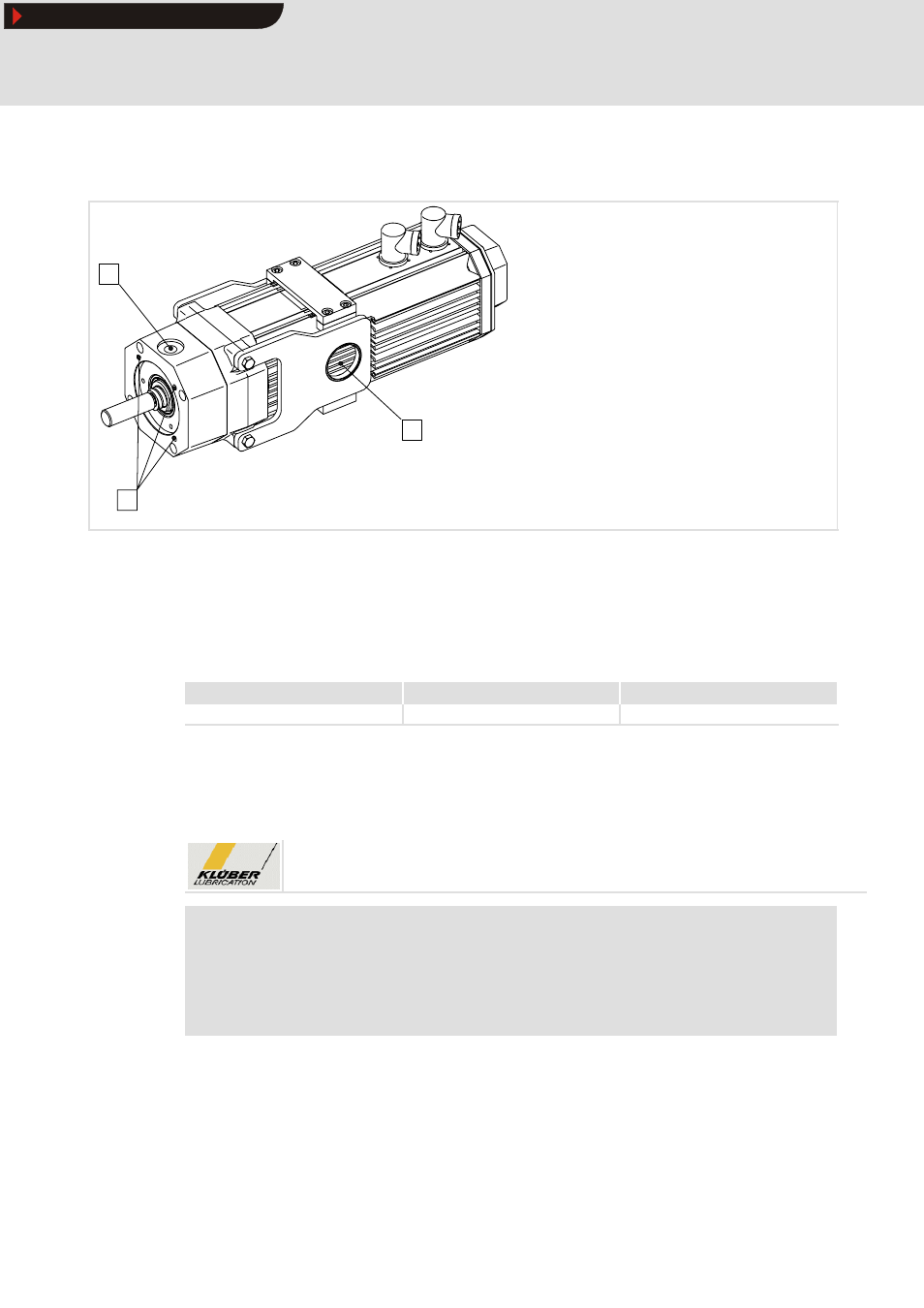

Fig. 1 MDSLSBS056
Connection of grease unit via grease nipple
– Grease nipple connection: pipe thread ISO228-G 1/4”; thread depth 12 mm
Pin support ø35 mm
Threaded holes for B14 design
Lenze recommends the lubrication units from the following manufacturers, among
others:
Manufacturer Type Design
Perma-tec GmbH, Euersdorf perma - STAR Vario or Control
or
similar systems with a grease delivery rate of 2 cm 3 / month.
The servo spindle motors from Lenze are operational at delivery and filled with a
drive-specific lubricant filling. This initial filling uses the lubricant:
Stabutherm GH 461
Stop!
ƒ If another grease must be used, the grease compatibility must be ensured!
ƒ The grease channel must be filled with lubricant from the permanent
lubricating equipment to the inside of the motor! If necessary, before
extracting.
