3 motor connection, 1 lenze standard power terminal, 2 lenze standard resolver connection – Lenze MDSLS Servo spindle motor User Manual

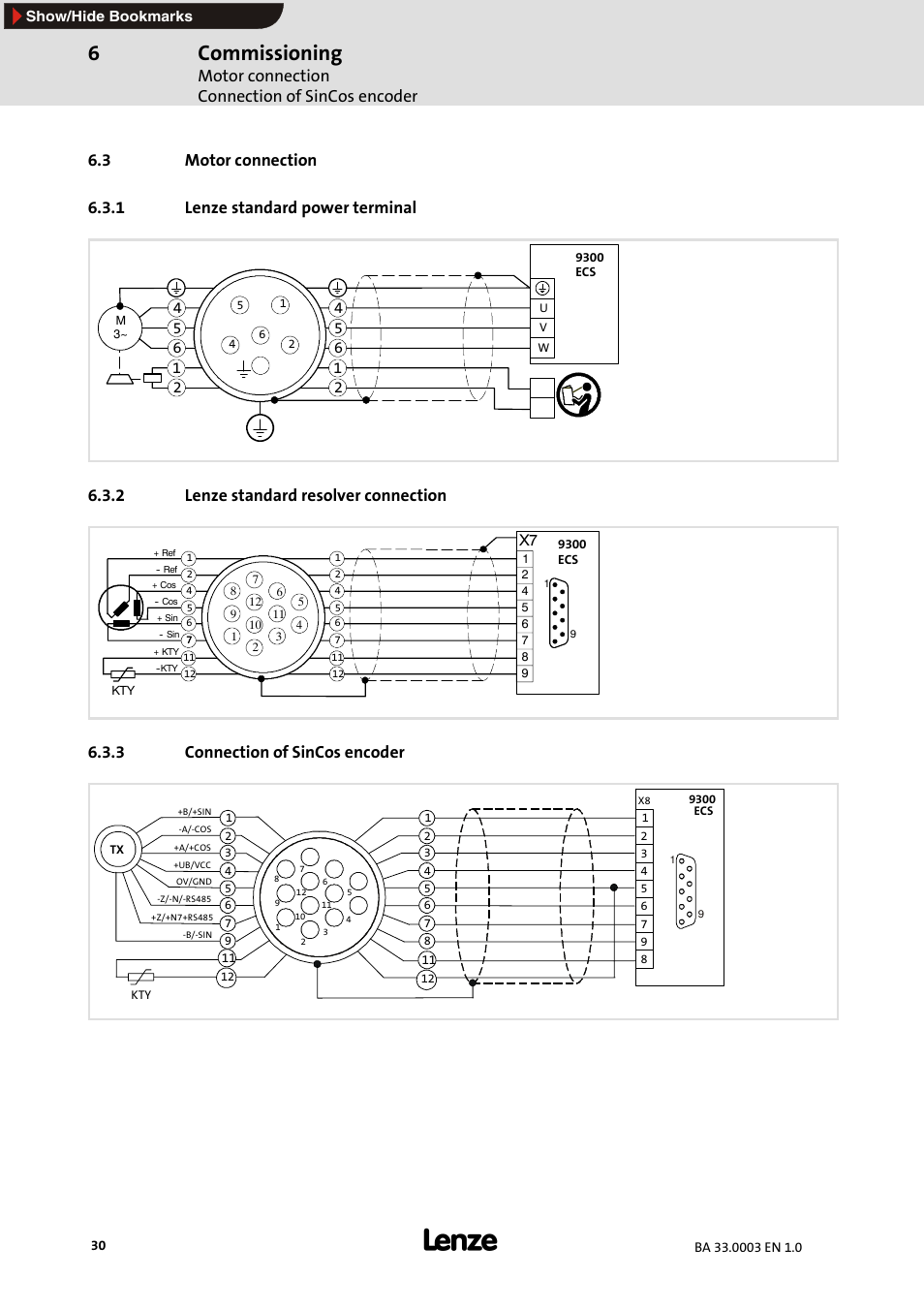

Page 30: 3 connection of sincos encoder, Lenze standard power terminal, Lenze standard resolver connection, Connection of sincos encoder, Commissioning, Motor connection connection of sincos encoder

3 motor connection, 1 lenze standard power terminal, 2 lenze standard resolver connection | 3 connection of sincos encoder, Lenze standard power terminal, Lenze standard resolver connection, Connection of sincos encoder, Commissioning, Motor connection connection of sincos encoder | Lenze MDSLS Servo spindle motor User Manual | Page 30 / 40 3 motor connection, 1 lenze standard power terminal, 2 lenze standard resolver connection | 3 connection of sincos encoder, Lenze standard power terminal, Lenze standard resolver connection, Connection of sincos encoder, Commissioning, Motor connection connection of sincos encoder | Lenze MDSLS Servo spindle motor User Manual | Page 30 / 40
