E94AYCEN communication manual (Ethernet)
Commissioning
Configuring the communication module
6.2 Configuring the communication module

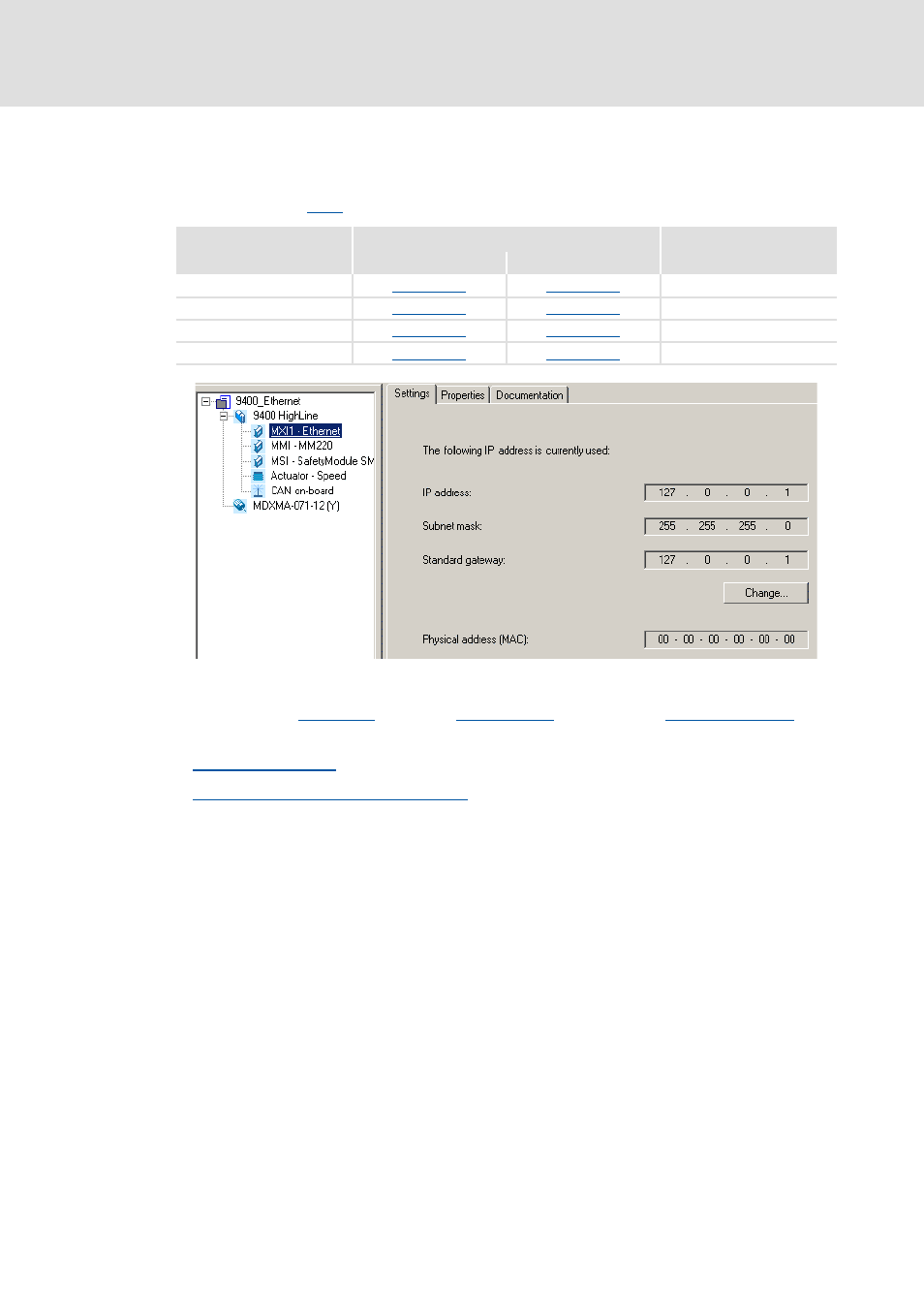

The address settings required for Ethernet operation are displayed in the »Engineer« in the
Settings tab (Fig. [6-1] ). The settings correspond to the values of the codes:
[6-1] Ethernet address settings
You can set the IP address
( 31)
, the Subnet mask
( 31)
and the Gateway address
( 32)
manually, but the IP address can also be received automatically from a DHCP server.
Setting the address
( 28)
Automatically receiving an IP address
( 29)
Parameter Code Lenze setting
for slot MXI1 for slot MXI2
IP address C13000/1...4 C14000/1...4 127.0.0.1
Subnet mask C13001/1...4 C14001/1...4 255.255.255.0
Standard gateway C13002/1...4 C14002/1...4 127.0.0.1
Physical address (MAC) C13003/1...6 C14003/1...6 00-00-00-00-00-00
