E94AYCEN communication manual (Ethernet)
Product description
Product features
14
L
EDS94AYCEN EN 9.0 - 09/2012
3.3
Product features
Interface module for the Ethernet communication system, for attaching to the
expansion slots of the Servo Drives 9400
2-port interface with integrated switch functionality
Automatic setting of baud rate and transmission mode (auto-negotiation)
Automatic detection of wiring errors and polarity reversal of data signals (auto-
polarity)
Automatic detection and (internal) swapping of data signals from receive paths and
transmit paths (auto-crossing)
Access to all Lenze parameters via the Lenze »Engineer«
3.4
Terminals and interfaces
2 RJ45 sockets for Ethernet connection
Front LEDs for diagnosing the ...
– Voltage supply of the communication module
– Connection to the standard device
– Ethernet connection
– Ethernet activity

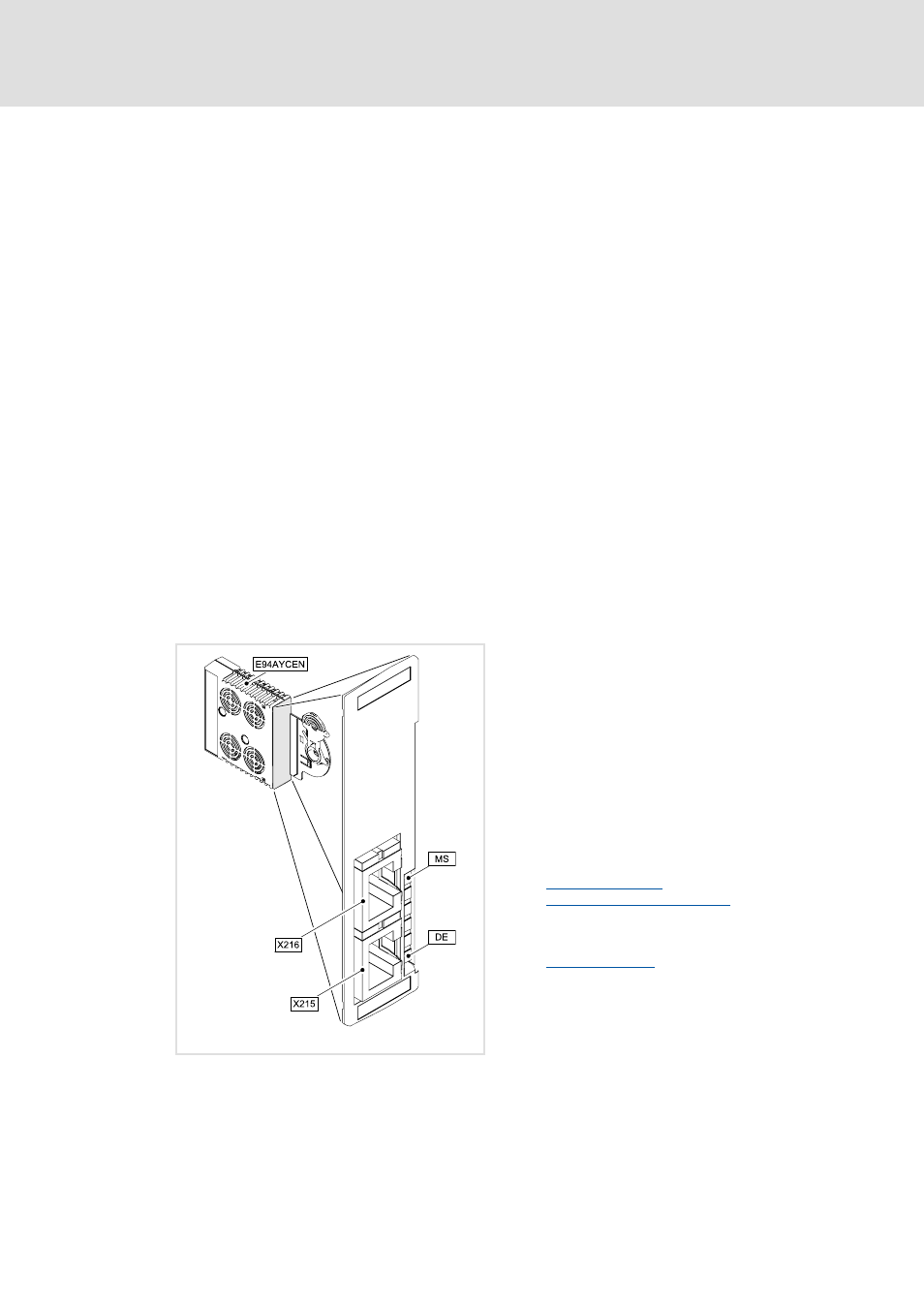

[3-2]
Communication module E94AYCEN (Ethernet)
E94YCEN001A
X215
X216
Ethernet connections
• RJ45 sockets
• Each with 2 LED status displays for diagnostics
Status display at X215 and X216 ( 52)
MS
DE
2 LED status displays for diagnostics
