8 Diagnostics

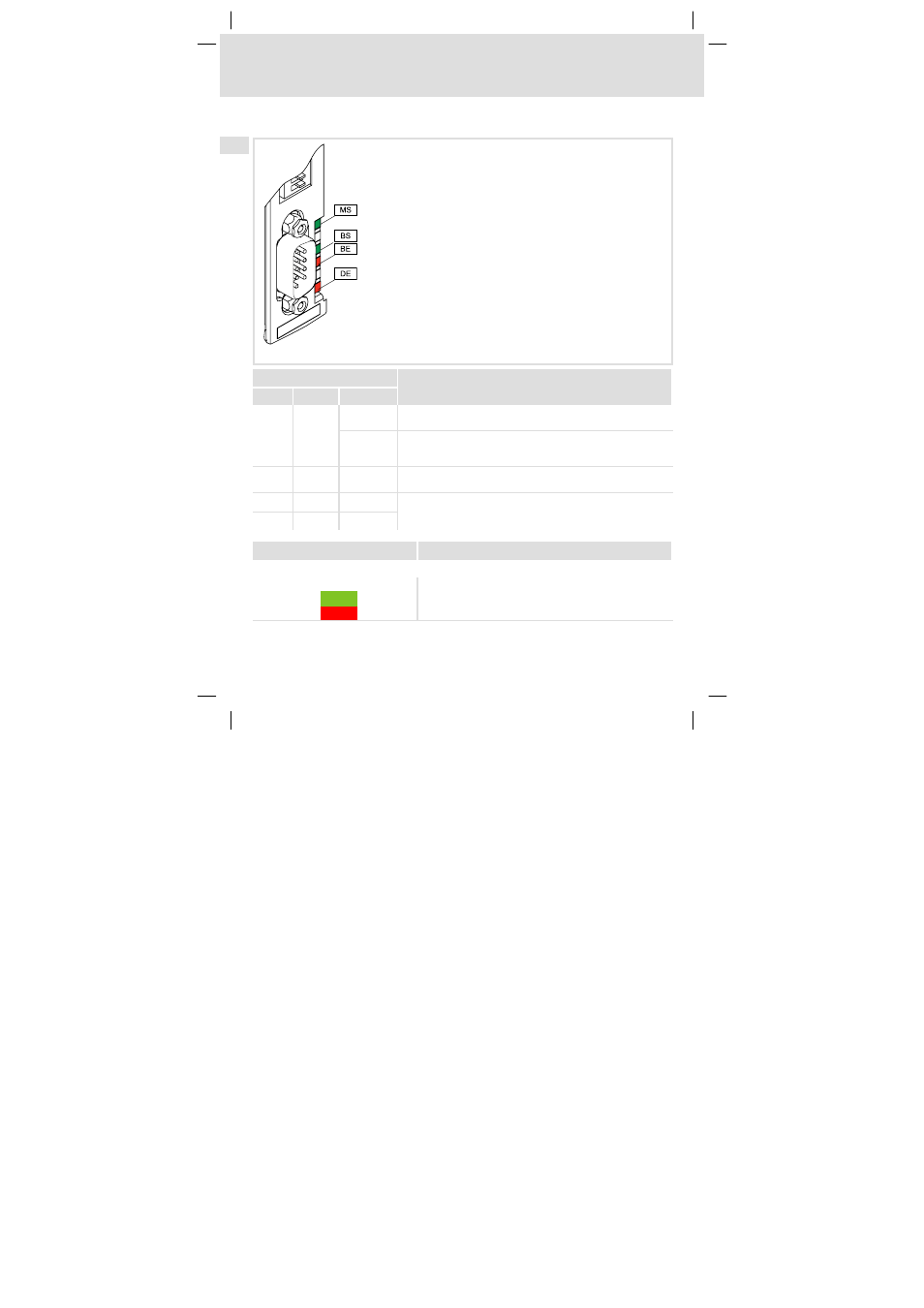

LED status displays
EDK94AYCCA DE/EN/FR/ES/IT 3.0
46
l
H1_Diagnose−Signalisierung DR303
8 Diagnostics
LED status displays
E94YCCA001D
LED
Description Pos. Colour Condition
MS green On The communication module is supplied with voltage and
connected to the standard device.
blinking The communication module is supplied with voltage but not
connected to the standard device. (The standard device is either
switched off, in the initialisation phase or not available.)
DE red On The communication module is not accepted by the standard
device.
BS green The table below lists the signalling of the BS and BE bus LEDs.
The control of the LEDs complies with CiA specification DR−303−3.
BE red
Status display (LED) Explanation
Connection status to the bus with the following signalling:
off No connection to the master
green CANopen status (" S ")
red CANopen fault (" F ")
