Commissioning
Possible settings via DIP switch
7
EDK94AYCCA DE/EN/FR/ES/IT 3.0
43
l
H1inbet−bevor
7 Commissioning
Possible settings via DIP switch
Baud CAN Address
O
N c d b a 64 32 16 8 4 2 1
S220
9400CAN003

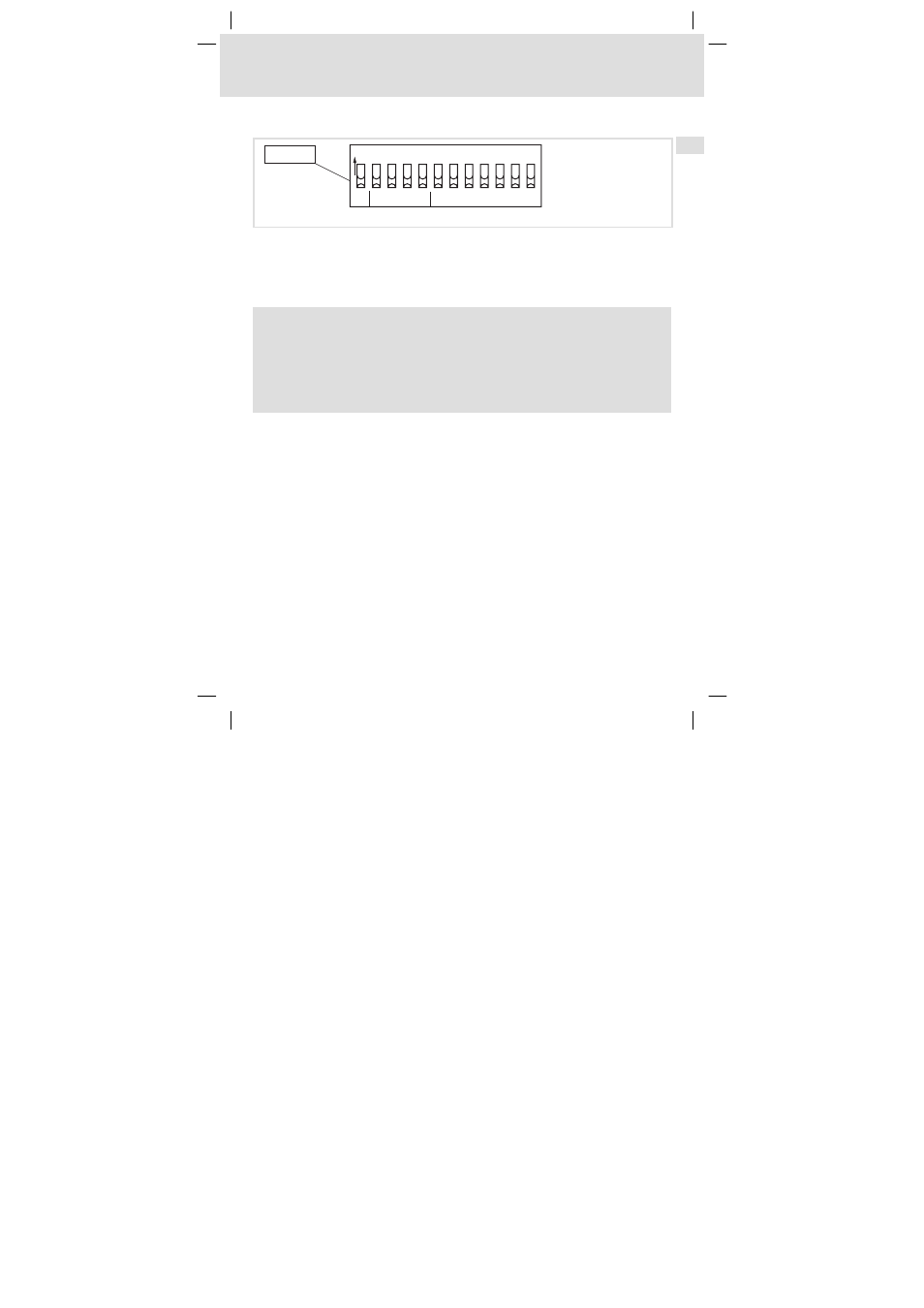

Fig. 1 Arrangement and labelling of the DIP switches
Via the DIP switches on the front, you can set:
ƒ the node address (labelling "1" ... "64") and
ƒ baud rate (labelling "a" ... "d")
)
Note!
If DIP switches 1 ... 64 = OFF ("Lenze setting"): When the standard device is
switched on, the parameterisation of codes C00350 (node address) and
C00351 (baud rate) is activated.
Switch the voltage supply of the standard device off and then on again to
activate altered settings.
Setting the node address
The node address of the drive is calculated from the sum of all address switches in the "ON"
position.
